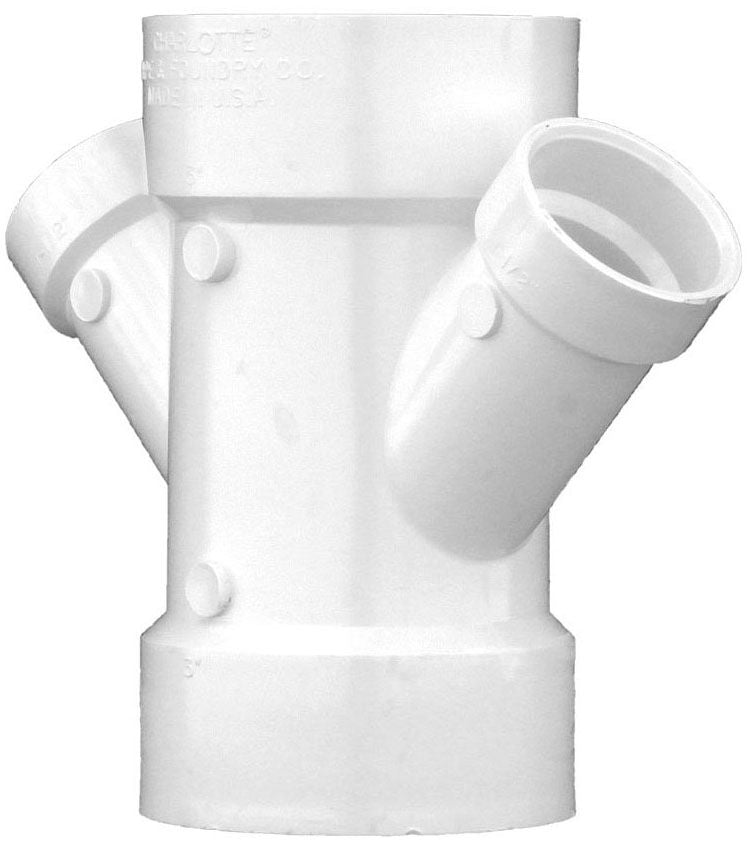

Charlotte Pipe pvc-612-6x6x4x4 Pvc Dwv Double Wye

Product Description

The CHARLOTTE PIPE pvc-612-6x6x4x4 is a PVC double wye fitting designed for drain, waste, and vent (DWV) applications in gravity-fed waste elimination systems. Built for non-pressure service, this fitting handles temperatures up to 140 degrees F and accepts solvent cement joining for a secure, leak-resistant connection. The lightweight PVC construction reduces handling fatigue during installation and does not require specialized cutting tools. Licensed plumbers and pipe fitters install this fitting in residential and commercial drain lines where a double branch outlet is needed to split or combine waste flow at a single hub location.

This double wye is suited for residential and light commercial plumbing rough-in work, specifically in DWV piping systems where two branch lines must connect to a common run. The 6x6x4x4 configuration accommodates a 6-inch main run with dual 4-inch branch outlets, making it appropriate for high-volume drain stacks, sanitary tee applications, and branch drain manifold configurations. Installation methods supported include solvent cementing, threading, flanging, and roll-grooved joining, giving installers flexibility across different project requirements. Manufactured in the USA.

Key Features

• Double wye configuration with 6-inch main ports and dual 4-inch branch outlets
• Rated for non-pressure DWV service up to 140 degrees F
• Supports solvent cementing, threading, flanging, and roll-grooved joining methods
• Lightweight PVC construction for easy handling and installation
• Slip-on plumbing connection type for straightforward fitting assembly
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement and new-installation fitting for PVC DWV piping systems operating under non-pressure, gravity-fed drain, waste, and vent conditions.

Installation Notes

This fitting is installed by licensed plumbers in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off water supply and ensure the drain system is depressurized and drained before beginning work. Use a PVC-rated solvent cement and primer when making solvent-welded joints, and allow full cure time before restoring flow. Do not use this fitting in pressurized supply lines or applications exceeding its rated service temperature.

Technical Specifications

• Fitting Type: Double Wye
• Material: PVC
• Application: Drain, Waste, and Vent (DWV)
• Service Type: Non-pressure, gravity-fed
• Maximum Temperature: 140 degrees F
• Connection Type: Slip-On
• Joining Methods: Solvent cementing, threading, flanging, roll-grooved
• Country of Origin: USA

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: pvc-612-6x6x4x4
