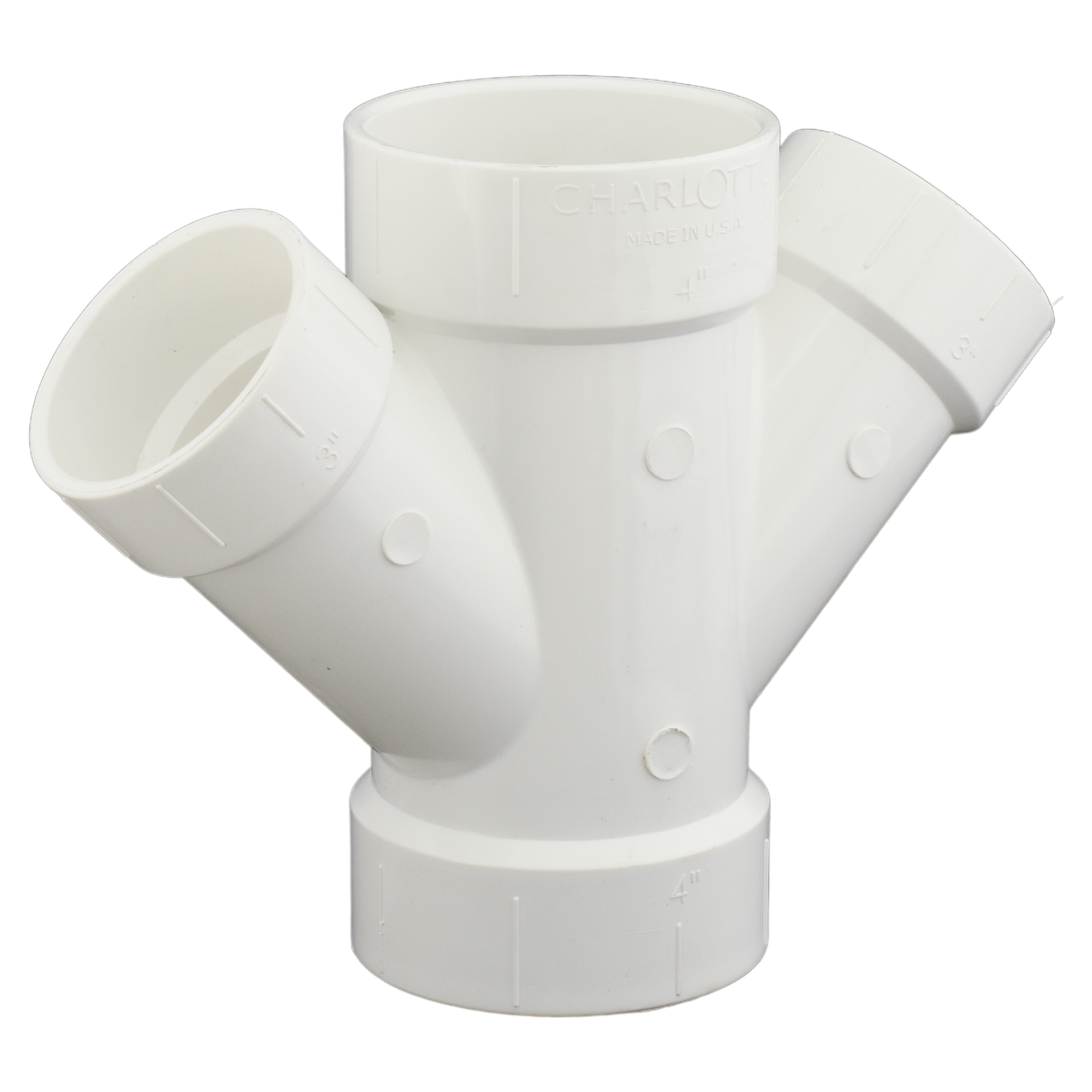

Charlotte Pipe PVC-612-4X4X3X3 Pvc Dwv Double Wye Fitting

Product Description

The CHARLOTTE PIPE PVC-612-4X4X3X3 is a reducing double wye fitting designed for PVC drain, waste, and vent (DWV) systems. It provides two branch outlets and is sized for a 4-inch by 4-inch main run with 3-inch by 3-inch branch connections. This fitting is intended for non-pressure, gravity-fed waste elimination systems where operating temperatures will not exceed 140 degrees F. It is installed by licensed plumbers during new construction and remodel work on residential and light commercial drain systems.

This double wye reducing fitting is suited for residential and light commercial plumbing applications where a single hub location must accept two branch drain lines of a smaller diameter. The fitting joins 4-inch DWV pipe on the main run to two 3-inch branch lines, making it a practical solution for stack configurations that serve multiple fixtures at a single elevation. Charlotte Pipe manufactures this fitting in the USA.

Key Features

• Reducing double wye configuration — 4 inches x 4 inches main run, 3 inches x 3 inches branch outlets
• Rated for non-pressure DWV service; not for pressurized water supply lines
• Maximum service temperature of 140 degrees F
• Compatible with solvent cement, threaded, flanged, and roll-grooved joining methods
• Lightweight PVC construction requires no special cutting tools
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement and new-installation fitting for residential and light commercial PVC DWV drain, waste, and vent piping systems using 4-inch and 3-inch schedule DWV pipe.

Installation Notes

Installation is performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off the water supply and verify the system is depressurized before cutting into any existing drain line. When using solvent cement joining, follow manufacturer primer and cement application instructions and allow adequate cure time before flowing waste through the fitting. This fitting is not rated for pressure service and must not be used on supply or pressurized lines.

Technical Specifications

• Main Run Size: 4 inches x 4 inches
• Branch Size: 3 inches x 3 inches
• Fitting Type: Double Wye Reducing
• System Type: DWV (Drain, Waste, Vent) — non-pressure gravity-fed
• Maximum Temperature: 140 degrees F
• Material: PVC
• Joining Methods: Solvent cement, threaded, flanged, roll-grooved
• Country of Origin: USA
• UPC: 611942036479

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-612-4X4X3X3
