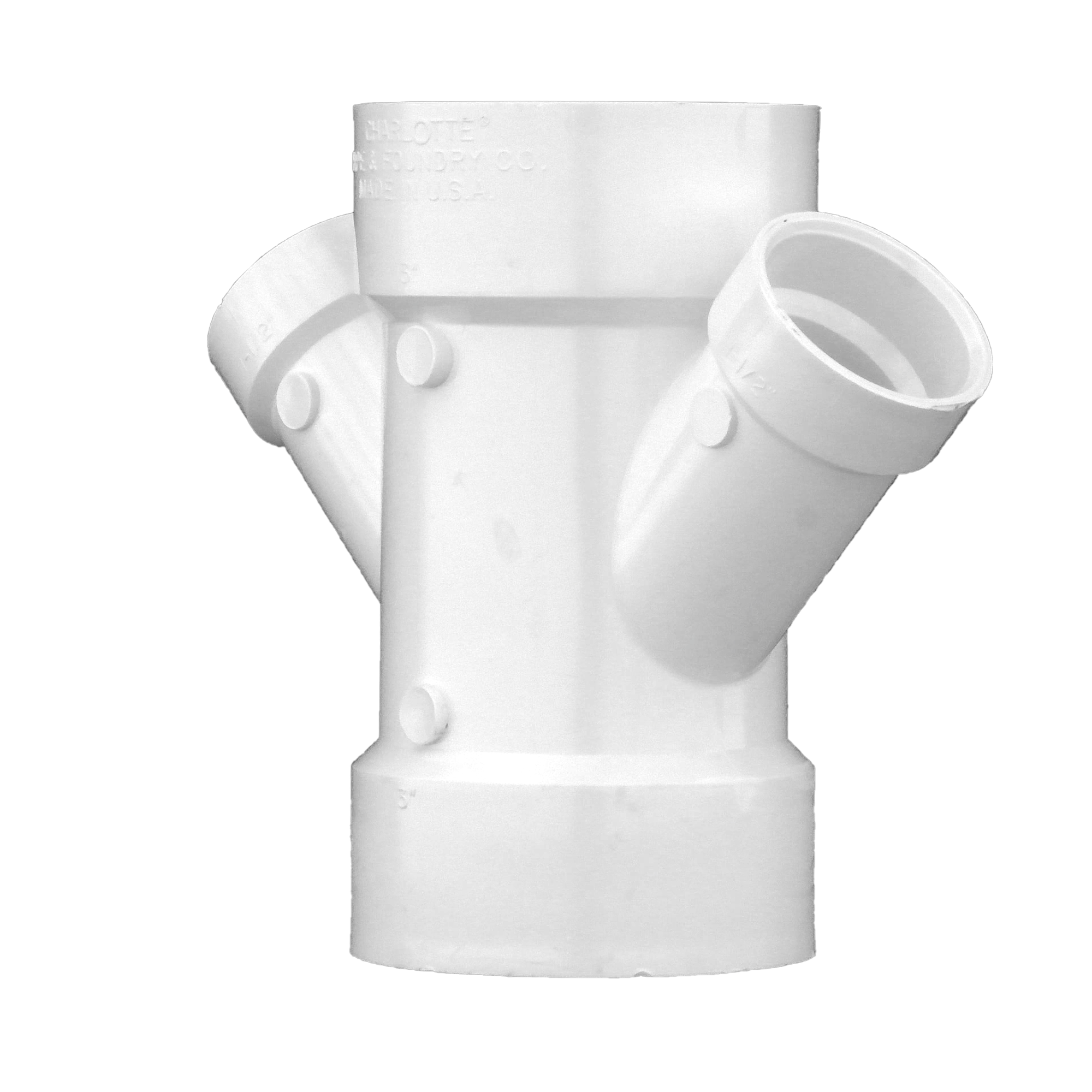

Charlotte Pipe PVC-612-3X3X1-1/2X1-1/2 Dwv Double Wye

Product Description

The CHARLOTTE PIPE PVC-612-3X3X1-1/2X1-1/2 is a PVC-DWV double wye reducing fitting designed for drain, waste, and vent applications in non-pressure, gravity-fed systems. It connects 3-inch main lines to 1-1/2-inch branch lines, allowing two branch takeoffs from a single run. Rated for systems where temperatures will not exceed 140 degrees F, this fitting suits residential and light commercial DWV rough-in work. Manufactured in the USA, it meets standard expectations for dimensional accuracy and material consistency. Installation requires no special cutting tools and accepts solvent cement joining, making it a straightforward choice for licensed plumbers working on DWV stacks and branch assemblies.

This fitting is used in residential and commercial gravity-fed waste elimination systems. It is appropriate for drain stacks, horizontal branch lines, and vent configurations where two reduced-diameter branches need to connect to a larger main line. Typical install scenarios include bathroom groups, laundry drains, and wet-vented fixture branches where a 3-inch stack accepts 1-1/2-inch fixture drains. The lightweight PVC construction simplifies handling and positioning during overhead or in-wall rough-in stages.

Key Features

• Double wye configuration allows two 1-1/2-inch branch connections off a single 3-inch run
• Rated for non-pressure DWV service up to 140 degrees F
• Compatible with solvent cement, threaded, flanged, and roll-grooved joining methods
• Lightweight PVC material simplifies handling and positioning during rough-in
• No special cutting tools required for field preparation
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement and standard-use fitting for residential and commercial PVC-DWV piping systems operating under gravity-flow, non-pressure conditions.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off water supply and verify the system is depressurized before cutting into an existing DWV line. Solvent cement joints require proper primer and cement application per manufacturer instructions and must cure fully before the system is returned to service. Inspect all joints for full socket seating before covering or concealing the installation.

Technical Specifications

• Fitting Type: Double Wye Reducing
• Material: PVC
• Application: DWV (Drain, Waste, Vent) non-pressure systems
• Main Line Size: 3 inches
• Branch Size: 1-1/2 inches
• Max Temperature: 140 degrees F
• Joining Method: Solvent cement, threaded, flanged, roll-grooved
• Country of Origin: USA
• UPC: 611942036448

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-612-3X3X1-1/2X1-1/2
