Charlotte Pipe PVC-611-4IN 4 Inch Pvc Dwv Double Wye

Product Description

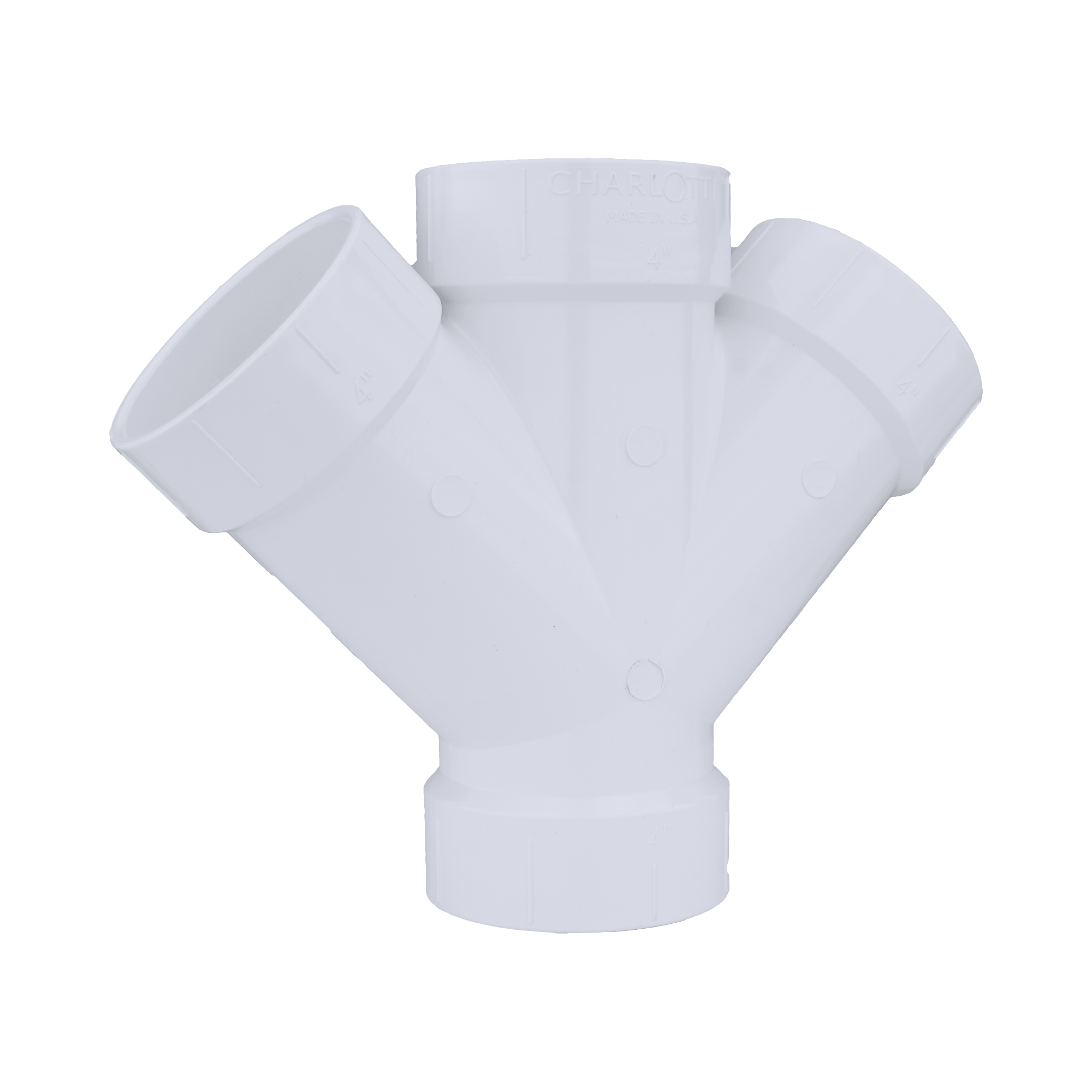

The CHARLOTTE PIPE PVC-611-4IN is a 4-inch PVC double wye fitting designed for drain, waste, and vent (DWV) applications. It connects into gravity-fed waste elimination systems and is rated for non-pressure service at temperatures not exceeding 140 degrees F. The double wye configuration allows two branch lines to tie into a single run, making it a common choice in residential and light commercial drain rough-in work. PVC construction keeps the fitting lightweight, and no special cutting tools are required. Installation is completed with solvent cement, threading, flanging, or roll-grooved joining methods.

This fitting is intended for DWV piping systems in residential and commercial construction. Plumbers reach for it during new construction and remodel work when combining two drain branches into a main line. Typical applications include kitchen drain tie-ins, laundry standpipe connections, and multi-fixture bathroom rough-in assemblies. Because this is a non-pressure fitting, it is not suitable for supply-side or pressurized water distribution piping. Manufactured in the USA by Charlotte Pipe.

Key Features

• Double wye body accepts two branch lines entering the main run in a single fitting
• 4-inch nominal size fits standard DWV drain and vent piping
• Rated for non-pressure drain, waste, and vent service only
• Maximum service temperature of 140 degrees F
• Compatible with solvent cement, threaded, flanged, and roll-grooved joining methods
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 4-inch PVC DWV piping systems used in residential and commercial gravity-fed drain, waste, and vent applications.

Installation Notes

Installation is performed by licensed plumbers in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off and drain the affected drain section before cutting into an existing line. When solvent cementing, apply an approved PVC primer followed by PVC DWV-rated cement and maintain joint position for the manufacturer-recommended cure time. Do not use this fitting in pressurized water supply systems or above the rated temperature limit.

Technical Specifications

• Pipe Size: 4 inches
• Fitting Type: Double Wye
• Material: PVC
• System Type: Drain, Waste and Vent (DWV)
• Pressure Rating: Non-pressure
• Maximum Temperature: 140 degrees F
• UPC: 611942036400
• Country of Origin: USA

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-611-4IN
