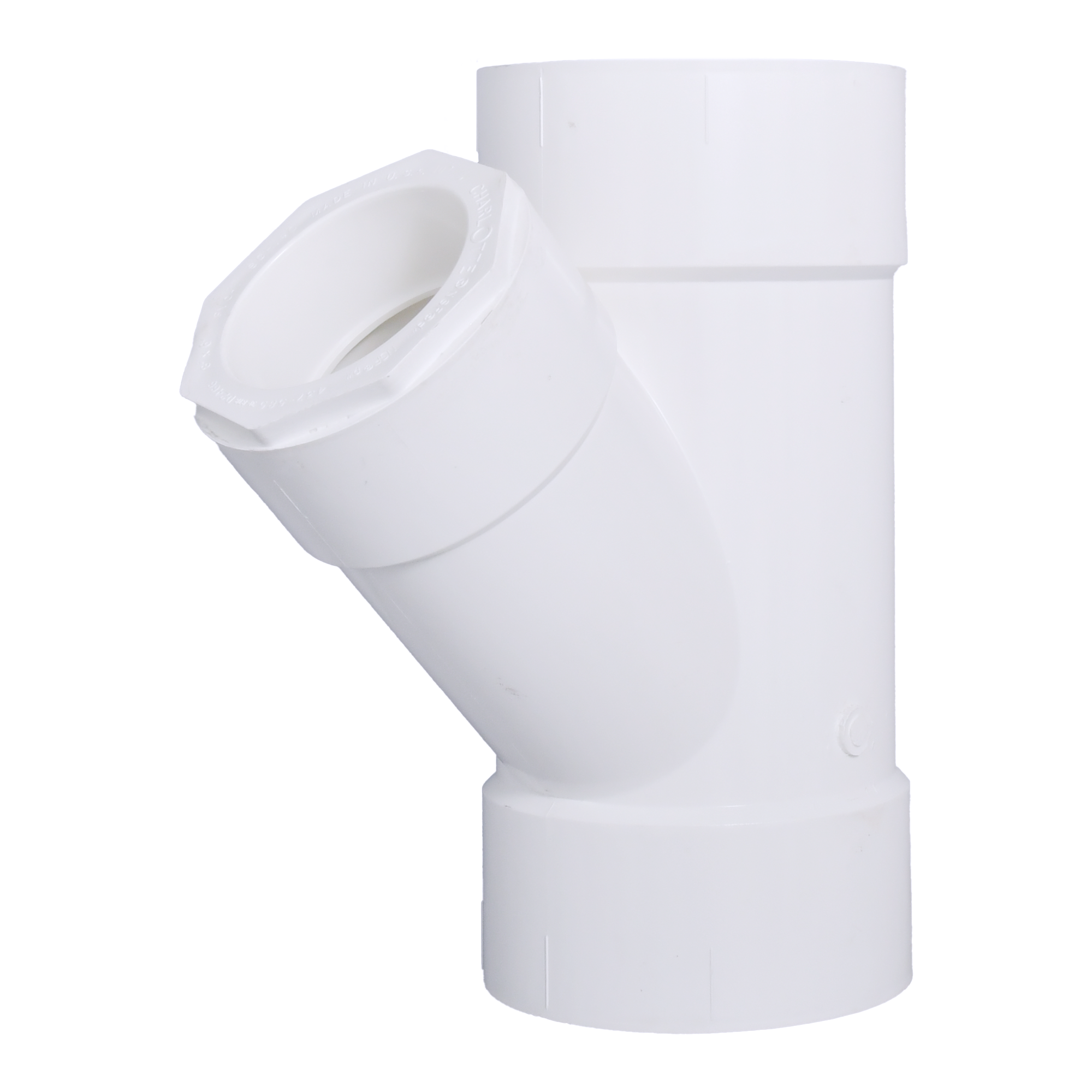

Charlotte Pipe PVC-601-12X12X6 Pvc Dwv Reducing Wye

Product Description

The CHARLOTTE PIPE PVC-601-12X12X6 is a reducing wye fitting designed for drain, waste, and vent (DWV) applications in non-pressure, gravity-fed waste elimination systems. This fitting connects a 6-inch branch line into a 12-inch main run, making it a common choice for trunk-line transitions in residential and commercial drain systems. PVC construction keeps the fitting lightweight and resistant to corrosion. Rated for use in systems where temperatures do not exceed 140 degrees F, this wye is compatible with standard solvent cement joining methods used throughout the trade.

This fitting is intended for DWV piping systems installed in residential and commercial construction. Plumbers use it when transitioning from a larger main drain line to a smaller branch line, particularly in horizontal drain runs where a wye configuration is required by code. It is not rated for pressure service. The fitting is manufactured in the USA by Charlotte Pipe, a manufacturer recognized in the plumbing trade for PVC and cast iron drain products.

Key Features

• Reducing wye configuration: 12-inch by 12-inch by 6-inch for branch-to-main transitions
• PVC material keeps weight low and simplifies handling during rough-in
• Compatible with solvent cement, threading, flanging, and roll-grooved joining methods
• Rated for non-pressure DWV service up to 140 degrees F
• No special cutting tools required for installation
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement and new-construction fitting for PVC DWV piping systems conforming to ASTM D3034 and applicable drain, waste, and vent standards in residential and commercial applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off water supply and ensure the drain system is depressurized and clear before cutting into an existing line. Solvent cement joints require proper surface preparation including cleaning and priming per the cement manufacturer instructions. This fitting is not suitable for pressure piping, potable water supply lines, or systems exceeding 140 degrees F.

Technical Specifications

• Material: PVC
• Application: Drain, Waste, and Vent (DWV)
• System Type: Non-pressure, gravity-fed
• Maximum Temperature: 140 degrees F
• Inlet Size: 12 inches
• Run Size: 12 inches
• Branch Size: 6 inches
• Joining Method: Solvent cement, threading, flanging, roll-grooved
• Country of Origin: USA
• UPC: 611942102433

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-601-12X12X6
