Charlotte Pipe PVC-600-4IN 4 Inch Pvc Dwv Wye Fitting

Product Description

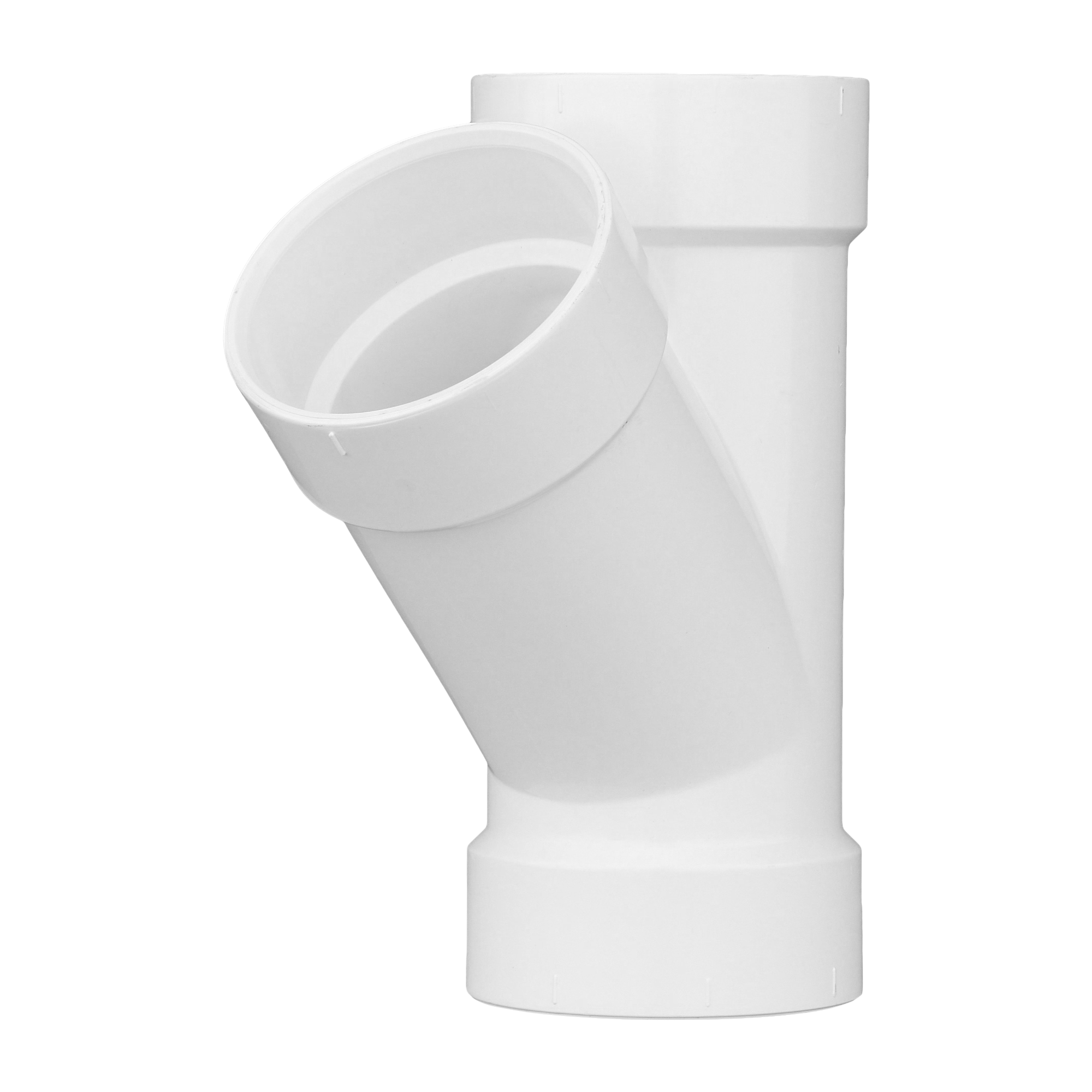

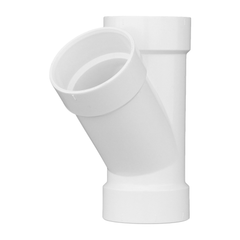

The CHARLOTTE PIPE PVC-600-4IN is a 4-inch PVC drain, waste, and vent (DWV) wye fitting designed for gravity-fed waste elimination systems. Built from lightweight PVC, this wye connects branch drain lines at an angle that promotes smooth flow and reduces turbulence in non-pressure drainage piping. It is rated for systems where temperatures will not exceed 140 degrees F. Licensed plumbers install this fitting in residential and light commercial DWV assemblies where a branch connection is required off a main drain stack or horizontal run.

This fitting is suited for non-pressure drain, waste, and vent applications in residential and commercial construction. It is used wherever a 4-inch branch tie-in is needed along a main drain line or at a stack base. Common install scenarios include bathroom group drain connections, floor drain branch lines, and main stack wye connections. Solvent cementing is the standard joining method, though threading, flanging, and roll-grooved joining are also compatible with this fitting type.

Key Features

• Rated for DWV non-pressure systems up to 140 degrees F
• Lightweight PVC construction simplifies handling and installation
• Compatible with solvent cementing, threading, flanging, and roll-grooved joining methods
• No special cutting tools required
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement and standard-use fitting for 4-inch PVC DWV piping systems in non-pressure drain, waste, and vent applications.

Installation Notes

Installation is performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and local amendments. Shut off water supply and verify the line is depressurized and drained before cutting into an existing system. Use an approved PVC solvent cement and primer when making solvent-welded joints, and allow full cure time before restoring flow. Inspect all joints for proper seating before concealing within walls or under slab.

Technical Specifications

• Pipe Size: 4 inches
• Material: PVC
• Application: Drain, Waste, and Vent (DWV)
• System Type: Non-pressure gravity-fed
• Maximum Temperature: 140 degrees F
• Country of Origin: USA
• UPC: 611942036103

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-600-4IN
