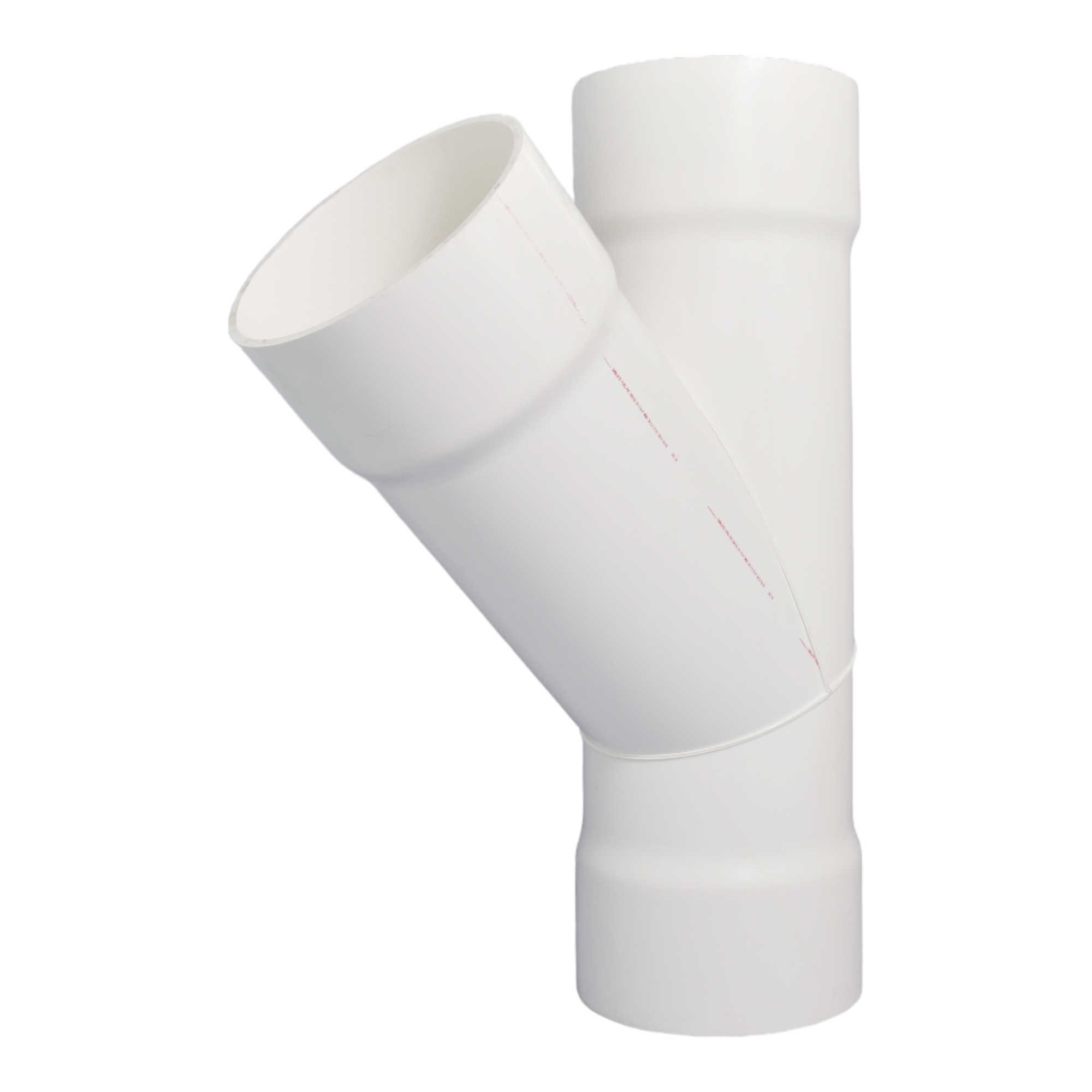

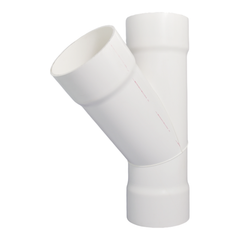

Charlotte Pipe PVC-600-16IN Pvc Dwv Wye Fitting 16 Inches

Product Description

The CHARLOTTE PIPE PVC-600-16IN is a 16-inch PVC Schedule 40 DWV wye fitting designed for drain, waste, and vent systems in large-scale plumbing installations. Built for solvent weld connections, this fabricated fitting provides a durable, leak-resistant branch junction in gravity-flow drainage piping. It conforms to ASTM F 1866 and carries NSF listing, meeting the standards required for commercial and residential DWV applications. Licensed plumbers and pipefitters specify Schedule 40 PVC wye fittings like this one where branch connections must handle high-volume drainage flow without restriction.

This fitting is suited for large-diameter DWV systems found in commercial buildings, multifamily residential construction, and industrial facilities. At 16 inches, it is typically installed in main drain lines or primary waste stacks where multiple lateral connections converge. Solvent weld assembly makes it appropriate for concealed or embedded installations where a permanent, rigid connection is required. Charlotte Pipe fabricates this fitting across a full range of PVC DWV sizes from 4 inches through 16 inches, making it part of a consistent, code-compliant product family.

Key Features

• PVC Schedule 40 construction rated for DWV drain, waste, and vent service
• Solvent weld socket connections for permanent, leak-resistant joints
• Meets ASTM F 1866 requirements for fabricated PVC DWV fittings
• NSF listed for drain, waste, and vent applications
• Manufactured in the USA by Charlotte Pipe

Compatibility

Designed as an OEM-style replacement and new-construction fitting for 16-inch PVC Schedule 40 DWV piping systems. Compatible with standard solvent weld PVC DWV pipe and fittings meeting ASTM D 2665 and related specifications.

Installation Notes

Installation must be performed by a licensed plumber in accordance with the latest Charlotte Pipe installation instructions and applicable local plumbing codes, including the International Plumbing Code. Shut off all flow and ensure the line is drained before cutting into an existing system. Use a approved PVC primer and solvent cement rated for Schedule 40 pipe and fittings, and allow full cure time before restoring flow. Do not apply heat or mechanical force to accelerate joint set.

Technical Specifications

• Material: PVC Schedule 40
• Connection Type: Solvent Weld Socket
• Fitting Type: Wye (DWV)
• Pipe Size: 16 inches
• Standard: ASTM F 1866
• Listing: NSF Listed
• Country of Origin: USA
• UPC: 611942123094

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-600-16IN
