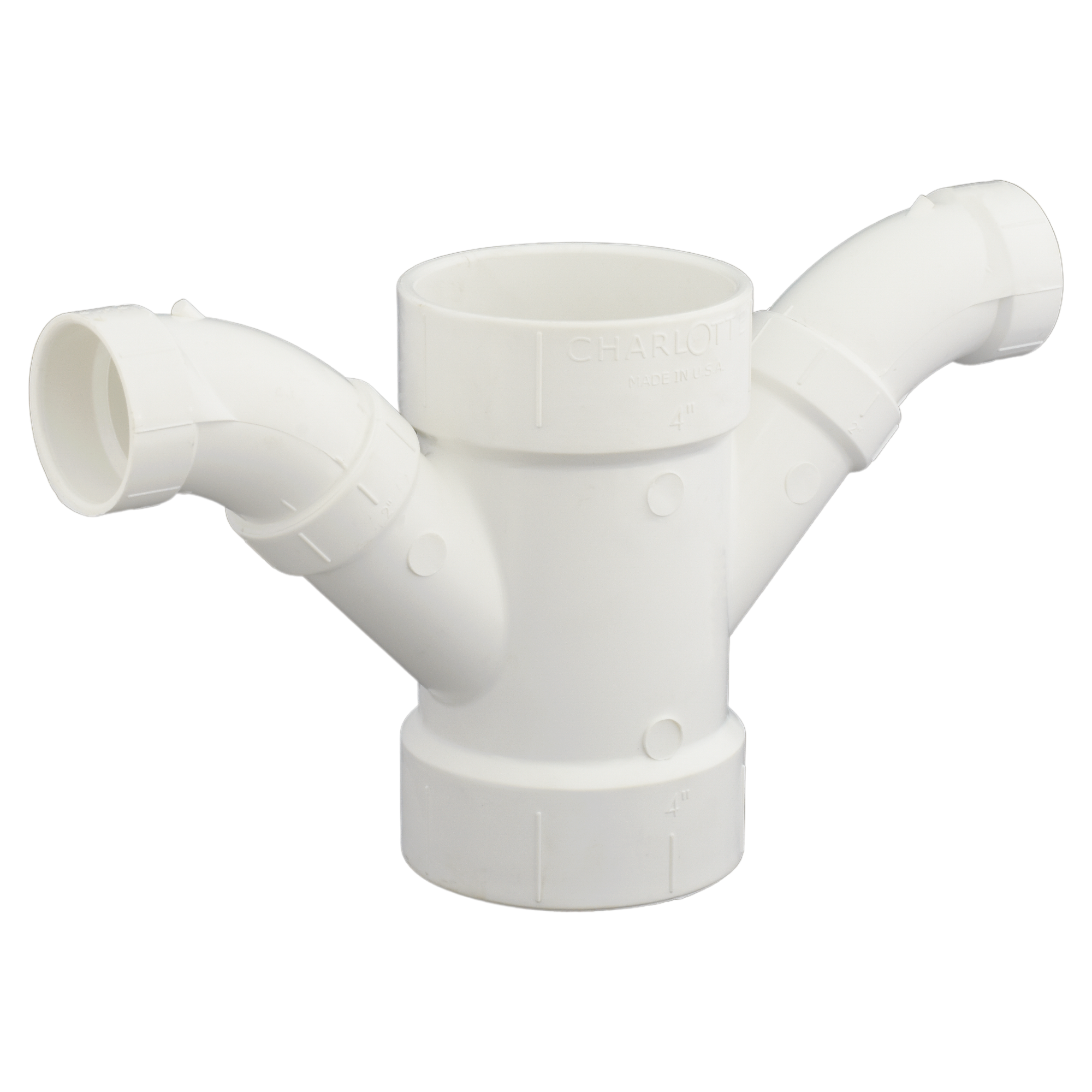

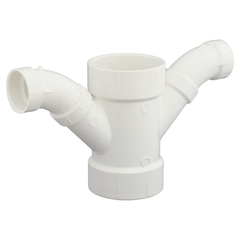

Charlotte Pipe PVC-507-4X4X2X2 Dwv Double Combo Wye 1/8 Bend

Product Description

The CHARLOTTE PIPE PVC-507-4X4X2X2 is a PVC DWV double combination wye and 1/8 bend fitting designed for drain, waste, and vent applications in gravity-fed, non-pressure piping systems. It joins 4-inch main lines with 2-inch branch lines in a single compact fitting, reducing the need for multiple fittings in tight rough-in conditions. This fitting is manufactured from PVC and is rated for systems where temperatures will not exceed 140 degrees F. Licensed plumbers and pipefitters install this fitting in residential and light commercial DWV systems using standard solvent cement joining methods.

This fitting is used in gravity-fed drain, waste, and vent systems where a double-branch configuration is needed off a 4-inch main run. Common applications include stack installations where two 2-inch branch lines must be tied in at the same elevation, such as sink or lavatory drains roughed into a 4-inch soil or waste stack. It is well suited for both new construction and retrofit work in residential and commercial plumbing systems.

Key Features

• Double combination wye and 1/8 bend design combines two fittings into one for cleaner rough-in layouts
• 4-inch by 4-inch by 2-inch by 2-inch configuration supports dual branch connections off a main 4-inch line
• Rated for non-pressure DWV systems up to 140 degrees F
• Compatible with solvent cementing, threading, flanging, and roll-grooved joining methods
• Lightweight PVC construction requires no special cutting tools
• Manufactured in the USA

Compatibility

Designed for use in non-pressure PVC DWV piping systems. Compatible with standard 4-inch and 2-inch PVC DWV pipe and fittings joined by solvent cement per applicable plumbing codes.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the IPC or UPC as adopted in the jurisdiction. Shut off the water supply and ensure the drain system is depressurized and drained before cutting into an existing line. Clean and dry all pipe ends before applying solvent cement, and allow adequate cure time before restoring flow. Do not use this fitting in pressurized supply or hot water systems.

Technical Specifications

• Material: PVC
• Fitting Type: Double Combination Wye and 1/8 Bend
• Application: Drain, Waste, and Vent (DWV), Non-Pressure
• Main Line Size: 4 inches x 4 inches
• Branch Size: 2 inches x 2 inches
• Maximum Temperature: 140 degrees F
• Joining Method: Solvent Cement, Threading, Flanging, Roll-Grooved
• Country of Origin: USA
• UPC: 611942035960

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-507-4X4X2X2
