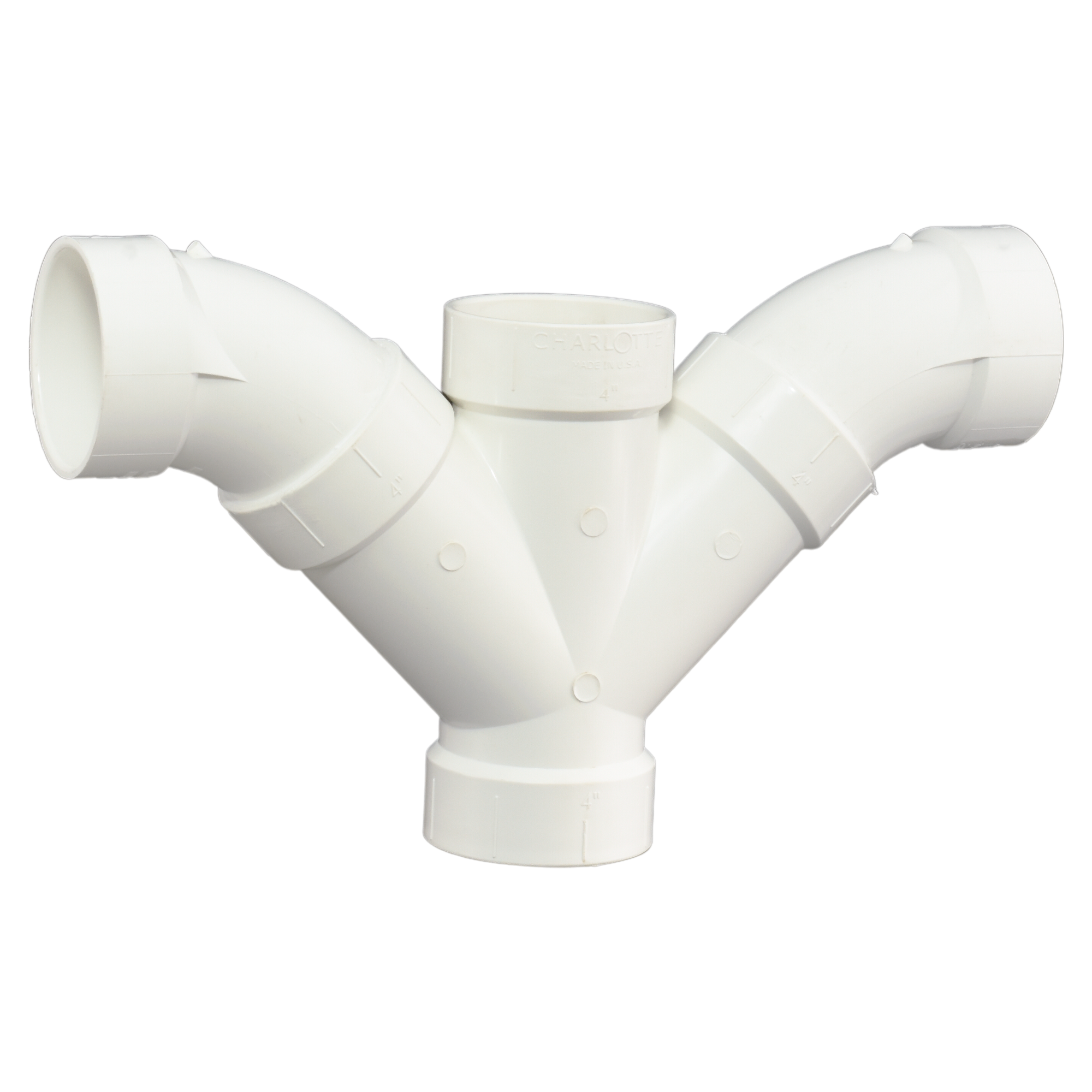

Charlotte Pipe PVC-507-4IN 4 in Pvc Dwv Double Combo Wye 1/8 Bend

Product Description

The CHARLOTTE PIPE PVC-507-4IN is a 4-inch PVC double combination wye and 1/8 bend fitting designed for drain, waste, and vent (DWV) applications. This fitting is engineered for gravity-fed, non-pressure drainage systems where operating temperatures will not exceed 140 degrees F. The dual-function design combines a wye branch with an integrated 1/8 bend, reducing the number of joints required in the line. Lightweight PVC construction keeps handling easy on the job site. Licensed plumbers and pipefitters install this fitting during rough-in work on residential and commercial drain systems.

This fitting is suited for residential and light commercial DWV installations where a branch connection and directional change are needed at a single point in the drain line. It is used in horizontal and vertical drain configurations within gravity-fed waste systems. No special cutting tools are required, and the fitting accepts standard PVC DWV solvent cement joining. It can also be installed using threading, flanging, or roll-grooved methods depending on the system layout.

Key Features

• 4-inch socket connections sized for standard PVC DWV pipe
• Combined wye and 1/8 bend geometry reduces total fitting count per run
• Rated for non-pressure, gravity-fed drain, waste, and vent systems
• Maximum service temperature of 140 degrees F
• Compatible with solvent cement, threaded, flanged, and roll-grooved joining methods
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement fitting for residential and commercial PVC DWV piping systems using 4-inch gravity-fed drain and vent lines.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and verify the drain line is depressurized before cutting into an existing system. When solvent cementing, use a PVC DWV-rated primer and cement, and allow full cure time before restoring flow. Do not use this fitting in pressurized supply lines or systems exceeding 140 degrees F.

Technical Specifications

• Pipe Size: 4 inches
• Fitting Type: Double Combination Wye and 1/8 Bend
• Material: PVC
• System Type: DWV (Drain, Waste, Vent) — Non-Pressure
• Maximum Temperature: 140 degrees F
• Joining Methods: Solvent Cement, Threaded, Flanged, Roll-Grooved
• Country of Origin: USA
• UPC: 611942035953

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-507-4IN
