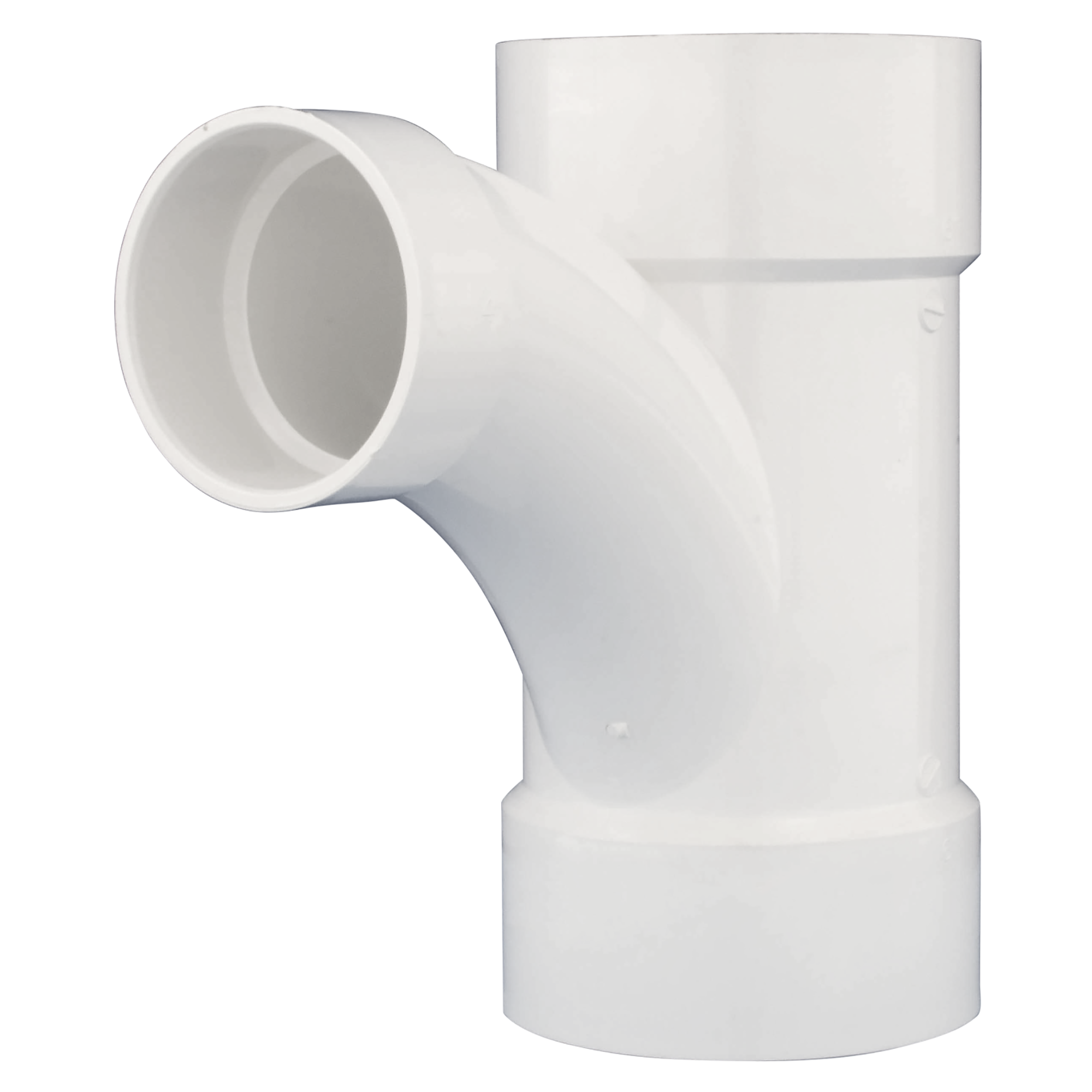

Charlotte Pipe PVC-504-6X6X4 Pvc Dwv Combo Wye 6x6x4

Product Description

The CHARLOTTE PIPE PVC-504-6X6X4 is a PVC combination wye with 1/8 bend fitting designed for drain, waste, and vent (DWV) applications. This one-piece fitting combines a wye and a 1/8 bend into a single unit, reducing the need for additional fittings in gravity-fed waste elimination systems. It is rated for non-pressure systems only, with a maximum service temperature of 140 degrees F. The fitting is sized at 6 inches by 6 inches by 4 inches and is manufactured from PVC, making it lightweight and straightforward to handle on the job site.

This fitting is used in residential and commercial drain, waste, and vent piping systems. It is suited for gravity-fed horizontal and vertical drain lines where a branch connection with a directional sweep is required. Plumbers use this fitting when tying a 4 inch branch into a 6 inch main line run while maintaining flow direction. It is not intended for pressure service, high-temperature fluid lines, or compressed-air applications.

Key Features

• One-piece combination wye and 1/8 bend reduces fitting count and simplifies layout
• Rated for non-pressure DWV service up to 140 degrees F
• 6 inch by 6 inch by 4 inch configuration for common main-to-branch reductions
• PVC construction is lightweight and corrosion resistant
• Compatible with solvent cement, threaded, flanged, and roll-grooved joining methods
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement or new-installation fitting for residential and commercial PVC DWV piping systems using 6 inch main lines with 4 inch branch connections.

Installation Notes

Installation is performed by licensed plumbers in accordance with the International Plumbing Code (IPC) and applicable local codes. Flow through the system before beginning work and ensure all sections are properly supported per code-required hanger spacing for PVC DWV pipe. When solvent cementing, use a PVC-rated primer and cement appropriate for DWV fittings and allow full cure time before restoring service. Do not use this fitting in pressurized or above-ground supply lines.

Technical Specifications

• Material: PVC
• Application: Drain, Waste, and Vent (DWV), non-pressure systems
• Maximum Temperature: 140 degrees F
• Inlet Size: 6 inches
• Outlet Size: 6 inches by 4 inches
• Fitting Type: Combination Wye with 1/8 Bend
• Joining Method: Solvent cement, threaded, flanged, or roll-grooved
• Country of Origin: USA
• UPC: 611942035823

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-504-6X6X4
