Charlotte Pipe PVC-504-6X6X3 Dwv Combo Wye 1/8 Bend

Product Description

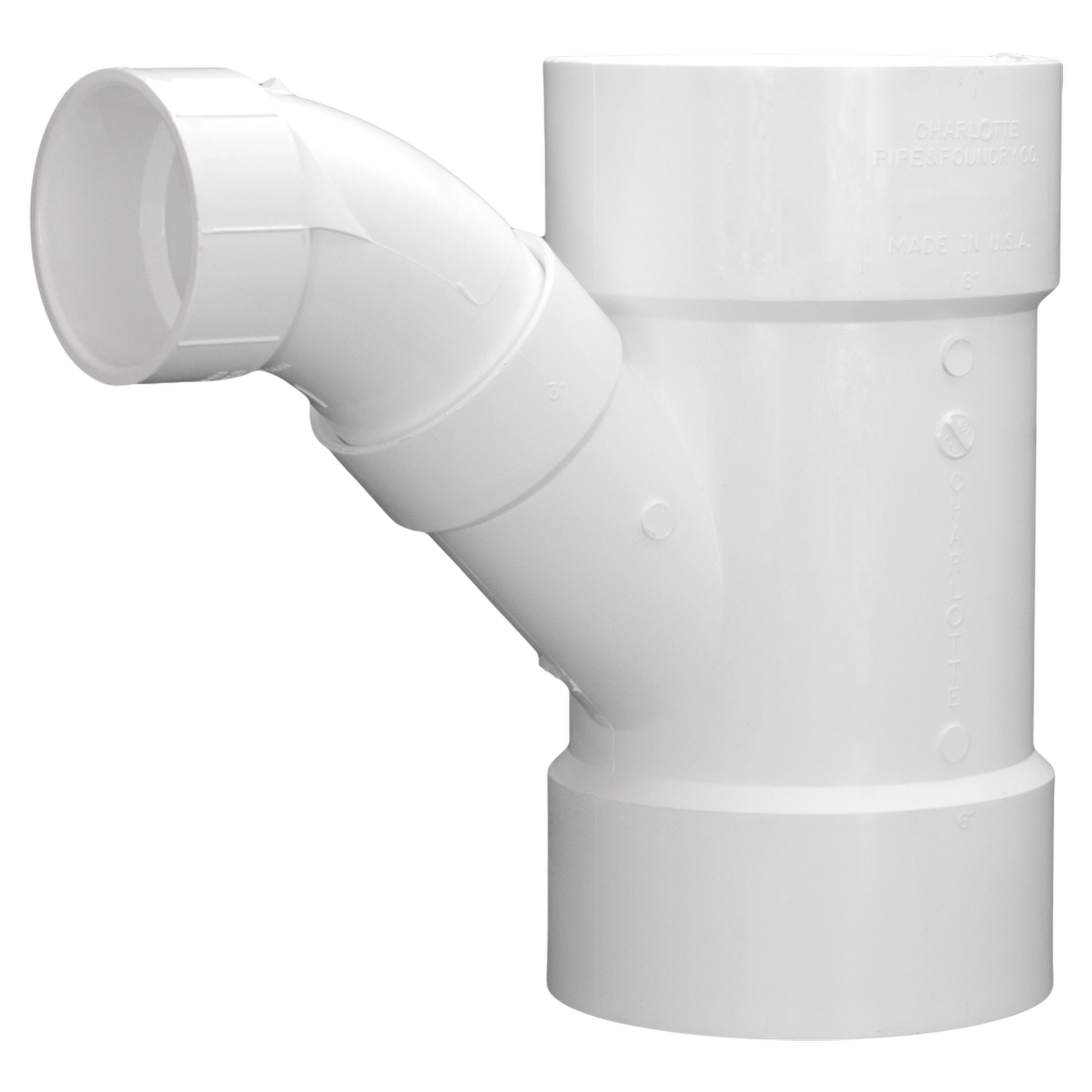

The CHARLOTTE PIPE PVC-504-6X6X3 is a two-piece PVC combination wye and 1/8 bend fitting designed for drain, waste, and vent (DWV) applications. It features a 6-inch by 6-inch by 3-inch configuration, allowing a 3-inch branch to intersect a 6-inch main line at a gradual sweep angle. This fitting is intended for non-pressure, gravity-fed waste elimination systems only and is not rated for pressurized service. Maximum service temperature is 140 degrees F. Licensed plumbers and pipefitters install this fitting in residential and commercial DWV rough-in work using solvent cement, threading, flanging, or roll-grooved joining methods.

This fitting is suited for residential and commercial DWV systems where a branch takeoff is needed from a large-diameter main drain line. Common applications include main stack branch connections, building drain assemblies, and horizontal-to-horizontal drain transitions. The two-piece construction simplifies installation in tight or retrofitted spaces where a one-piece fitting may be difficult to maneuver into position. All Charlotte Pipe PVC DWV fittings are manufactured in the USA.

Key Features

• Two-piece combination wye and 1/8 bend in a single assembly for clean directional branch connections
• 6 x 6 x 3 inch configuration for large main line runs with a reduced 3-inch branch outlet
• Rated for non-pressure, gravity-fed DWV service up to 140 degrees F
• Compatible with solvent cement, threaded, flanged, and roll-grooved joining methods
• Lightweight PVC construction requires no special cutting tools
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement and new-installation fitting for residential and commercial PVC DWV piping systems using 6-inch main lines and 3-inch branch lines.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off water supply and verify the drain system is depressurized before cutting into an existing line. When solvent cementing, use a PVC-rated primer and cement appropriate for DWV applications and allow full cure time before returning the system to service. This fitting is not suitable for pressure piping, potable water supply lines, or applications exceeding 140 degrees F.

Technical Specifications

• Material: PVC
• Application: Drain, Waste, and Vent (DWV), Non-Pressure
• Configuration: Combination Wye and 1/8 Bend, Two Piece
• Inlet Size: 6 inches x 6 inches
• Branch Outlet Size: 3 inches
• Maximum Temperature: 140 degrees F
• Joining Methods: Solvent Cement, Threaded, Flanged, Roll-Grooved
• Country of Origin: USA
• UPC: 611942035816

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-504-6X6X3
