Charlotte Pipe PVC-504-10X10X4 Dwv Combo Wye 1/8 Bend

Product Description

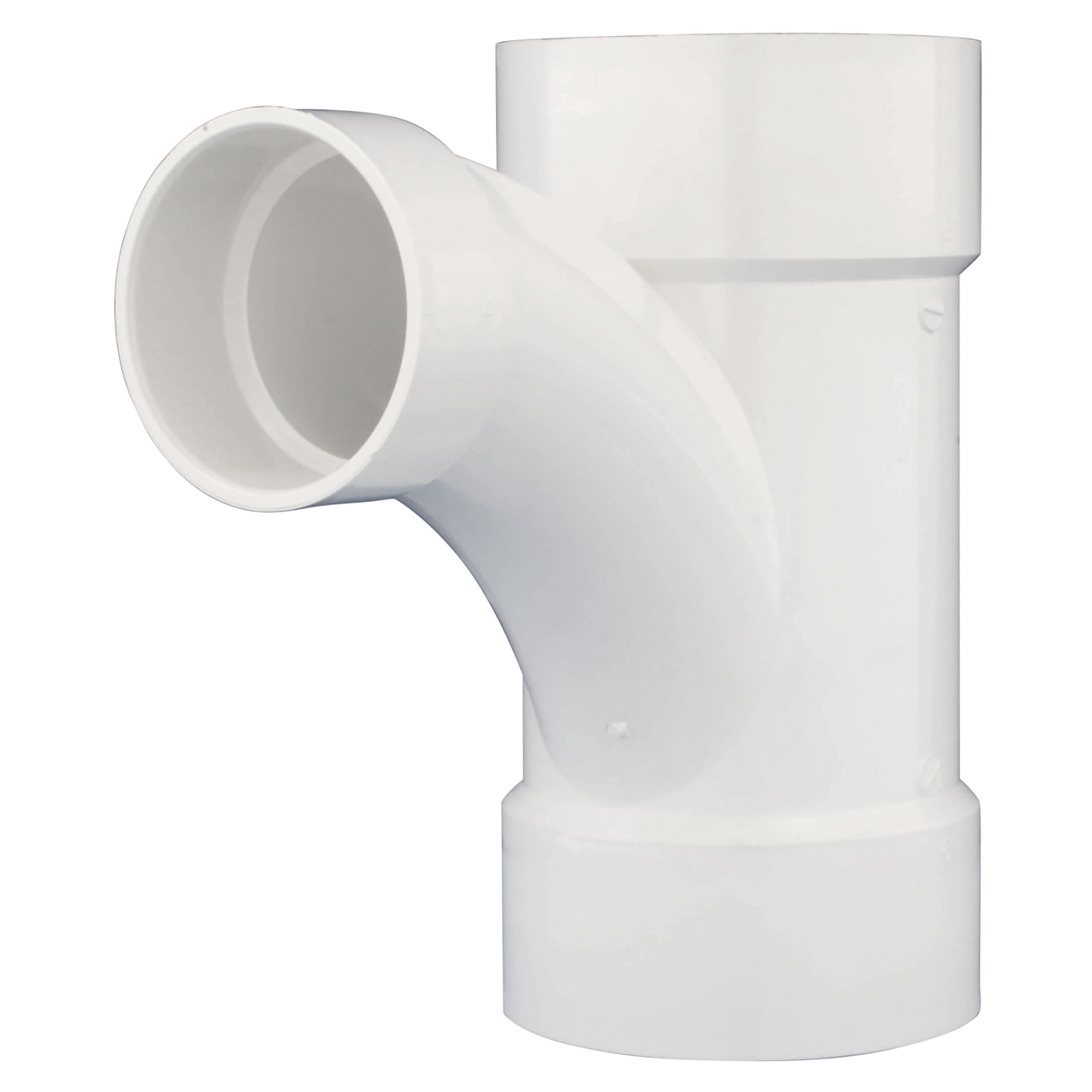

The CHARLOTTE PIPE PVC-504-10X10X4 is a two-piece PVC combination wye and 1/8 bend fitting sized at 10 x 10 x 4 inches, designed for drain, waste, and vent (DWV) applications. It connects a 4-inch branch to a 10-inch main run in gravity-fed waste elimination systems. This fitting is rated for non-pressure service only and is suitable for systems where operating temperatures will not exceed 140 degrees F. Lightweight PVC construction makes handling and positioning straightforward on the job site. Licensed plumbers install this fitting as part of residential or commercial DWV rough-in work.

This combination wye and 1/8 bend fitting is used in gravity-fed DWV piping systems, typically in residential and commercial drain and waste stacks where a branch takeoff must enter the main line at a swept angle. The integrated 1/8 bend eliminates the need for a separate elbow at the branch entry point, reducing joint count and labor. It is suited for new construction rough-in and replacement work in interior drainage systems.

Key Features

• Combination wye and 1/8 bend in a single two-piece assembly reduces total joint count
• 10 x 10 x 4 inch configuration handles large-diameter main runs with a standard 4-inch branch connection
• Rated for non-pressure DWV service up to 140 degrees F
• Compatible with solvent cement, threading, flanging, and roll-grooved joining methods
• Lightweight PVC construction requires no special cutting tools
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement and new-construction fitting for PVC DWV piping systems operating under gravity-fed, non-pressure conditions.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable plumbing codes, including the International Plumbing Code (IPC). Shut off the water supply and verify the system is depressurized before cutting into an existing drain line. When solvent cementing, use a PVC DWV-rated primer and cement and allow adequate cure time before returning the system to service. This fitting is not rated for pressure systems or applications exceeding 140 degrees F.

Technical Specifications

• Configuration: Combination Wye and 1/8 Bend, 2-Piece
• Main Size: 10 inches x 10 inches
• Branch Size: 4 inches
• Material: PVC
• System Type: DWV (Drain, Waste, Vent) Non-Pressure
• Maximum Temperature: 140 degrees F
• Country of Origin: USA
• UPC: 611942102365

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-504-10X10X4
