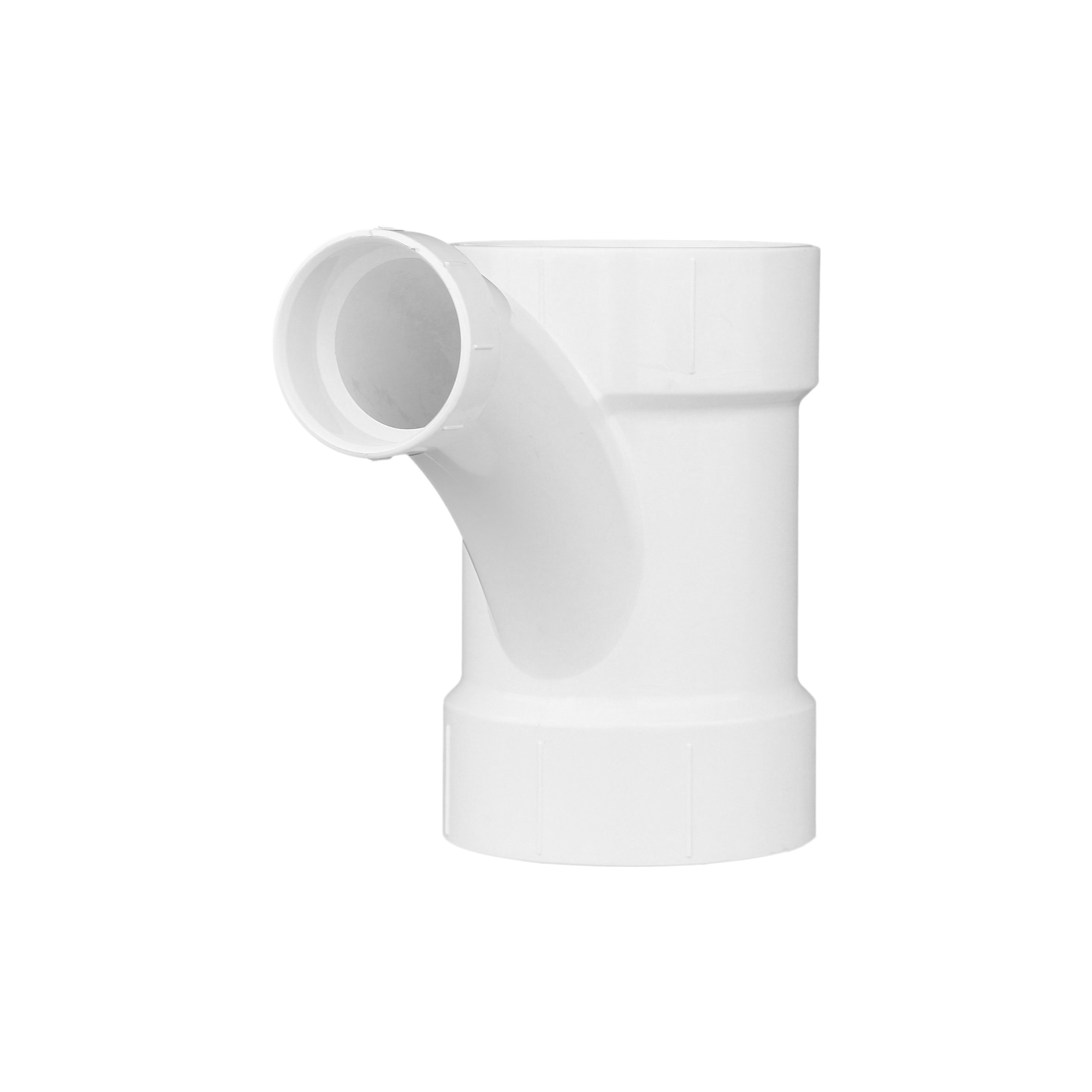

Charlotte Pipe PVC-502-4X4X2 Pvc Dwv Combo Wye 1/8 Bend

Product Description

The CHARLOTTE PIPE PVC-502-4X4X2 is a one-piece PVC DWV combination wye and 1/8 bend fitting designed for drain, waste, and vent applications in gravity-fed, non-pressure piping systems. With a 4-inch by 4-inch by 2-inch configuration, this fitting combines two common drainage components into a single unit, reducing the number of joints in the system. It is rated for use in systems where temperatures will not exceed 140 degrees F. Licensed plumbers and pipefitters install this fitting in residential and light commercial DWV assemblies as part of rough-in and drain stack work.

This fitting is suited for residential and commercial gravity-fed waste elimination systems where a branch connection is needed off a main 4-inch drain line to a 2-inch branch line. The combination wye and 1/8 bend configuration provides a smooth, code-friendly directional transition that supports proper drainage flow. It is appropriate for new construction and remodel applications where PVC DWV piping is specified. All Charlotte Pipe products are manufactured in the USA, making this fitting a common choice for projects requiring domestic sourcing.

Key Features

• One-piece combination wye and 1/8 bend reduces joint count and simplifies rough-in
• Rated for non-pressure gravity-fed drain, waste, and vent systems up to 140 degrees F
• Compatible with solvent cement, threading, flanging, and roll-grooved joining methods
• Lightweight PVC construction requires no special cutting tools
• Manufactured in the USA by Charlotte Pipe

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 4-inch by 4-inch by 2-inch PVC DWV piping systems in residential and commercial gravity-fed waste elimination applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off all flow to the affected drain line and ensure the system is fully drained before cutting into existing pipe. Solvent cement joining requires proper primer and cement selection rated for PVC DWV pipe and fittings. Allow adequate cure time before restoring flow or covering the installation.

Technical Specifications

• Material: PVC
• Configuration: Combination Wye and 1/8 Bend, One-Piece
• Inlet Size: 4 inches x 4 inches
• Outlet Size: 2 inches
• System Type: DWV (Drain, Waste, Vent), Non-Pressure
• Maximum Temperature: 140 degrees F
• Joining Methods: Solvent Cement, Threading, Flanging, Roll-Grooved
• Country of Origin: USA
• UPC: 611942035700

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-502-4X4X2
