Charlotte Pipe PVC-502-3X3X1-1/2 Dwv Combo Wye 1/8 Bend

Product Description

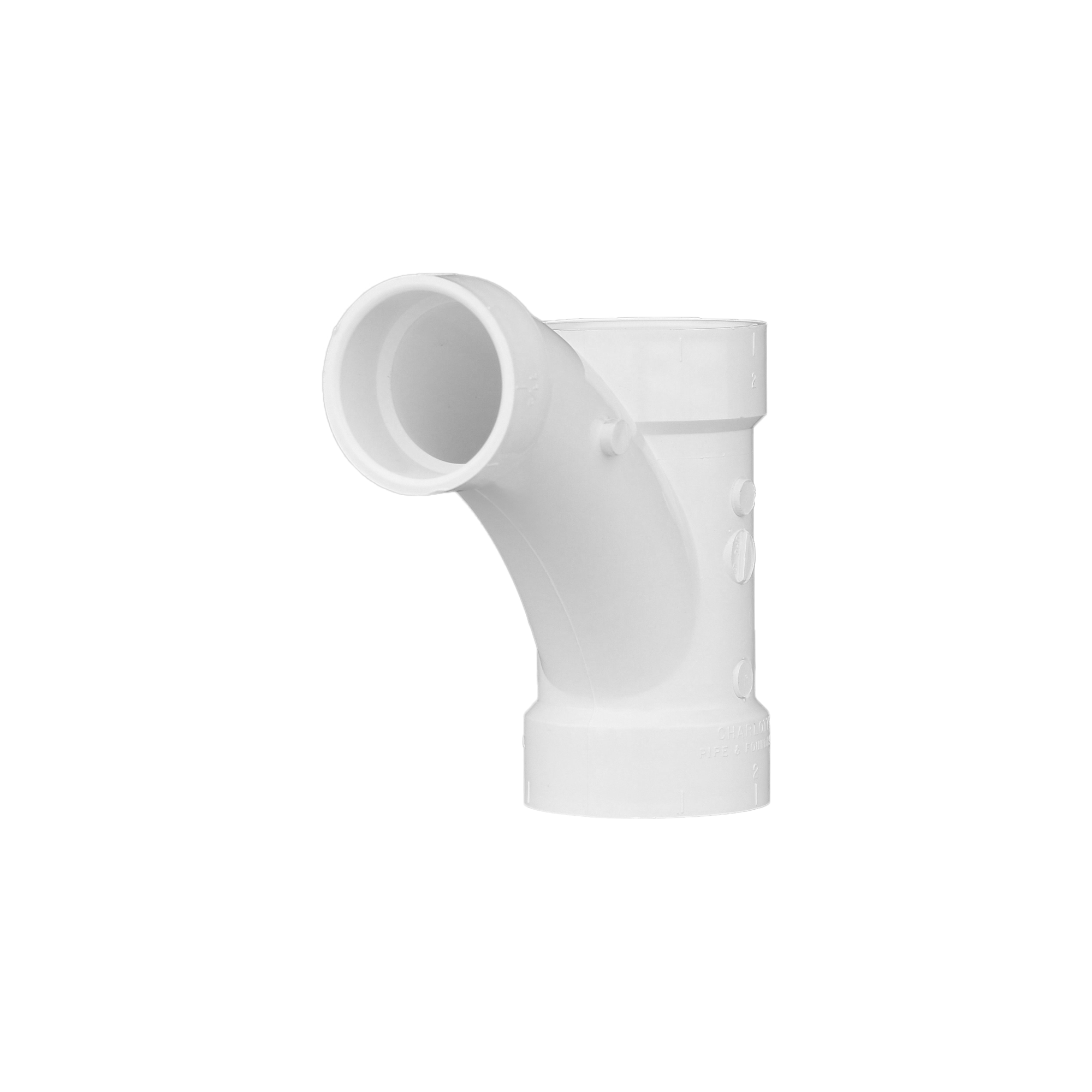

The CHARLOTTE PIPE PVC-502-3X3X1-1/2 is a PVC combination wye and 1/8 bend fitting designed for drain, waste, and vent (DWV) systems. This one-piece fitting combines a wye branch with a 1/8 bend to simplify branch connections in gravity-fed waste elimination systems. It is manufactured from PVC material, making it lightweight and straightforward to handle on the job. The fitting is rated for non-pressure DWV applications and is suitable for installations where operating temperatures will not exceed 140 degrees F. Licensed plumbers and pipefitters install this fitting in residential and commercial drain systems.

This fitting is used in gravity-fed DWV piping systems where a branch takeoff with a directional change is needed in a single component. The combo wye and 1/8 bend configuration reduces the number of fittings required at a branch connection, keeping the run compact and flow-efficient. It is well suited to residential drain and vent rough-in work as well as light commercial plumbing applications. The 3 inch x 3 inch x 1-1/2 inch sizing makes it appropriate for main drain lines with a reduced branch outlet feeding fixture drains such as lavatories or other smaller-diameter waste connections.

Key Features

• One-piece combo wye and 1/8 bend eliminates the need for two separate fittings at a branch connection
• Rated for non-pressure DWV service in gravity-fed waste elimination systems
• Maximum service temperature of 140 degrees F
• Compatible with solvent cement, threading, flanging, and roll-grooved joining methods
• Lightweight PVC construction requires no special cutting tools
• Manufactured in the USA by Charlotte Pipe

Compatibility

Designed as an OEM-style replacement and standard fitting for residential and commercial PVC DWV piping systems operating under gravity-fed, non-pressure conditions.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off water supply and ensure the drain system is depressurized and clear before beginning work. Solvent cement joining is the most common method for this fitting type; follow the cement and primer manufacturer's instructions for cure time before restoring flow. Do not use this fitting in pressurized supply lines or in systems where sustained temperatures exceed 140 degrees F.

Technical Specifications

• Material: PVC
• Application: Drain, Waste, and Vent (DWV), Non-Pressure
• Fitting Type: Combination Wye and 1/8 Bend
• Inlet Size: 3 inches x 3 inches
• Branch Outlet Size: 1-1/2 inches
• Maximum Temperature: 140 degrees F
• Joining Method: Solvent Cement, Threading, Flanging, Roll-Grooved
• Country of Origin: USA
• UPC: 611942035687

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-502-3X3X1-1/2
