Charlotte Pipe PVC-502-2X1-1/2X1-1/2 Pvc Dwv Combo Wye

Product Description

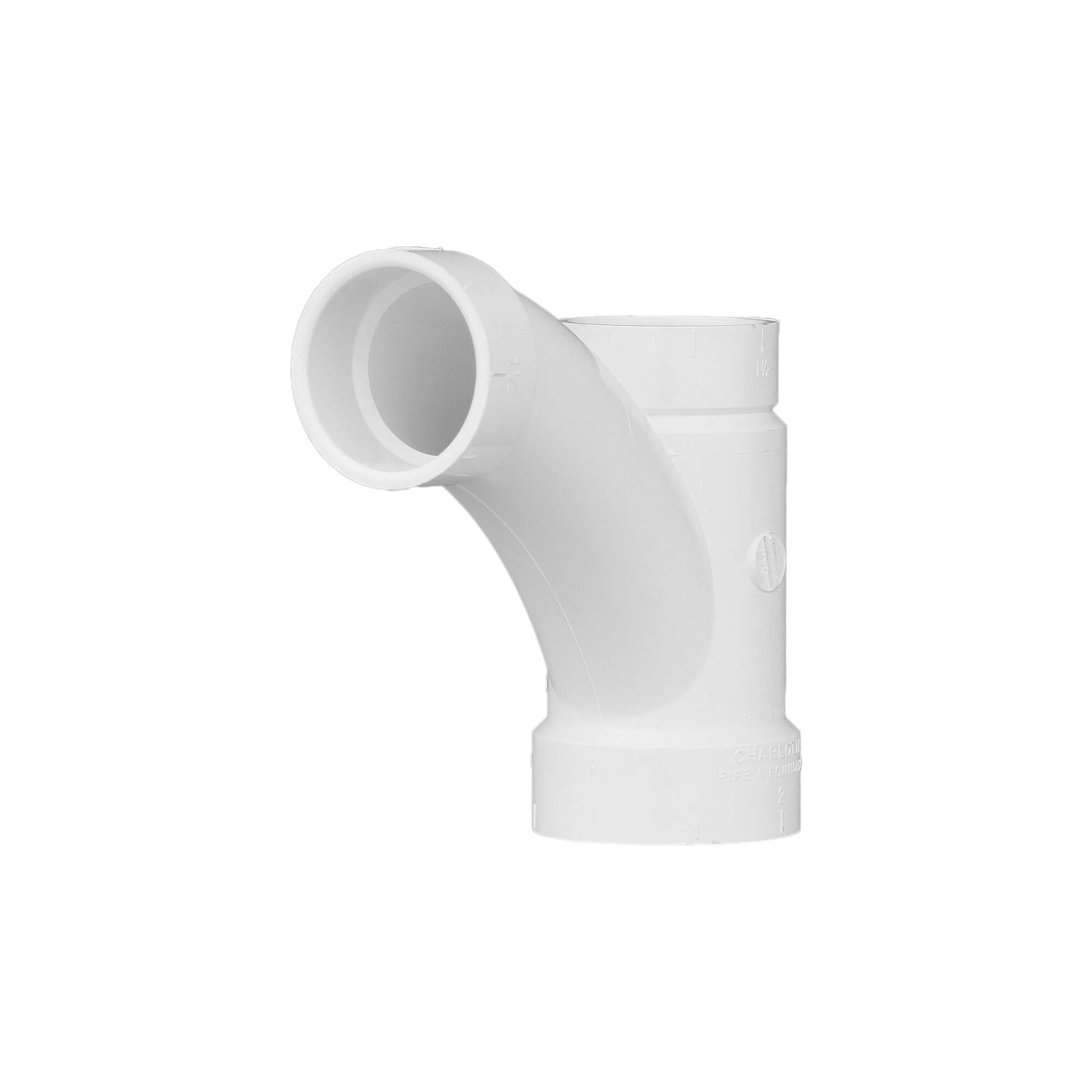

The CHARLOTTE PIPE PVC-502-2X1-1/2X1-1/2 is a one-piece PVC DWV combo wye and 1/8 bend fitting sized at 2 inches by 1-1/2 inches by 1-1/2 inches. It is designed for drain, waste, and vent applications in gravity-fed, non-pressure piping systems. The fitting handles branch connections where a directional change is needed in a single unit, eliminating the need for a separate wye and 1/8 bend. Rated for service in systems where temperatures will not exceed 140 degrees F, it is suited for residential and light commercial plumbing rough-in work. Licensed plumbers and pipefitters are the primary installers.

This fitting is used in gravity-fed DWV systems in residential and commercial construction. It is well suited for drain branch connections in bathroom groups, lavatories, and similar fixture arrangements where a combination of a wye and a sweep offset is required in one fitting. PVC DWV fittings of this type are commonly installed in new construction and remodel projects where non-pressure, above-grade or in-wall drain lines are routed.

Key Features

• One-piece combo wye and 1/8 bend eliminates the need for two separate fittings
• PVC construction is lightweight and corrosion resistant
• Rated for non-pressure DWV service up to 140 degrees F
• Compatible with solvent cement joining for fast, reliable connections
• No special cutting tools required for installation
• Manufactured in the USA by Charlotte Pipe

Compatibility

Designed as an OEM-style replacement or new-installation fitting for residential and commercial PVC DWV piping systems. Compatible with standard Schedule 40 PVC DWV pipe and fittings joined by solvent cementing, threading, flanging, or roll-grooved methods.

Installation Notes

This fitting is installed by licensed plumbers in accordance with the International Plumbing Code and applicable local codes. Shut off water supply and ensure the drain system is clear before beginning work. Use appropriate PVC primer and solvent cement per manufacturer and code requirements for a leak-free joint. Do not use this fitting in pressurized water supply systems or in applications where service temperatures exceed 140 degrees F.

Technical Specifications

• Material: PVC
• System Type: DWV (Drain, Waste, Vent)
• Fitting Type: Combo Wye and 1/8 Bend, One-Piece
• Inlet Size: 2 inches
• Outlet Sizes: 1-1/2 inches x 1-1/2 inches
• Maximum Temperature: 140 degrees F
• Pressure Rating: Non-pressure systems only
• Joining Method: Solvent cement, threading, flanging, roll-grooved
• Country of Origin: USA
• UPC: 611942035656

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-502-2X1-1/2X1-1/2
