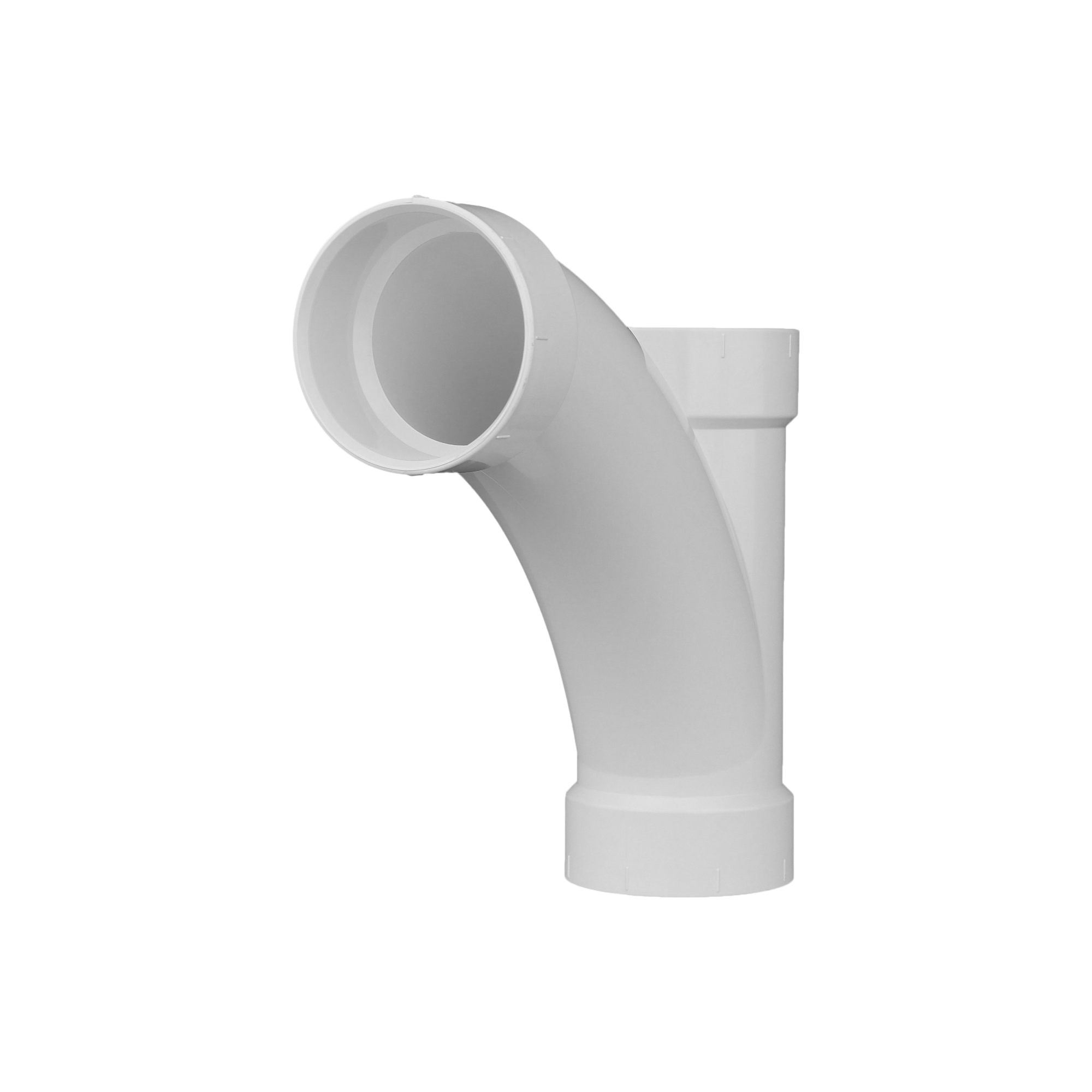

Charlotte Pipe PVC-501-4IN 4 Inch Pvc Dwv Combo Wye Fitting

Product Description

The CHARLOTTE PIPE PVC-501-4IN is a one-piece combination wye and 1/8 bend fitting designed for 4-inch PVC drain, waste, and vent (DWV) systems. This fitting combines two functions into a single molded component, reducing the number of joints in a drain line and simplifying installation. It is engineered for gravity-fed, non-pressure waste elimination systems and is rated for service temperatures up to 140 degrees F. Licensed plumbers install this type of fitting in residential and light commercial drain, waste, and vent rough-in work where a directional change and branch connection are needed in one assembly.

This fitting is suited for horizontal drain runs and branch connections in residential and commercial plumbing systems. The combo wye and 1/8 bend configuration allows a drain line to accept a branch inlet while simultaneously transitioning the flow direction, which is a common requirement in under-floor or in-wall DWV rough-in. It is appropriate for use in new construction and renovation projects where PVC DWV piping is specified. No special cutting tools are required for installation.

Key Features

• One-piece design combines a wye branch and a 1/8 bend to reduce joint count in drain lines
• Rated for non-pressure, gravity-fed drain, waste, and vent service only
• Compatible with solvent cementing, threading, flanging, and roll-grooved joining methods
• Rated for service temperatures up to 140 degrees F
• Lightweight PVC construction simplifies handling and installation
• Manufactured in the USA

Compatibility

Designed as an OEM-style fitting for 4-inch PVC DWV piping systems operating under non-pressure, gravity-fed conditions in residential and commercial plumbing applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and ensure the drain system is depressurized before cutting into an existing line. Solvent cement connections require proper primer and cement application per the fitting manufacturer and code requirements. Do not use this fitting in pressurized supply lines or applications exceeding the rated service temperature.

Technical Specifications

• Pipe Size: 4 inches
• Material: PVC
• System Type: Drain, Waste, and Vent (DWV)
• Max Service Temperature: 140 degrees F
• Pressure Rating: Non-pressure service only
• Joining Methods: Solvent cement, threading, flanging, roll-grooved
• Country of Origin: USA
• UPC: 611942035649

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-501-4IN
