Charlotte Pipe PVC-501-2IN 2 Inch Pvc Dwv Combo Wye 1/8 Bend

Product Description

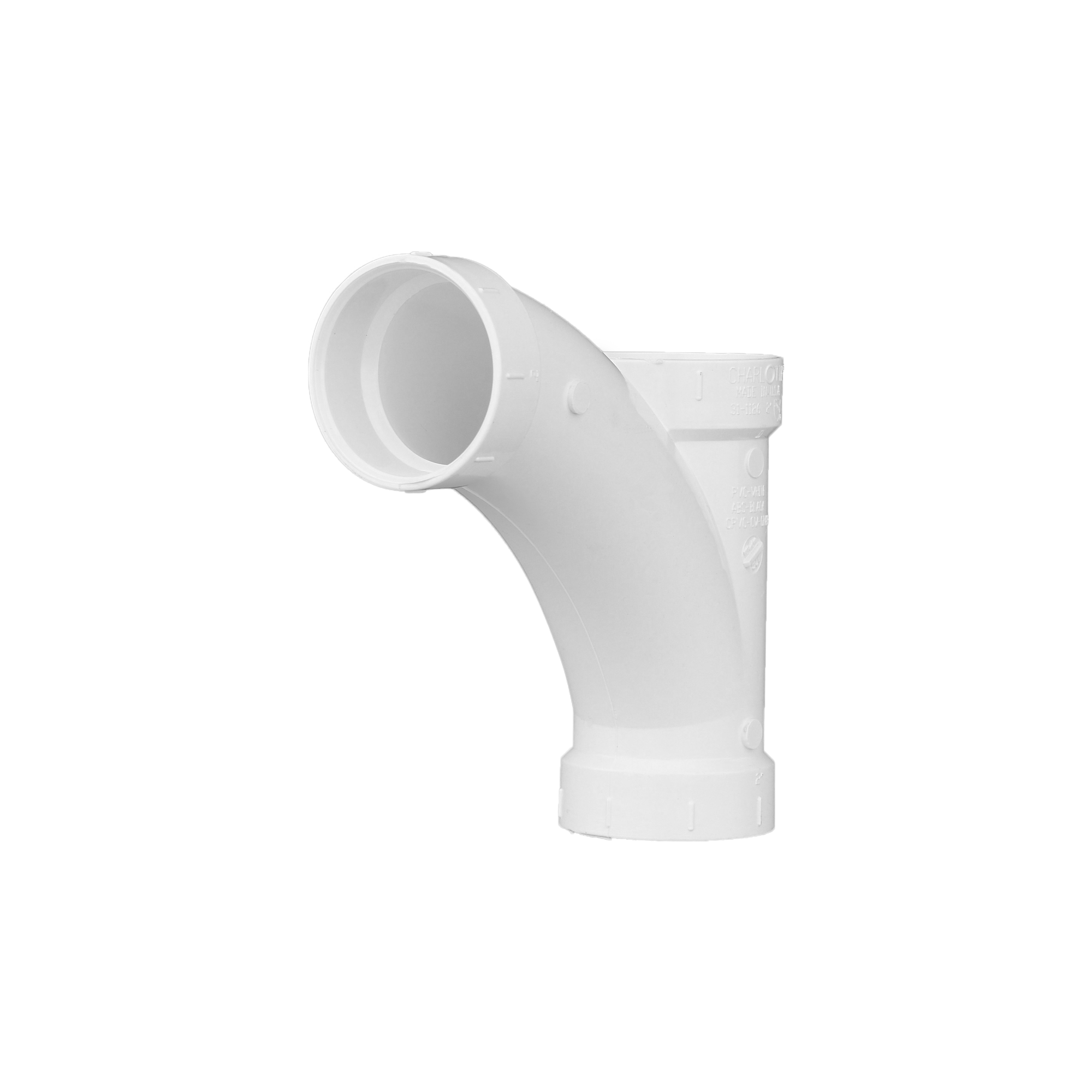

The CHARLOTTE PIPE PVC-501-2IN is a one-piece combination wye and 1/8 bend fitting sized at 2 inches, designed for PVC drain, waste, and vent (DWV) systems. This single fitting combines two directional changes into one unit, reducing the number of joints in a gravity-fed waste elimination run. It is rated for non-pressure applications only and must not be used in systems where temperatures exceed 140 degrees F. Licensed plumbers and pipefitters install this fitting in residential and light commercial drain lines, branch connections, and vented waste stacks.

This fitting is suited for gravity-fed DWV installations in residential and commercial plumbing systems. It is commonly used where a branch takeoff and a directional change are needed in a single assembly, such as connecting a fixture drain to a main stack or horizontal drain run. The one-piece design eliminates an extra coupling, keeping the installation compact and reducing potential leak points. It is not intended for pressurized water supply lines.

Key Features

• One-piece combo wye and 1/8 bend reduces total fitting count in DWV runs
• Rated for non-pressure drain, waste, and vent service only
• Maximum service temperature of 140 degrees F
• Compatible with solvent cement, threading, flanging, and roll-grooved joining methods
• Lightweight PVC construction requires no special cutting tools
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 2-inch PVC DWV piping systems in gravity-fed, non-pressure drain, waste, and vent applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off the water supply and ensure the drain line is clear before cutting into an existing system. Solvent cement joining requires proper primer and cement rated for PVC DWV service, applied per the manufacturer and code instructions. This fitting is not rated for pressure service and must not be substituted into supply or pressurized lines.

Technical Specifications

• Size: 2 inches
• Material: PVC
• Application: Drain, Waste, and Vent (DWV), non-pressure systems
• Maximum Temperature: 140 degrees F
• Joining Methods: Solvent cement, threading, flanging, roll-grooved
• Country of Origin: USA
• UPC: 611942035625

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-501-2IN
