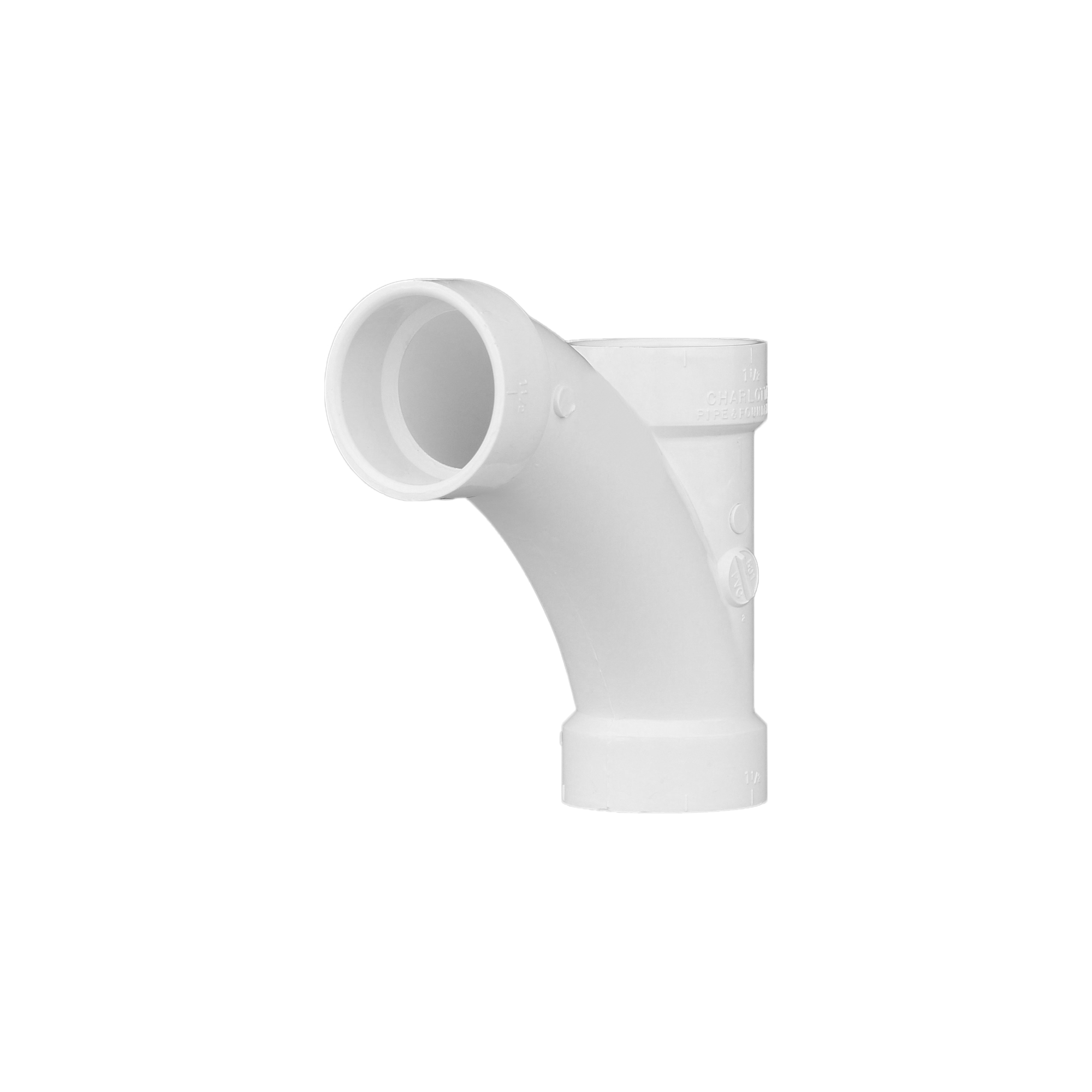

Charlotte Pipe PVC-501-1-1/2 Pvc-dwv Combo Wye 1/8 Bend

Product Description

The CHARLOTTE PIPE PVC-501-1-1/2 is a one-piece combination wye and 1/8 bend fitting designed for PVC drain, waste, and vent (DWV) systems. This 1-1/2 inch fitting serves gravity-fed waste elimination systems in non-pressure applications where operating temperatures do not exceed 140 degrees F. PVC construction keeps the fitting lightweight, and installation does not require special cutting tools. Licensed plumbers and pipefitters install this fitting using solvent cement joining, threading, flanging, or roll-grooved methods depending on the application. The single-body design consolidates the wye and sweep into one fitting, reducing joint count and simplifying rough-in work.

This fitting is suited for residential and light commercial drain, waste, and vent rough-in. The combination wye and 1/8 bend configuration is commonly used where a branch connection needs a directional change off the main DWV stack or horizontal run. Its non-pressure rating makes it appropriate for gravity-flow drain lines, sink drains, tub and shower drains, and similar sanitary waste applications. Manufactured in the USA, the fitting meets standard PVC-DWV material requirements expected in residential and commercial plumbing systems.

Key Features

• One-piece combination wye and 1/8 bend reduces fitting count in DWV rough-in
• 1-1/2 inch PVC-DWV fitting for gravity-fed, non-pressure drain and waste systems
• Rated for systems where temperatures do not exceed 140 degrees F
• Compatible with solvent cement, threaded, flanged, and roll-grooved installation methods
• Lightweight PVC construction requires no special cutting tools
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement and standard-fit fitting for 1-1/2 inch PVC-DWV drain, waste, and vent piping systems in residential and light commercial plumbing applications.

Installation Notes

Installation is performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off the water supply and verify the drain line is clear and dry before beginning work. Solvent cement joining requires proper primer and cement rated for PVC-DWV applications; follow manufacturer cure times before restoring flow. Inspect all joints for full, even cement bead before backfilling or enclosing the work.

Technical Specifications

• Material: PVC
• System Type: DWV (Drain, Waste, Vent) non-pressure
• Pipe Size: 1-1/2 inches
• Fitting Configuration: Combination Wye and 1/8 Bend, one piece
• Maximum Temperature: 140 degrees F
• Country of Origin: USA
• UPC: 611942035618

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-501-1-1/2
