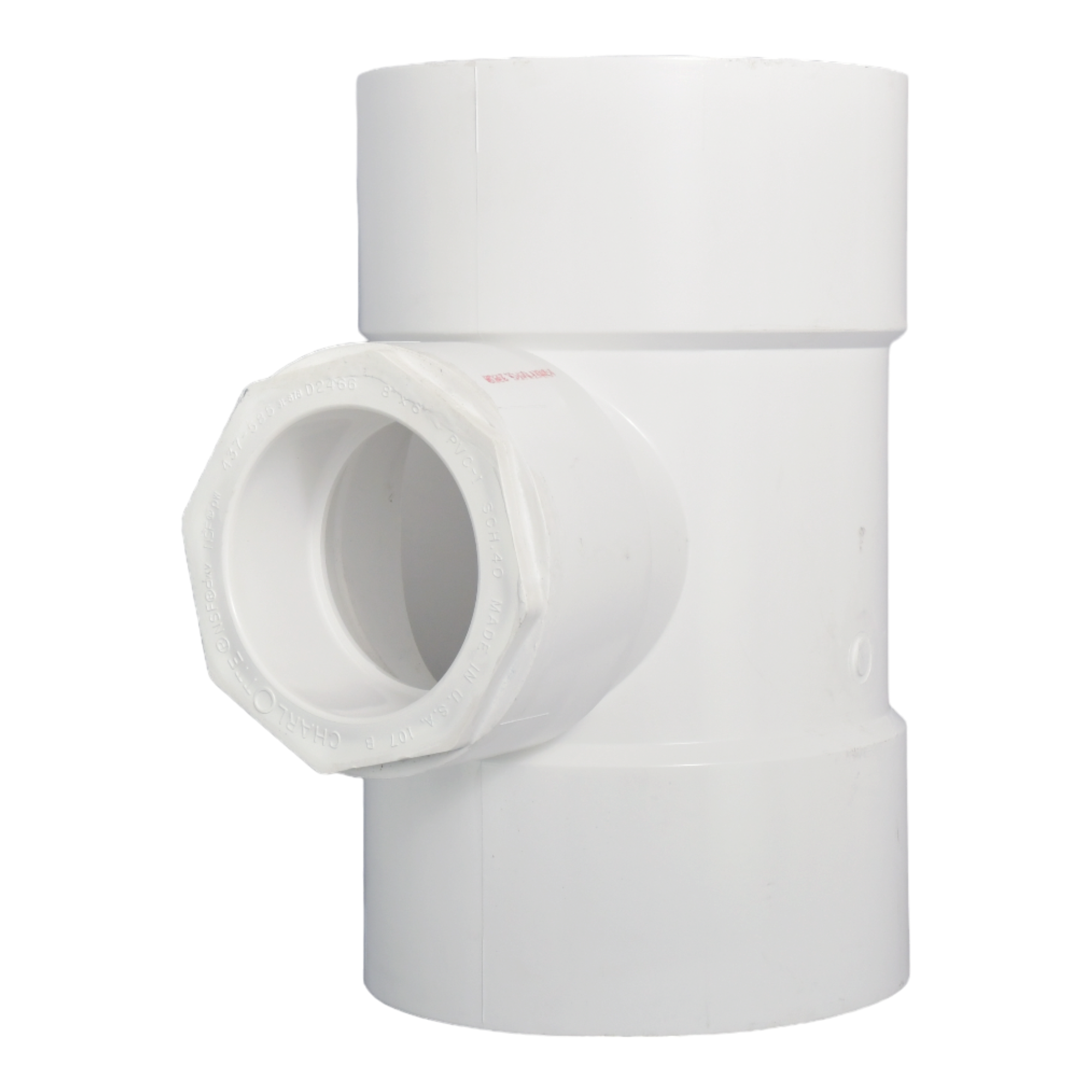

Charlotte Pipe PVC-401A-12X12X6 Pvc Dwv Reducing Tee

Product Description

The CHARLOTTE PIPE PVC-401A-12X12X6 is a reducing straight tee fitting designed for drain, waste, and vent (DWV) applications in non-pressure, gravity-fed waste elimination systems. With a 12-inch by 12-inch run and a 6-inch branch outlet, this fitting handles large-diameter drainage transitions in a single connection. Manufactured from PVC, it is lightweight and suited for systems where operating temperatures will not exceed 140 degrees F. This fitting is installed by licensed plumbers in residential and commercial drain, waste, and vent rough-in work.

This tee is used wherever a 6-inch branch line needs to tie into a 12-inch DWV main. Typical applications include main stack connections, building drain assemblies, and large-diameter sanitary sewer rough-in work. It is appropriate for use in gravity-flow systems only and is not rated for pressurized service. The fitting accepts standard PVC DWV solvent-cement joints and is compatible with solvent cementing, threading, flanging, and roll-grooved joining methods per the installation requirements of the project.

Key Features

• 12-inch by 12-inch run with 6-inch reducing branch outlet
• Rated for non-pressure DWV service up to 140 degrees F
• Lightweight PVC construction simplifies handling on large-diameter rough-in
• Compatible with solvent cementing, threading, flanging, and roll-grooved joining
• No special cutting tools required for installation
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement and new-installation fitting for PVC DWV non-pressure drain, waste, and vent piping systems where a reducing straight tee is required at 12 x 12 x 6 inch dimensions.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off and drain the system before cutting into any existing DWV line. When solvent cementing, use a PVC DWV-rated primer and cement and observe manufacturer cure times before restoring flow. Do not use this fitting in pressurized water supply or compressed-air systems.

Technical Specifications

• Fitting Type: Reducing Straight Tee
• System Type: DWV (Drain, Waste, Vent) Non-Pressure
• Run Size: 12 inches x 12 inches
• Branch Size: 6 inches
• Material: PVC
• Maximum Temperature: 140 degrees F
• Joining Methods: Solvent Cement, Threading, Flanging, Roll-Grooved
• Country of Origin: USA
• UPC: 611942113552

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-401A-12X12X6
