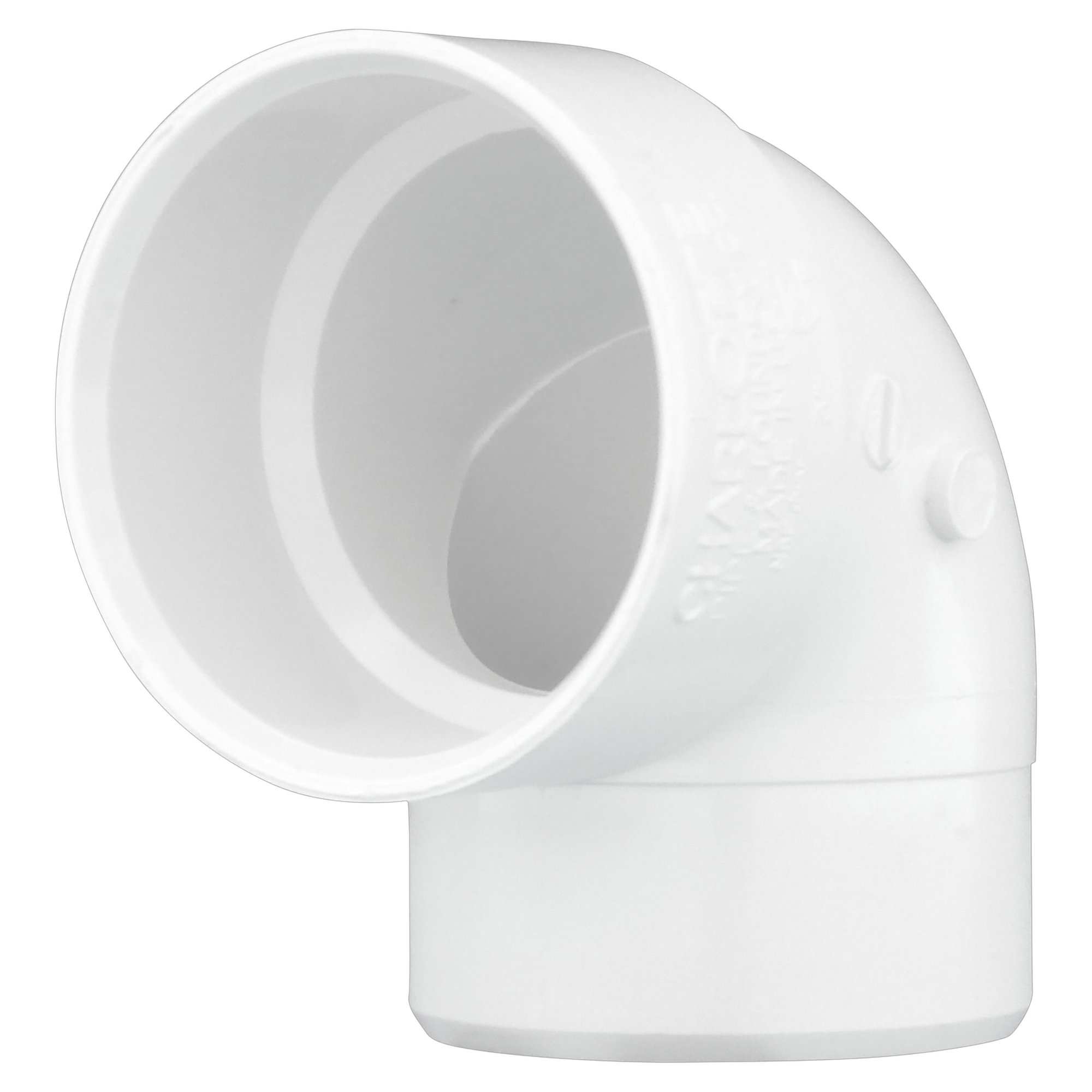

Charlotte Pipe PVC-333-3IN Pvc Dwv 90 Street Vent Elbow 3 in

Product Description

The CHARLOTTE PIPE PVC-333-3IN is a 3-inch PVC DWV 90-degree street vent elbow designed for drain, waste, and vent applications in non-pressure, gravity-fed waste elimination systems. This fitting accepts a spigot on one end and a socket on the other, allowing it to connect directly into a hub fitting without an additional coupling. It is rated for use in systems where temperatures do not exceed 140 degrees F. Lightweight PVC construction makes handling and installation straightforward for plumbers working on residential or light commercial DWV rough-in.

This elbow is used in gravity-fed DWV systems where a 90-degree change of direction is needed on a vent run. The street configuration — spigot by hub — is common in tight spaces where eliminating an extra coupling simplifies the assembly. It is suitable for residential and light commercial plumbing installations governed by the International Plumbing Code and applicable local amendments. No special cutting tools are required; standard PVC cutters or a handsaw work for field prep.

Key Features

• 90-degree street configuration with spigot inlet and hub outlet for direct fitting-to-fitting connections
• Rated for drain, waste, and vent service in non-pressure, gravity-fed systems
• Maximum operating temperature of 140 degrees F
• Compatible with solvent cement joining — no special tools required for cutting or assembly
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3-inch PVC DWV piping systems in residential and light commercial drain, waste, and vent applications.

Installation Notes

Installation is performed by a licensed plumber in accordance with the International Plumbing Code and applicable local codes. Shut off water supply and ensure the system is drained before modifying any drain or vent line. Clean and dry all mating surfaces before applying PVC solvent cement; follow cement manufacturer's cure times before pressurizing or introducing flow. Do not use this fitting in pressure or high-temperature piping systems.

Technical Specifications

• Pipe Size: 3 inches
• Material: PVC
• System Type: DWV (Drain, Waste, Vent)
• Fitting Type: 90-Degree Street Elbow
• End Configuration: Spigot x Hub
• Maximum Temperature: 140 degrees F
• Joining Method: Solvent Cement
• Country of Origin: USA
• UPC: 611942034437

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-333-3IN
