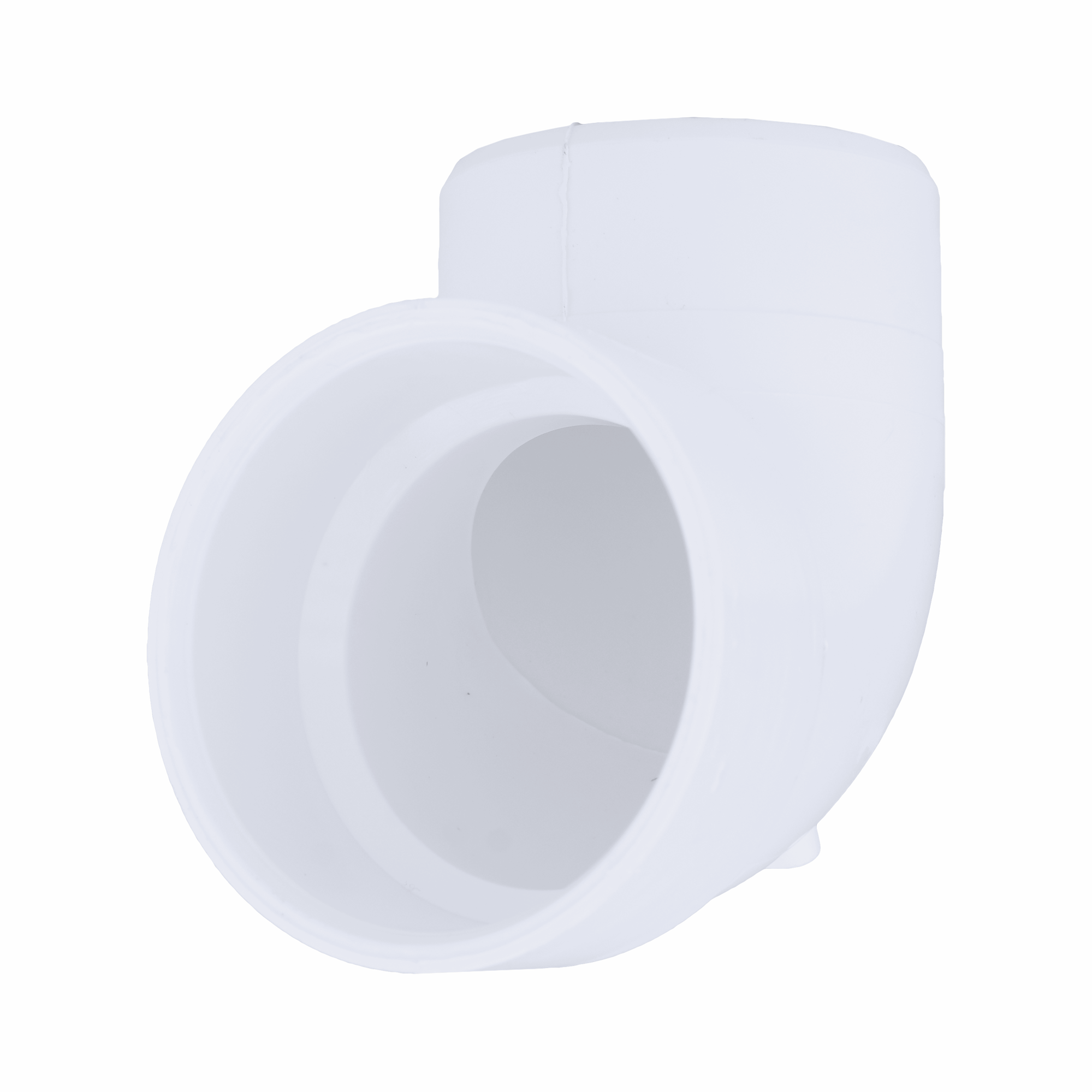

Charlotte Pipe PVC-333-2IN Pvc Dwv Street Vent Elbow 2 in

Product Description

The CHARLOTTE PIPE PVC-333-2IN is a 2-inch PVC DWV street elbow designed for drain, waste, and vent applications in gravity-fed, non-pressure piping systems. This 90-degree street vent elbow features a street end on one side, allowing it to insert directly into a hub fitting without a separate coupling. It is suited for residential and light commercial DWV rough-in work and is installed by licensed plumbers during new construction and renovation projects. Rated for systems where temperatures will not exceed 140 degrees F, it performs reliably in standard indoor drain and vent configurations.

This fitting is used in PVC DWV systems for connecting branch drains, vent stacks, and waste lines wherever a 90-degree change of direction is required. The street configuration is particularly useful in tight spaces where eliminating an extra fitting reduces labor and potential leak points. It is appropriate for residential drain, waste, and vent rough-in as well as light commercial applications. Installers working with standard schedule 40 PVC DWV pipe will find this elbow a direct fit for typical horizontal-to-vertical and vertical offsets.

Key Features

• Street end on inlet allows direct insertion into a standard DWV hub without an additional coupling
• 90-degree sweep supports proper drainage flow direction in gravity-fed waste systems
• Rated for non-pressure DWV service up to 140 degrees F
• Lightweight PVC construction requires no special cutting tools
• Compatible with solvent cement joining for fast, code-accepted installation
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement and standard fitting for residential and light commercial PVC DWV piping systems using 2-inch pipe and fittings.

Installation Notes

Installation is performed by licensed plumbers in accordance with the International Plumbing Code (IPC) or applicable local codes. Shut off the water supply and ensure the drain line is clear before beginning work. Clean and dry all mating surfaces before applying PVC solvent cement; follow the cement manufacturer's cure time before allowing flow. Do not use this fitting in pressurized supply lines or in systems where operating temperatures will exceed 140 degrees F.

Technical Specifications

• Pipe Size: 2 inches
• Fitting Type: 90 Degree Street Elbow (1/4 Bend)
• Application: Drain, Waste, and Vent (DWV)
• System Type: Non-pressure, gravity-fed
• Maximum Temperature: 140 degrees F
• Material: PVC
• Joining Method: Solvent Cement, Threading, Flanging, Roll-Groove
• Country of Origin: USA
• UPC: 611942034420

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-333-2IN
