Charlotte Pipe PVC-331-3IN Pvc Dwv 90 Vent Elbow 3 Inch

Product Description

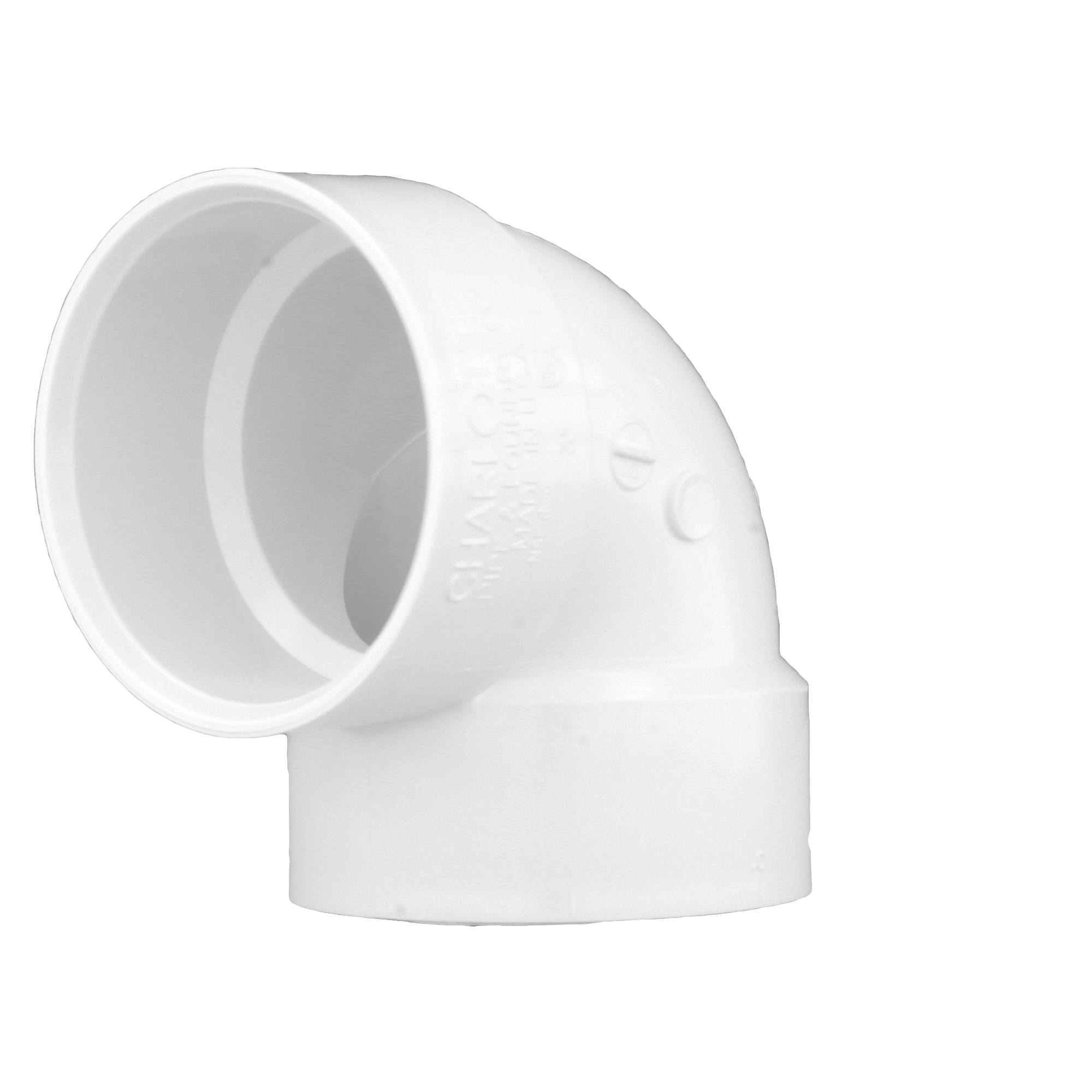

The CHARLOTTE PIPE PVC-331-3IN is a 3-inch PVC DWV quarter-bend vent elbow with hub x hub connections. This 90-degree fitting is designed for drain, waste, and vent applications in gravity-fed, non-pressure drainage systems. It directs flow through a sharp 90-degree turn and is suited for residential and light commercial plumbing rough-in work. The fitting handles system temperatures up to 140 degrees F. Licensed plumbers and plumbing contractors install this type of fitting during new construction and remodel projects where PVC DWV piping is specified.

This fitting is used in residential and commercial DWV systems wherever a 90-degree vent elbow change of direction is needed on a 3-inch line. Typical applications include vent stack offsets, waste line turns, and branch connections within gravity-fed drainage systems. The hub x hub socket design accepts standard 3-inch PVC DWV pipe on both ends and is joined using solvent cement. Charlotte Pipe manufactures this fitting in the USA, which satisfies project specifications that require domestic-sourced plumbing materials.

Key Features

• 90-degree quarter-bend geometry for direction changes on vent and drain lines
• Hub x hub socket ends accept standard 3-inch PVC DWV pipe with solvent-cement joining
• Rated for non-pressure, gravity-fed DWV systems up to 140 degrees F
• Lightweight PVC construction requires no special cutting tools
• Compatible with solvent cementing, threading, flanging, and roll-grooved joining methods
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement and standard fitting for 3-inch PVC DWV gravity-fed drain, waste, and vent piping systems in residential and commercial construction.

Installation Notes

Installation is performed by a licensed plumber in accordance with applicable plumbing codes such as the IPC or local adopted equivalents. Shut off water supply and ensure the drain line is clear and dry before cementing. Clean and prime both the pipe end and hub socket before applying solvent cement, and allow adequate cure time before restoring flow. Do not use this fitting on pressure systems or in applications where temperatures will exceed 140 degrees F.

Technical Specifications

• Pipe Size: 3 inches
• Connection Type: Hub x Hub
• Angle: 90 Degrees (1/4 Bend)
• Material: PVC
• System Type: DWV (Drain, Waste, Vent)
• Max Temperature: 140 degrees F
• Pressure Rating: Non-Pressure / Gravity-Fed Only
• Country of Origin: USA
• UPC: 611942034369

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-331-3IN
