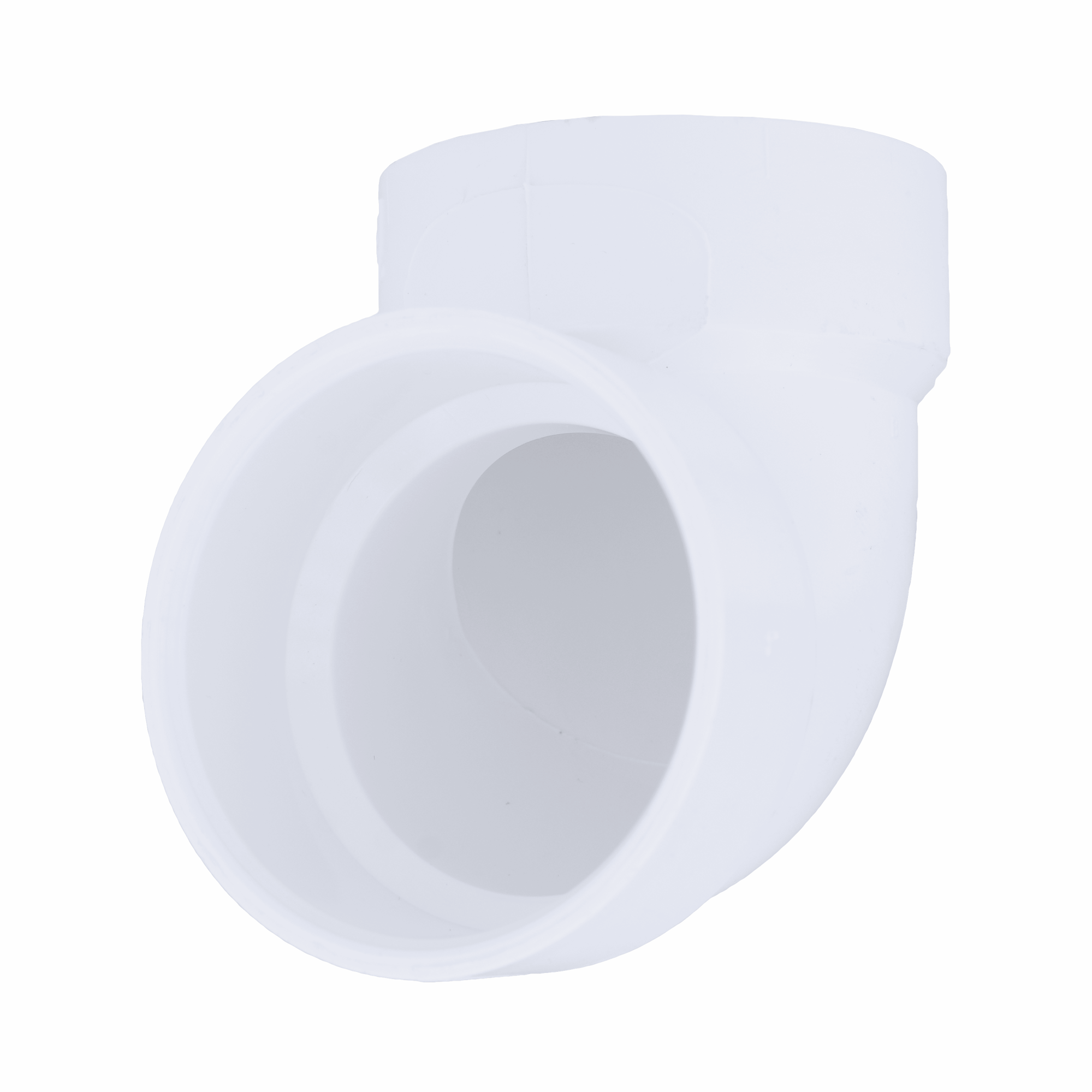

Charlotte Pipe PVC-331-2IN Pvc Dwv 90 Vent Elbow 2 in

Product Description

The CHARLOTTE PIPE PVC-331-2IN is a 2-inch PVC DWV 90-degree vent elbow with hub x hub connections, designed for drain, waste, and vent piping systems. This fitting directs flow through a quarter-bend turn in non-pressure, gravity-fed waste elimination systems. It is rated for service in systems where temperatures do not exceed 140 degrees F. Lightweight PVC construction makes handling and installation straightforward. Licensed plumbers and pipefitters install this fitting using standard solvent cement joining, with no special cutting tools required. It is manufactured in the USA.

This elbow is used in residential and light commercial DWV piping installations where a 90-degree directional change is needed in a vent stack or drain line. It is suited for new construction and renovation work involving PVC drain, waste, and vent systems. The hub x hub configuration accepts standard PVC DWV pipe on both ends, making it compatible with typical solvent-cement assembly methods used in gravity-fed plumbing systems.

Key Features

• 90-degree quarter-bend geometry for DWV vent line routing
• Hub x hub ends accept standard 2-inch PVC DWV pipe with solvent cement
• Rated for non-pressure, gravity-fed drain, waste, and vent applications
• Maximum service temperature of 140 degrees F
• Lightweight PVC construction requires no special cutting tools
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 2-inch PVC DWV piping systems in residential and commercial gravity-fed drain, waste, and vent applications.

Installation Notes

Installation is performed by a licensed plumber in accordance with applicable plumbing codes such as the IPC or local equivalents. Shut off the water supply and ensure the drain line is clear before cutting into an existing system. Solvent cement joining requires proper primer and cement rated for PVC DWV service, applied per the cement manufacturer's instructions and allowed to cure before system use. Do not use this fitting in pressurized piping systems or in applications where temperatures exceed 140 degrees F.

Technical Specifications

• Pipe Size: 2 inches
• Connection Type: Hub x Hub
• Bend Angle: 90 degrees
• Material: PVC
• Application: Drain, Waste, and Vent (DWV)
• System Type: Non-pressure, gravity-fed
• Maximum Temperature: 140 degrees F
• Country of Origin: USA
• UPC: 611942034352

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-331-2IN
