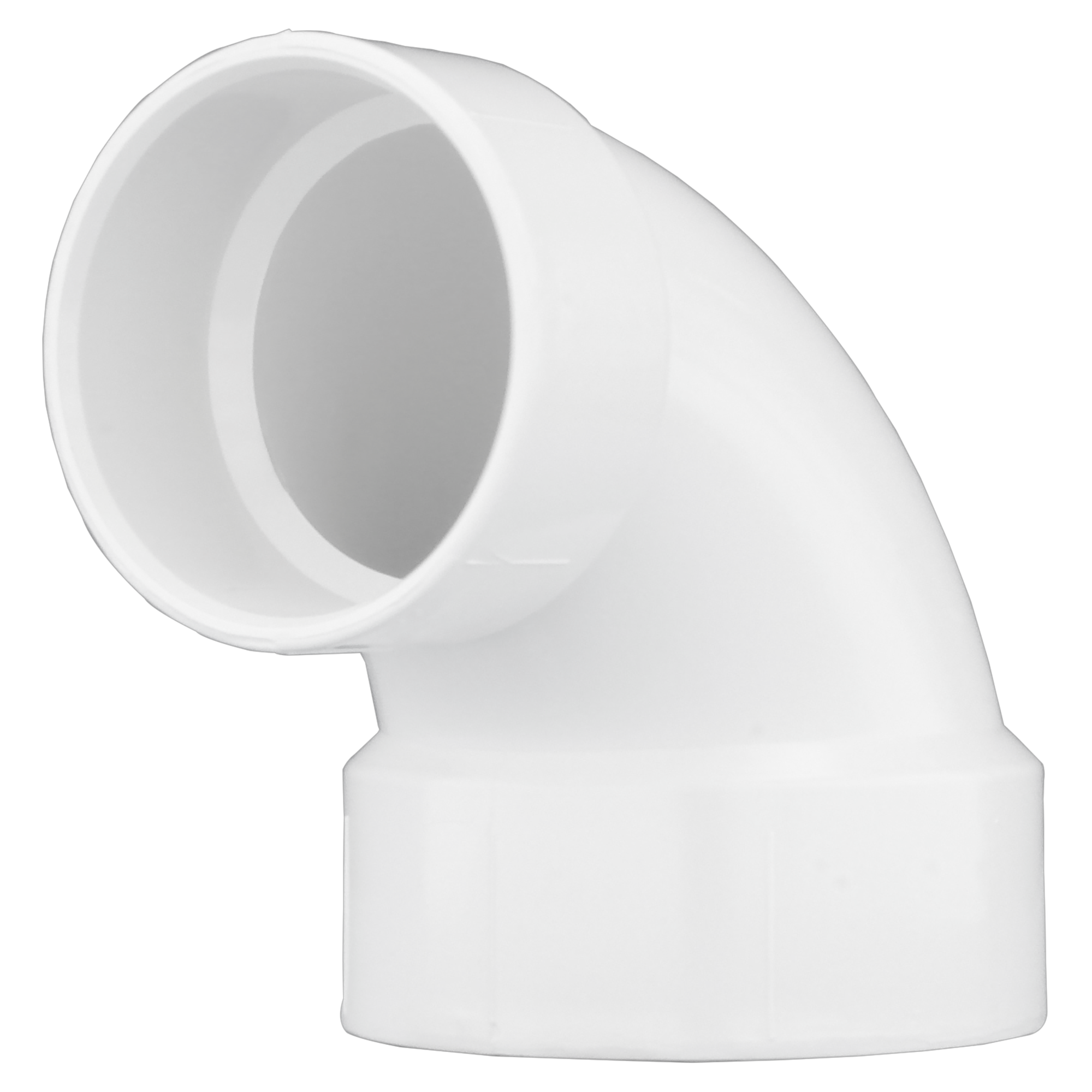

Charlotte Pipe PVC-329-3X4 Pvc Dwv Reducing Closet Bend

Product Description

The CHARLOTTE PIPE PVC-329-3X4 is a reducing closet bend fitting for PVC drain, waste, and vent (DWV) systems. It transitions from a 3-inch hub inlet to a 4-inch hub outlet in a 90-degree closet bend configuration, directing waste flow from a toilet flange down into the drain line below. This fitting is designed for gravity-fed, non-pressure waste elimination systems and is rated for service up to 140 degrees F. Plumbers and pipefitters install this fitting during rough-in of residential and light commercial bathroom plumbing. PVC construction keeps the fitting lightweight and straightforward to handle on the job.

This reducing closet bend is used in residential and light commercial DWV rough-in applications where the drain line transitions from a 4-inch main to a 3-inch closet flange connection, or where code-approved 3-inch toilet drain configurations are used. The hub-by-hub end connections accept solvent cement joining, which is the standard installation method. It can also be adapted for threaded, flanged, or roll-grooved connections depending on system requirements. Manufactured in the USA by Charlotte Pipe, this fitting suits new construction and renovation plumbing projects alike.

Key Features

• Reducing hub x hub configuration transitions 3-inch to 4-inch within a single closet bend fitting
• PVC material is lightweight and requires no specialized cutting tools
• Compatible with solvent cementing, threading, flanging, and roll-grooved joining methods
• Rated for non-pressure DWV service up to 140 degrees F
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement and new-installation fitting for residential and light commercial PVC DWV gravity drain systems using hub-by-hub solvent-weld connections.

Installation Notes

Installation is performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local amendments. Shut off water supply and isolate the drain system before beginning work. Clean and dry all hub surfaces before applying PVC primer and solvent cement per the cement manufacturer's instructions. Do not use this fitting in pressurized or high-temperature systems above 140 degrees F.

Technical Specifications

• Material: PVC
• System Type: DWV (Drain, Waste, Vent) Non-Pressure
• Inlet Size: 3 inches
• Outlet Size: 4 inches
• Connection Type: Hub x Hub (Solvent Weld)
• Max Temperature: 140 degrees F
• Country of Origin: USA
• UPC: 611942034307

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-329-3X4
