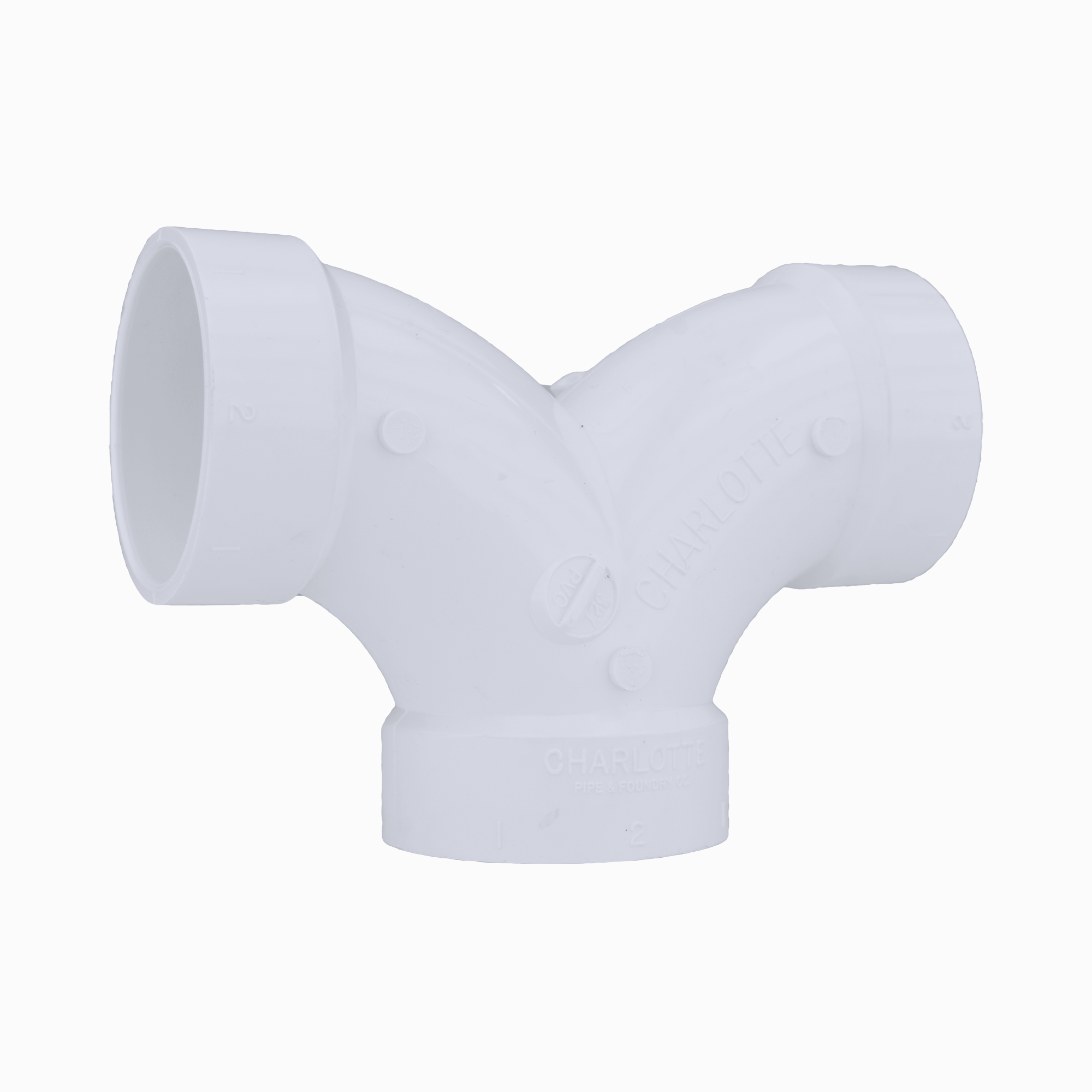

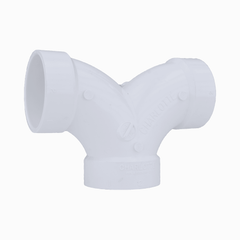

Charlotte Pipe PVC-327-2IN 2 in Pvc Dwv 90 Twin Elbow

Product Description

The CHARLOTTE PIPE PVC-327-2IN is a 2-inch PVC DWV double 1/4 bend, also called a 90-degree twin elbow, designed for drain, waste, and vent piping systems. This fitting routes two drain lines into a single run using a gravity-fed, non-pressure configuration. PVC construction keeps the fitting lightweight and easy to handle on the jobsite. Rated for service up to 140 degrees F, it is suited for standard residential and light commercial DWV applications. Licensed plumbers and pipefitters install this fitting using solvent cement, with no special cutting tools required.

This fitting is used in gravity-fed drain, waste, and vent systems where two branch lines must converge. Typical applications include back-to-back sink drain configurations, wet-wall rough-in work, and multi-fixture drain assemblies in residential bathrooms, kitchens, and utility spaces. Because it handles both branches in a single body, it reduces the number of joints needed in tight framing bays. It is not rated for pressure service and should not be used in pressurized water supply lines.

Key Features

• Double 1/4 bend geometry combines two 90-degree turns into one fitting, reducing joint count
• PVC material is lightweight, corrosion-resistant, and compatible with solvent cement joining
• Non-pressure DWV rating for gravity-fed drain, waste, and vent service
• Rated for continuous service up to 140 degrees F
• Compatible with solvent cementing, threading, flanging, and roll-grooved joining methods
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 2-inch PVC DWV piping systems operating under gravity-fed, non-pressure conditions.

Installation Notes

Installation is performed by licensed plumbers in accordance with the International Plumbing Code and applicable local codes. Before joining, deburr and clean the pipe end, apply PVC primer, and follow with solvent cement per the cement manufacturer's instructions. This fitting is not rated for pressure service and must not be installed in supply lines. Allow adequate cure time before introducing flow.

Technical Specifications

• Pipe Size: 2 inches
• Material: PVC
• Fitting Type: Double 1/4 Bend 90-Degree Twin Elbow
• System Type: DWV (Drain, Waste, Vent) Non-Pressure
• Maximum Temperature: 140 degrees F
• Joining Method: Solvent Cement, Threading, Flanging, Roll-Grooved
• Country of Origin: USA
• UPC: 611942034277

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-327-2IN
