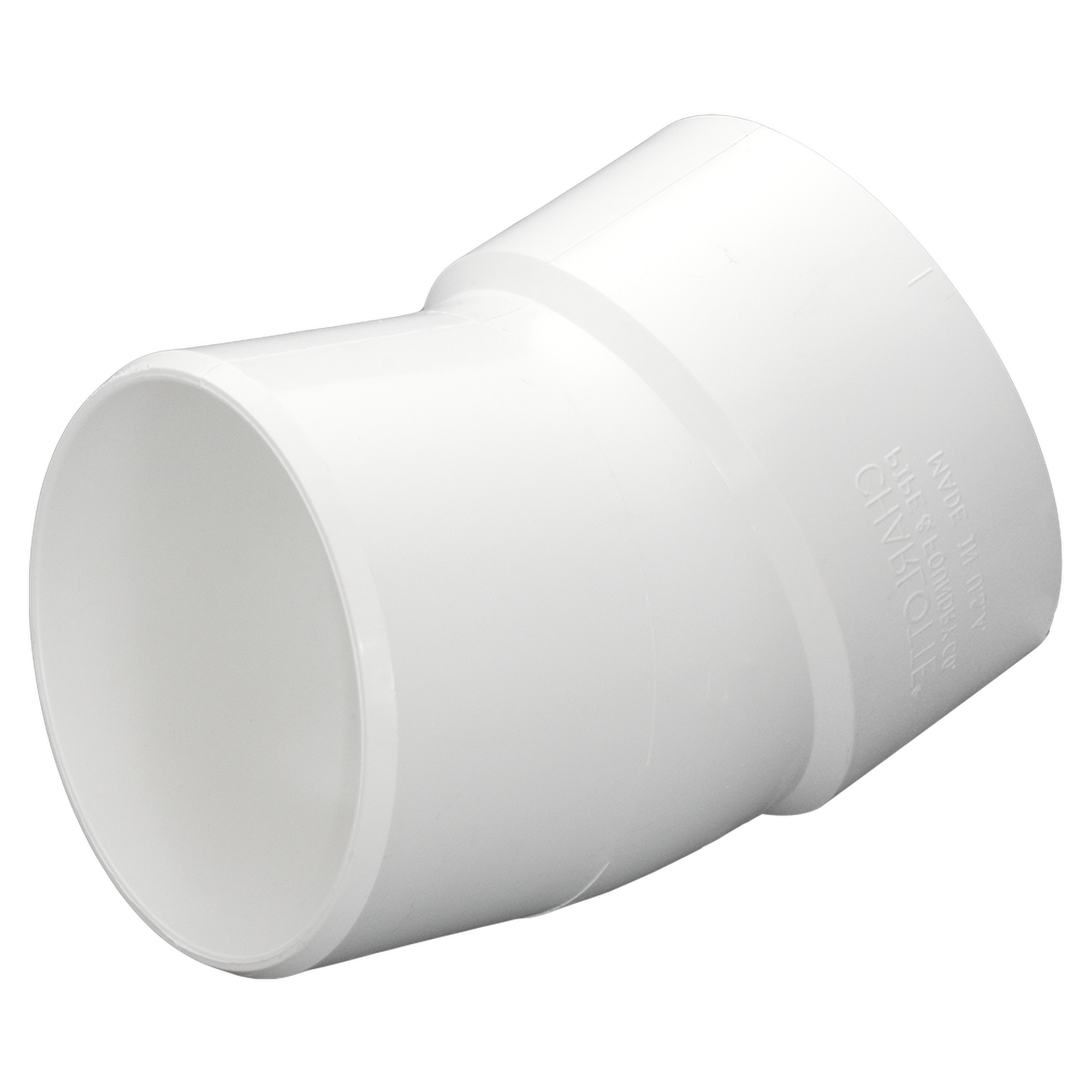

Charlotte Pipe PVC-326-8IN 8 Inch Pvc Dwv Street Elbow

Product Description

The CHARLOTTE PIPE PVC-326-8IN is an 8-inch PVC Schedule 40 DWV 1/16 bend 22-degree street elbow fitting designed for drain, waste, and vent systems. It uses solvent weld joints and is fabricated to meet ASTM F 1866 requirements. This fitting redirects flow at a 22-degree angle within gravity-drainage piping runs. It is installed by licensed plumbers on residential and light commercial DWV systems. Charlotte Pipe manufactures this fitting in the USA and holds NSF listing, making it a code-compliant choice for new construction and retrofit drainage work.

This fitting is suited for 8-inch PVC DWV piping systems in residential and commercial applications. The street configuration means one end is a spigot that inserts directly into a hub, reducing the need for an additional coupling at the connection point. It is typically used in horizontal drain runs, offsets, and transitions where a shallow change in direction is required. Installation must follow current Charlotte Pipe published instructions.

Key Features

• 22-degree directional change for shallow offsets in drain and waste lines
• Street fitting design with one spigot end for direct hub-to-hub connection
• PVC Schedule 40 construction for durability in gravity DWV service
• Solvent weld joint for a permanent, leak-resistant bond
• ASTM F 1866 compliant fabricated fitting
• NSF listed and manufactured in the USA

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 8-inch PVC Schedule 40 DWV piping systems. Compatible with standard 8-inch PVC DWV hub and spigot configurations using solvent weld cement.

Installation Notes

Installation is performed by a licensed plumber in accordance with the International Plumbing Code and applicable local codes. Shut off and drain the affected piping section before cutting into an existing line. Use a PVC solvent weld primer and cement rated for Schedule 40 DWV fittings, and follow manufacturer cure times before restoring flow. Do not apply mechanical force or torque to the joint during the cure period.

Technical Specifications

• Material: PVC Schedule 40
• Pipe Size: 8 inches
• Fitting Type: 1/16 Bend Street Elbow (22 degrees)
• Joint Type: Solvent Weld
• System Type: DWV (Drain, Waste, Vent)
• Standard: ASTM F 1866
• Listing: NSF Listed
• Country of Origin: USA
• UPC: 611942122349

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-326-8IN
