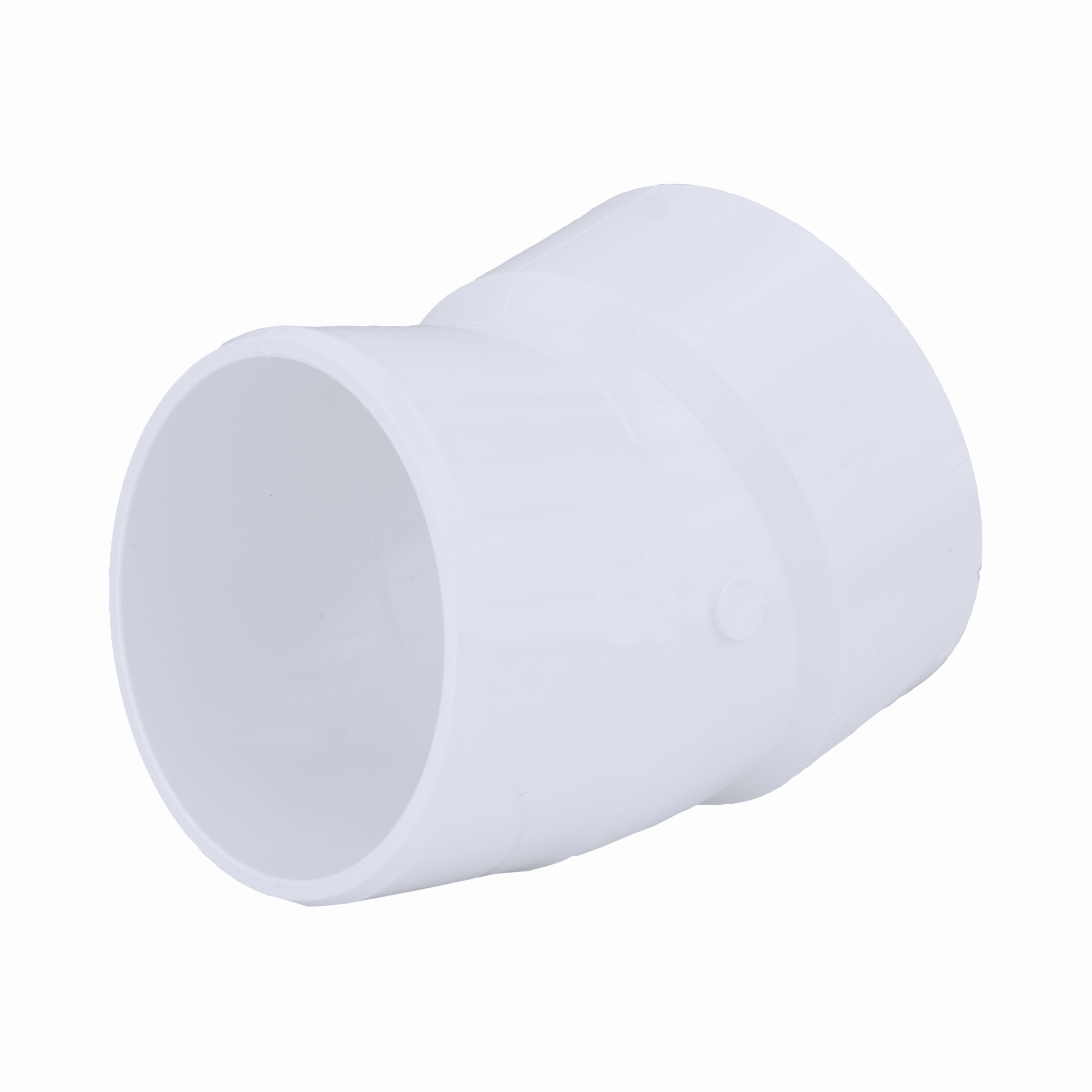

Charlotte Pipe PVC-326-4IN 4 Inch Pvc Dwv Street Elbow

Product Description

The CHARLOTTE PIPE PVC-326-4IN is a 4-inch PVC DWV 1/16 bend street elbow, also referred to as a 22-degree street ell, designed for drain, waste, and vent applications in non-pressure, gravity-fed systems. This fitting accepts a spigot on one end and a socket on the other, allowing it to connect directly into a hub fitting without an additional coupling. Rated for temperatures not exceeding 140 degrees F, it is suited for standard residential and light commercial drain and vent installations. Lightweight PVC construction makes handling and positioning straightforward during rough-in.

This street elbow is used in gravity-fed DWV piping systems where a gradual 22.5-degree change of direction is needed in drain, waste, or vent runs. Typical applications include residential drain lines, vent stacks, and waste branches inside walls, floors, and ceiling cavities. The street configuration reduces the number of fittings required when changing direction off an existing hub, keeping the run compact. It is installed by licensed plumbers and experienced pipefitters during new construction and remodel work.

Key Features

• 4-inch diameter PVC DWV street elbow provides a 22.5-degree change of direction
• Street fitting design with one spigot end and one socket end eliminates the need for an extra coupling
• Compatible with solvent cement joining for a secure, leak-resistant connection
• Rated for non-pressure gravity-fed systems up to 140 degrees F
• Lightweight PVC requires no special cutting tools and no threading equipment
• Manufactured in the USA by Charlotte Pipe

Compatibility

Designed as an OEM-style replacement and standard-use fitting for 4-inch PVC DWV piping systems in residential and light commercial drain, waste, and vent applications.

Installation Notes

Installation is performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Before beginning work, shut off the water supply and ensure the drain line is empty and dry. Solvent cement the spigot end into an existing hub fitting and the socket end onto the next pipe section, following the cement manufacturer's open and set times for the ambient temperature. Do not apply heat to accelerate curing, and do not use this fitting in pressurized water supply lines.

Technical Specifications

• Pipe Size: 4 inches
• Fitting Type: 1/16 Bend 22-Degree Street Elbow
• Material: PVC
• System Type: DWV (Drain, Waste, Vent) Non-Pressure
• Maximum Temperature Rating: 140 degrees F
• Joining Method: Solvent Cement
• Country of Origin: USA
• UPC: 611942034246

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-326-4IN
