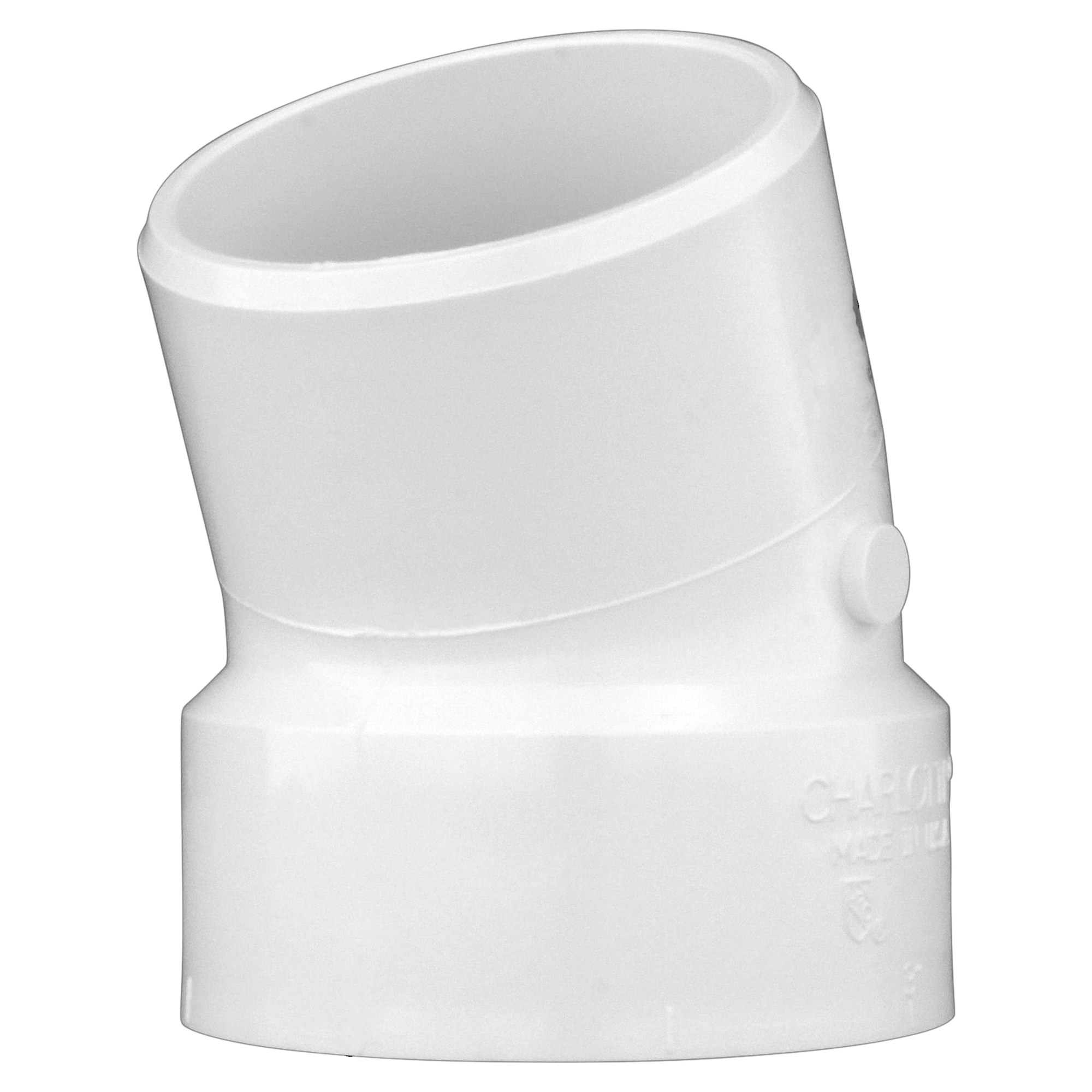

Charlotte Pipe PVC-326-3IN Pvc Dwv Street Elbow 3 Inches

Product Description

The CHARLOTTE PIPE PVC-326-3IN is a 3-inch PVC DWV 1/16 bend 22-degree street elbow designed for drain, waste, and vent applications in non-pressure, gravity-fed waste elimination systems. Made from PVC, it is lightweight and straightforward to install without specialized cutting tools. This fitting is rated for service temperatures up to 140 degrees F and is manufactured in the USA. Licensed plumbers and pipefitters install this fitting during rough-in work on residential and light commercial DWV systems where a gradual 22-degree directional change is required in the drain line.

This street elbow fits into gravity-fed DWV piping configurations where one end inserts directly into a hub fitting and the other end accepts a standard spigot, eliminating the need for an extra coupling in tight spaces. It is suited for residential new construction and renovation projects, as well as light commercial plumbing where PVC DWV pipe is specified. The street configuration allows compact inline directional changes within a drain or vent run.

Key Features

• 3-inch nominal size for standard DWV drain and vent lines
• 22-degree (1/16 bend) street elbow geometry for gradual directional changes
• Street configuration: one spigot end, one hub end, reducing the need for additional couplings
• Compatible with solvent cement, threading, flanging, and roll-grooved joining methods
• Rated for non-pressure gravity-fed systems up to 140 degrees F
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement and standard-fit component for residential and light commercial PVC DWV piping systems using 3-inch nominal pipe.

Installation Notes

Installation is performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off all water supply and ensure the drain line is clear and dry before cutting or joining. Solvent cement joining requires proper primer and cement application per manufacturer instructions and adequate cure time before restoring flow. This fitting is rated for non-pressure DWV service only and must not be used in pressurized water supply lines.

Technical Specifications

• Pipe Size: 3 inches
• Fitting Type: 1/16 Bend 22-Degree Street Elbow
• Material: PVC
• Application: Drain, Waste, and Vent (DWV), Non-Pressure Systems
• Maximum Temperature: 140 degrees F
• Country of Origin: USA
• UPC: 611942034239

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-326-3IN
