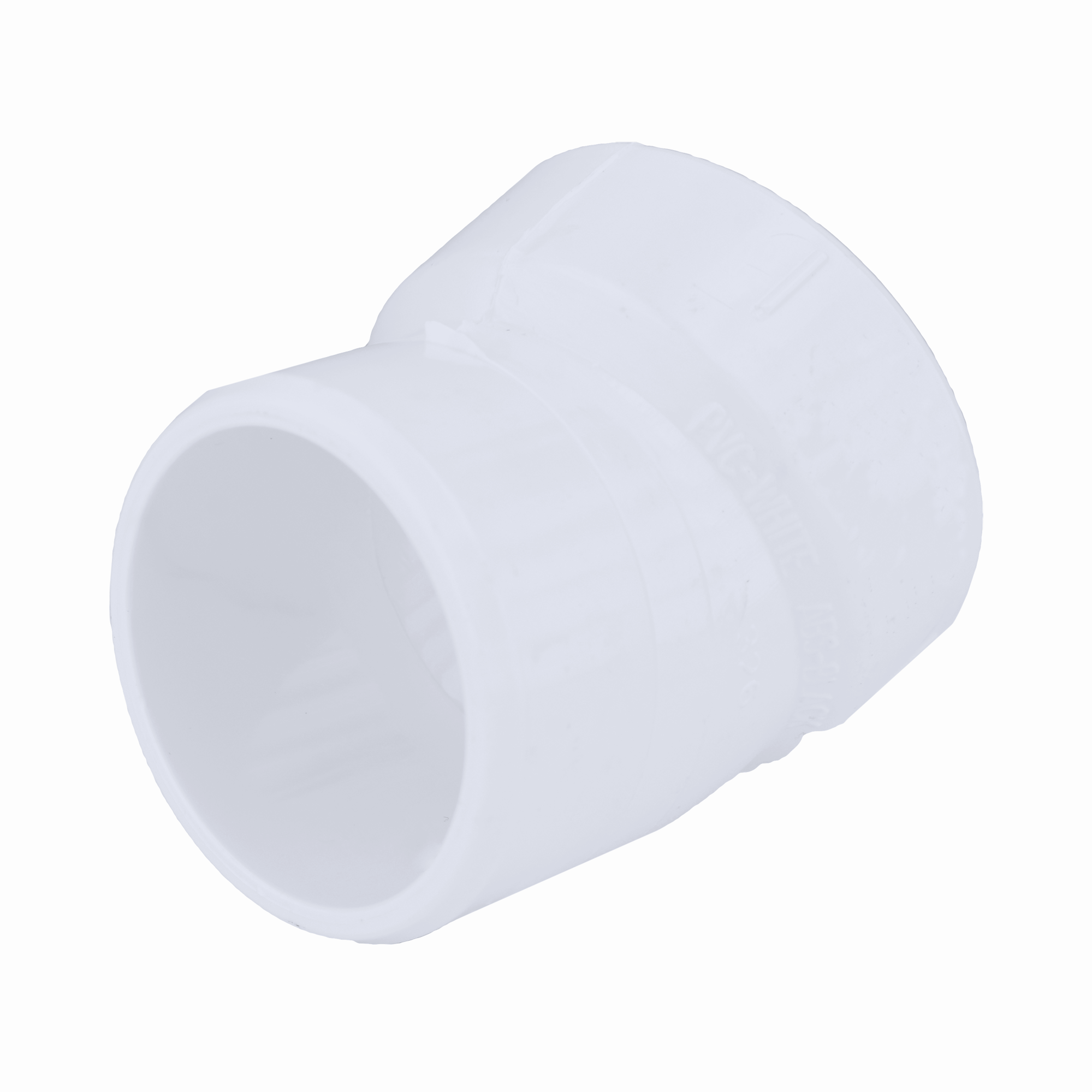

Charlotte Pipe PVC-326-1-1/2 Pvc Dwv 1.5 in Street Elbow

Product Description

The CHARLOTTE PIPE PVC-326-1-1/2 is a 1-1/2 inch PVC DWV 1/16 bend street elbow designed for drain, waste, and vent piping systems. This 22.5-degree deflection fitting directs flow in gravity-fed waste elimination systems and is rated for non-pressure applications where temperatures will not exceed 140 degrees F. The street configuration means one end accepts a spigot connection, allowing direct insertion into a hub fitting without a coupling. Licensed plumbers and pipefitters install this fitting in residential and light commercial DWV rough-in work.

This fitting is intended for gravity-fed drain, waste, and vent applications in residential and commercial construction. It is not rated for pressure service. The lightweight PVC construction makes it well suited for tight ceiling and wall cavity runs where a shallow change in direction is needed. No special cutting tools are required, and the fitting is joined using standard PVC solvent cement compatible with Schedule 40 DWV systems. All Charlotte Pipe PVC DWV fittings are manufactured in the USA.

Key Features

• 22.5-degree (1/16 bend) street elbow for shallow directional changes in DWV runs
• Street configuration allows direct spigot-to-hub connection, eliminating an extra coupling
• Rated for non-pressure gravity drain, waste, and vent service up to 140 degrees F
• Compatible with solvent cement joining — no special tools required for cutting or installation
• Lightweight PVC construction simplifies handling and reduces overall system weight
• Manufactured in the USA by Charlotte Pipe

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-1/2 inch PVC DWV piping systems in non-pressure gravity-fed drain, waste, and vent applications.

Installation Notes

Installation is performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off water service and ensure the drain line is clear and dry before cutting into an existing system. Clean and dry all mating surfaces, apply PVC primer and solvent cement per the cement manufacturer's instructions, and allow full cure time before restoring flow. Do not use this fitting on pressurized supply lines or in applications where temperatures exceed 140 degrees F.

Technical Specifications

• Pipe Size: 1-1/2 inches
• Fitting Type: 1/16 Bend Street Elbow (22.5 degrees)
• System Type: DWV — Drain, Waste, and Vent (Non-Pressure)
• Material: PVC
• Maximum Temperature Rating: 140 degrees F
• Joining Method: Solvent Cement
• Country of Origin: USA
• UPC: 611942034215

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-326-1-1/2
