Charlotte Pipe PVC-324-4IN Pvc Dwv 1/16 Bend 4 Inches

Product Description

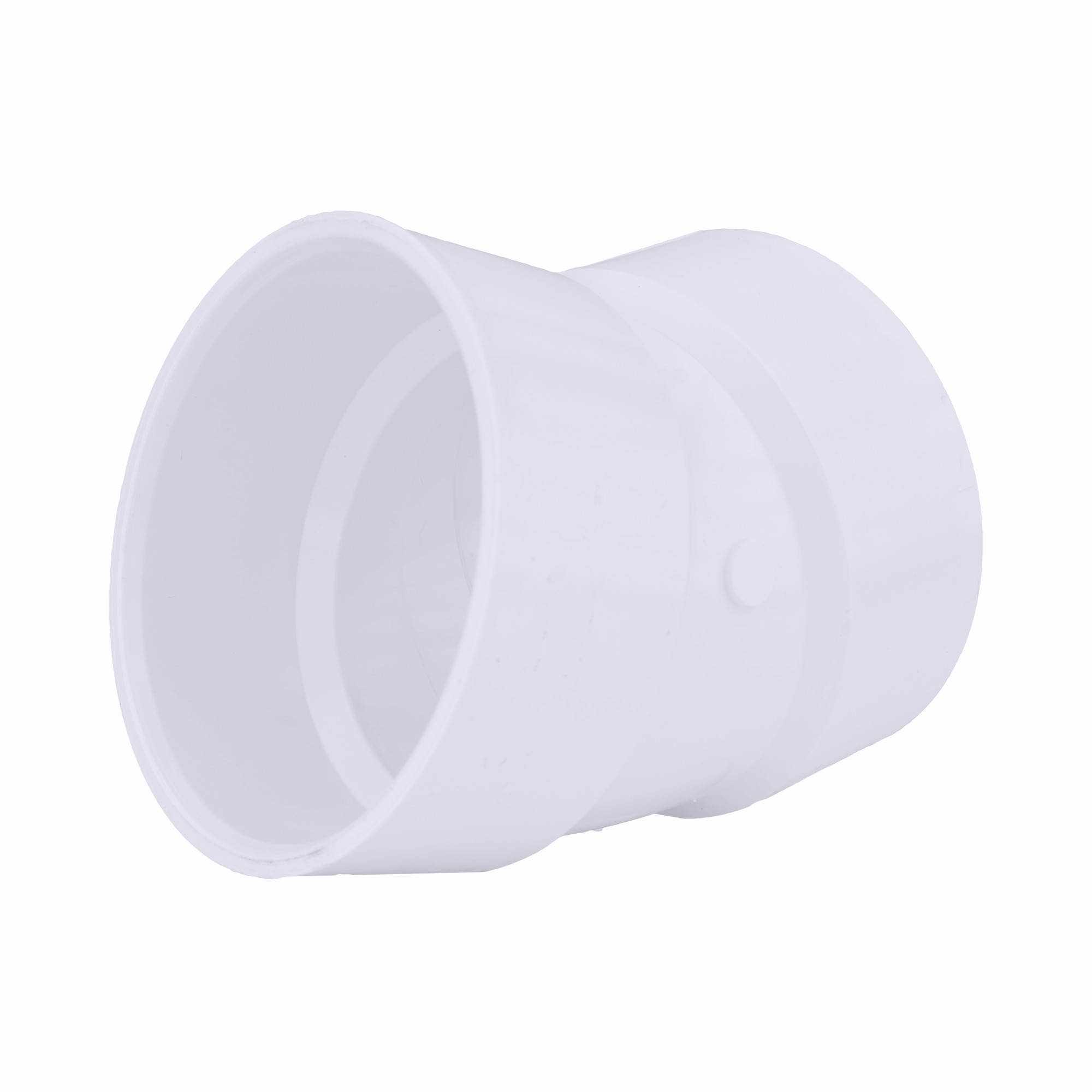

The CHARLOTTE PIPE PVC-324-4IN is a 4-inch PVC DWV 1/16 bend (22-degree elbow) with hub x hub connections, designed for drain, waste, and vent applications in gravity-fed, non-pressure piping systems. This fitting handles directional changes in horizontal and vertical drain runs and is rated for service in systems where temperatures will not exceed 140 degrees F. PVC construction keeps weight low and simplifies handling on the job site. Solvent cement joining requires no specialized cutting tools, making installation straightforward for licensed plumbers and experienced pipe fitters working on residential and light commercial projects.

This fitting is suited for new construction and retrofit DWV installations in residential and commercial buildings. It is used wherever a gradual 22-degree change of direction is needed in a drain or vent line. The hub x hub end configuration accepts standard 4-inch PVC DWV pipe on both ends. Because this is a non-pressure gravity-flow fitting, it is not intended for pressurized water supply lines or outdoor pressure drainage applications. Plumbers working to IPC and local plumbing code requirements will find this fitting compatible with standard DWV system design practices.

Key Features

• 22-degree (1/16 bend) sweep angle for gradual directional changes in drain and vent lines
• Hub x hub end connections accept standard 4-inch PVC DWV pipe with solvent cement joining
• Rated for non-pressure, gravity-fed DWV systems up to 140 degrees F
• Lightweight PVC construction simplifies handling and reduces installation time
• No special cutting tools required — compatible with standard solvent cementing, threading, flanging, and roll-grooved joining methods
• Manufactured in the USA by Charlotte Pipe

Compatibility

Designed as an OEM-style replacement or new-construction fitting for 4-inch PVC DWV piping systems operating under gravity-flow, non-pressure conditions.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the applicable IPC or local plumbing code. Shut off all flow to the affected drain line and verify the system is depressurized before cutting into existing pipe. Clean and dry all mating surfaces before applying PVC solvent cement, and allow full cure time before restoring flow. Do not use this fitting in pressurized supply lines or in systems where operating temperatures exceed 140 degrees F.

Technical Specifications

• Pipe Size: 4 inches
• Fitting Angle: 22 degrees (1/16 bend)
• End Connections: Hub x Hub
• Material: PVC
• System Type: DWV (Drain, Waste, Vent) — non-pressure, gravity-fed
• Maximum Temperature Rating: 140 degrees F
• Joining Method: Solvent cement, threading, flanging, roll-grooved
• Country of Origin: USA
• UPC: 611942034192

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-324-4IN
