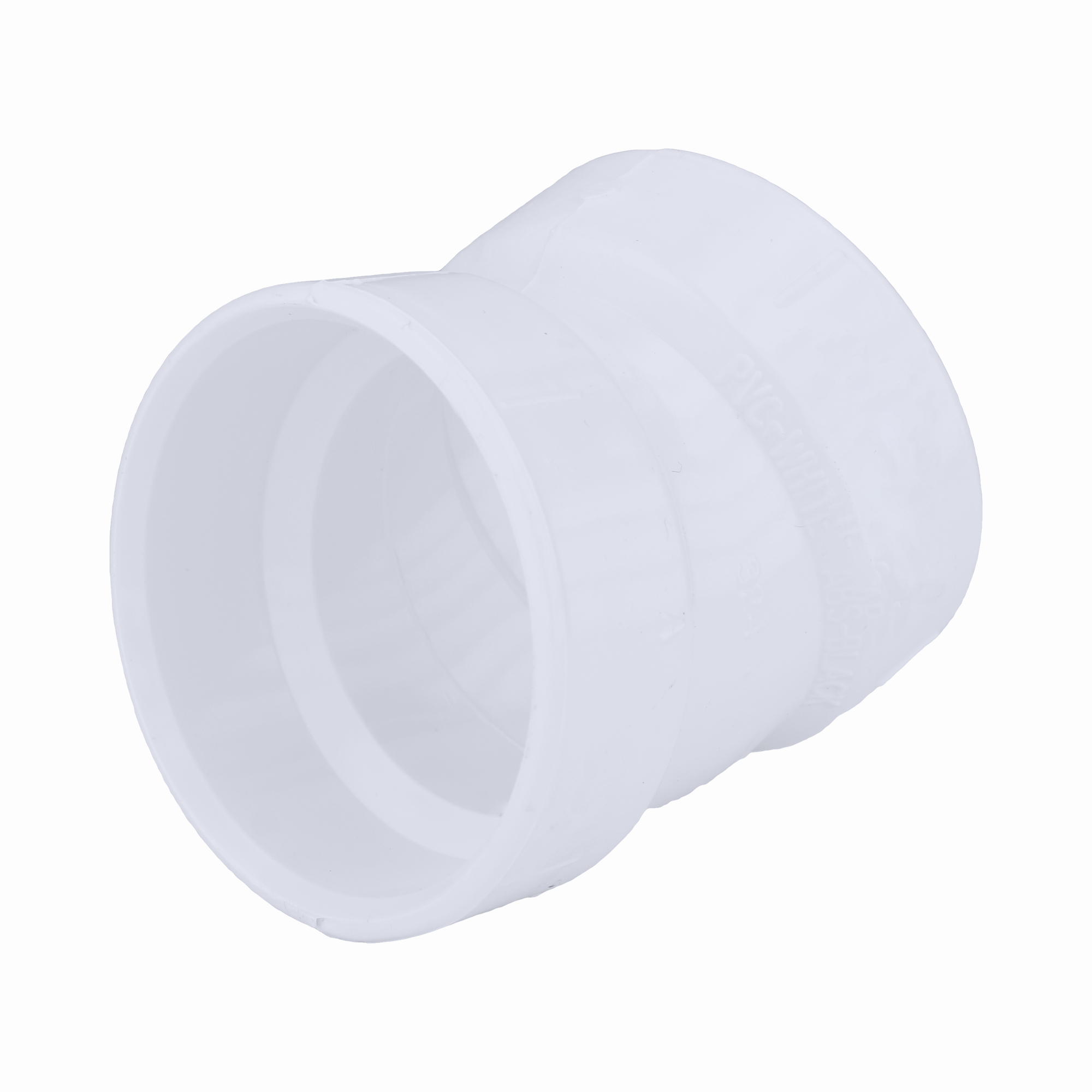

Charlotte Pipe PVC-324-2IN Pvc Dwv 1/16 Bend 2 Inch Hub

Product Description

The CHARLOTTE PIPE PVC-324-2IN is a 2-inch PVC DWV 1/16 bend (22-degree elbow) fitting with hub x hub connections. It is designed for drain, waste, and vent systems that operate as gravity-fed, non-pressure applications. The fitting is rated for temperatures up to 140 degrees F and is manufactured from lightweight PVC for straightforward handling and installation. Licensed plumbers and pipefitters install this type of fitting during rough-in work on residential and light commercial drain systems. It joins using standard solvent cement, making installation fast and reliable without special cutting tools.

This fitting is suited for use in residential and commercial DWV piping systems where a gradual 22-degree directional change is needed. Common applications include horizontal drain runs, branch offsets, and gravity-waste routing within wall, floor, and ceiling assemblies. The hub x hub socket ends accept standard 2-inch PVC DWV pipe. Because it is a non-pressure fitting, it is not rated for supply lines or pressurized applications. All Charlotte Pipe products are manufactured in the USA.

Key Features

• 22-degree (1/16 bend) sweep for gradual directional changes in DWV runs
• Hub x hub socket ends for solvent-cement joining to standard 2-inch PVC DWV pipe
• Rated for non-pressure gravity-fed drain, waste, and vent service
• Maximum temperature rating of 140 degrees F
• Lightweight PVC construction requires no special cutting tools
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement and standard fitting for 2-inch PVC DWV piping systems used in residential and commercial drain, waste, and vent applications.

Installation Notes

Installation is performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off water supply and verify the drain system is depressurized before beginning work. Clean and deburr pipe ends, apply PVC primer followed by solvent cement rated for DWV service, and hold the joint firmly for the manufacturer-recommended cure time before resuming flow. Do not use this fitting in pressurized supply or high-temperature applications.

Technical Specifications

• Pipe Size: 2 inches
• Bend Angle: 22 degrees (1/16 bend)
• End Type: Hub x Hub
• Material: PVC
• System Type: DWV (Drain, Waste, Vent) - Non-Pressure
• Maximum Temperature: 140 degrees F
• Joining Method: Solvent cement, threading, flanging, roll-grooved
• Country of Origin: USA
• UPC: 611942034178

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-324-2IN
