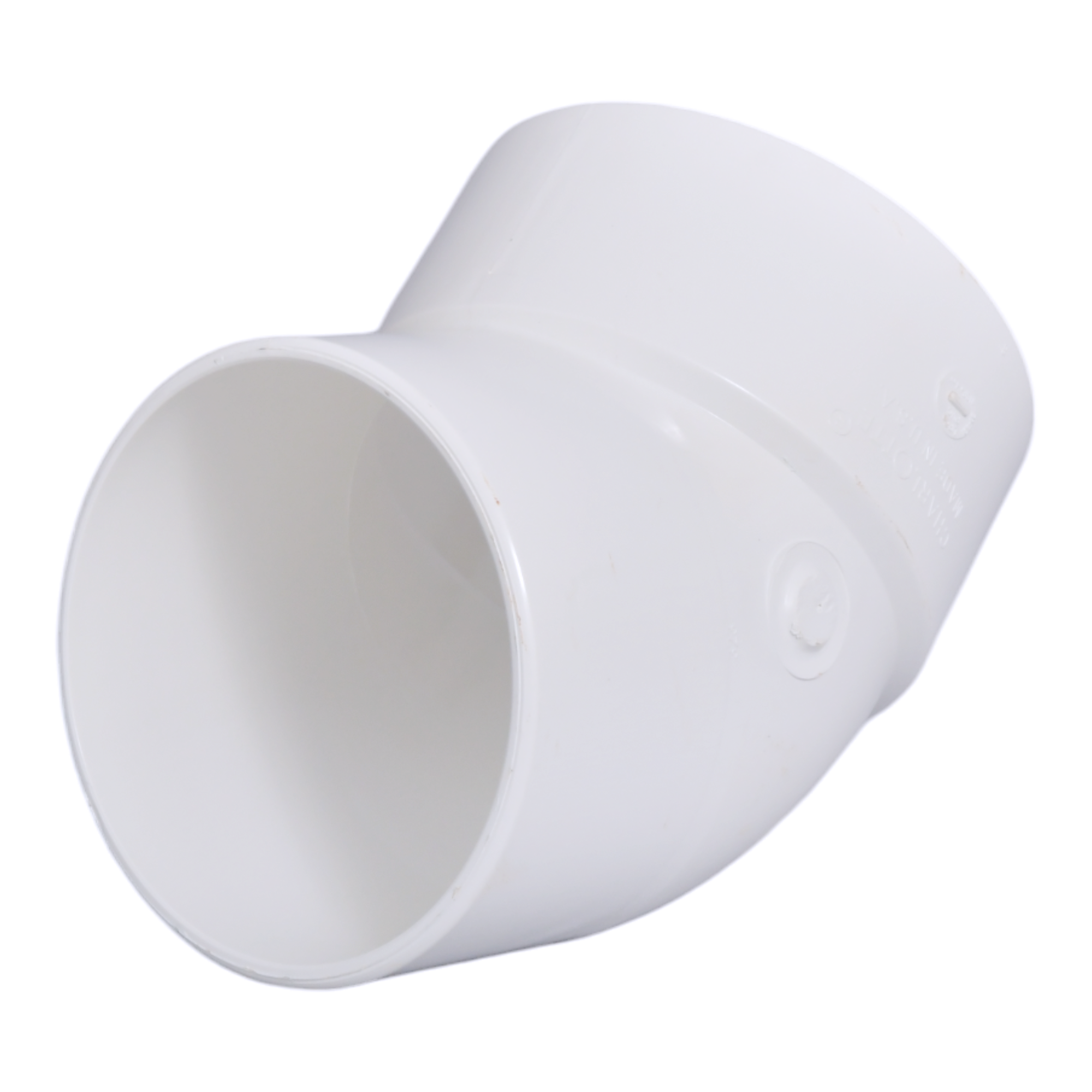

Charlotte Pipe PVC-323-8IN Pvc Dwv 8 in Street Elbow

Product Description

The CHARLOTTE PIPE PVC-323-8IN is an 8-inch PVC DWV 1/8 bend 45-degree street elbow designed for drain, waste, and vent applications in gravity-fed, non-pressure piping systems. This fitting handles directional changes in DWV lines where one end slips directly into a hub, eliminating the need for an additional coupling. Rated for systems where temperatures will not exceed 140 degrees F, it is manufactured from PVC for a lightweight, corrosion-resistant build. Plumbers and pipefitters install this fitting using standard solvent cement joining. No special cutting tools are required, and the material accepts threading, flanging, and roll-grooved joining methods as well.

This street elbow is suited for residential and commercial DWV piping systems where a 45-degree directional change is needed on an 8-inch drain or vent line. Common install scenarios include horizontal drain runs, stack offsets, and vent routing changes in new construction and remodel work. The street configuration — with one spigot (male) end and one hub (female) end — allows direct connection into a fitting hub without an intermediate pipe section, saving material and labor in tight spaces.

Key Features

• Street configuration with one spigot end and one hub end for direct hub-to-hub installation
• 45-degree (1/8 bend) sweep for gradual directional change in drain, waste, and vent lines
• Compatible with solvent cement, threaded, flanged, and roll-grooved joining methods
• Rated for non-pressure DWV service up to 140 degrees F
• Lightweight PVC construction requires no special cutting tools
• Manufactured in the USA by Charlotte Pipe

Compatibility

Designed as an OEM-style replacement and standard fitting for 8-inch PVC DWV piping systems in non-pressure drain, waste, and vent applications.

Installation Notes

Installation is performed by licensed plumbers in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off all upstream flow and verify the line is drained before cutting into an existing system. Clean and dry all mating surfaces before applying solvent cement, and allow full cure time before restoring flow per the cement manufacturer's instructions. Do not use this fitting in pressurized water supply lines or in systems where operating temperatures exceed 140 degrees F.

Technical Specifications

• Material: PVC
• Pipe Size: 8 inches
• Bend Angle: 45 degrees (1/8 bend)
• End Configuration: Street (spigot x hub)
• Application: Drain, Waste, and Vent (DWV) non-pressure systems
• Maximum Temperature Rating: 140 degrees F
• Joining Method: Solvent cement, threaded, flanged, roll-grooved
• Country of Origin: USA
• UPC: 611942034130

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-323-8IN
