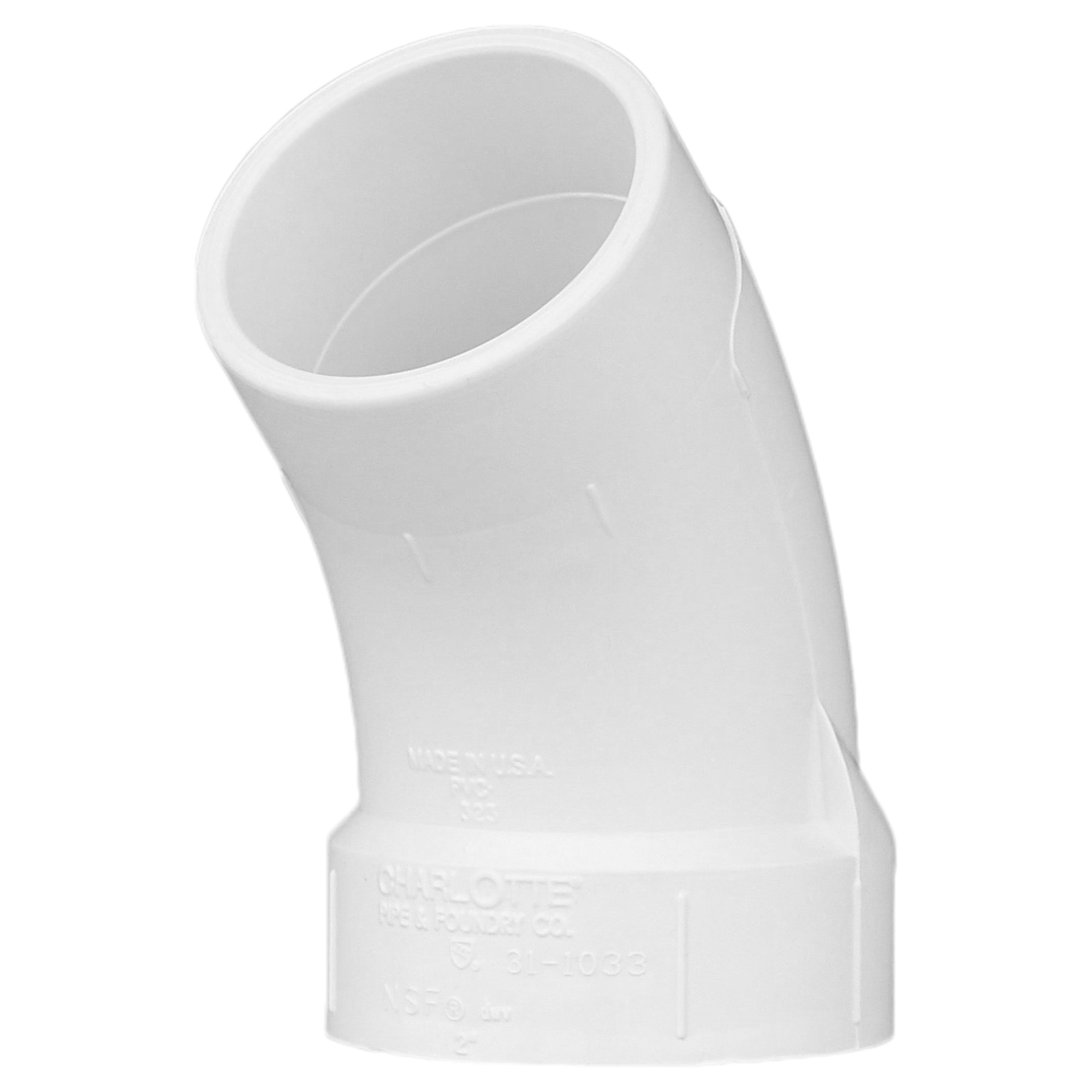

Charlotte Pipe PVC-323-2IN Pvc Dwv 45 Street Elbow 2 in

Product Description

The CHARLOTTE PIPE PVC-323-2IN is a 2-inch PVC DWV 1/8 bend 45-degree street elbow designed for drain, waste, and vent piping systems. This fitting is engineered for gravity-fed waste elimination in non-pressure applications where operating temperatures do not exceed 140 degrees F. PVC construction keeps the fitting lightweight and easy to handle on the job. Licensed plumbers use this fitting in residential and light commercial DWV rough-in work where a 45-degree directional change is needed in a street configuration, allowing direct insertion into a hub fitting without a separate coupling.

This elbow is suited for residential and commercial drain, waste, and vent systems installed in accordance with the International Plumbing Code and applicable local codes. The street end inserts directly into a standard DWV hub, making it useful in tight spaces where a standard elbow and coupling combination would not fit. It is appropriate for horizontal drain runs, vertical stack transitions, and vent piping where a 45-degree offset is required.

Key Features

• 2-inch nominal size fits standard PVC DWV hub fittings and pipe
• 45-degree 1/8 bend street configuration eliminates the need for an additional coupling at one end
• Rated for non-pressure gravity-fed drain, waste, and vent service up to 140 degrees F
• Compatible with solvent cement joining for a fast, reliable connection
• Lightweight PVC construction reduces handling fatigue and speeds installation
• Manufactured in the USA by Charlotte Pipe

Compatibility

Designed as an OEM-style replacement and standard-use fitting for 2-inch PVC DWV piping systems in residential and commercial drain, waste, and vent applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code and all applicable local codes. Shut off water supply and ensure the drain system is empty before cutting into an existing line. Clean and dry all mating surfaces before applying PVC solvent cement, and allow full cure time before restoring flow. Do not use this fitting in pressure piping systems or in applications where temperatures exceed 140 degrees F.

Technical Specifications

• Pipe Size: 2 inches
• Fitting Angle: 45 degrees (1/8 bend)
• End Configuration: Street (spigot x hub)
• System Type: Drain, Waste, and Vent (DWV), non-pressure
• Maximum Temperature: 140 degrees F
• Material: PVC
• Joining Method: Solvent cement, threading, flanging, roll-grooved
• Country of Origin: USA
• UPC: 611942034093

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-323-2IN
