Charlotte Pipe pvc-323-12in Pvc Street Bend 45 Degree 12 Inch

Product Description

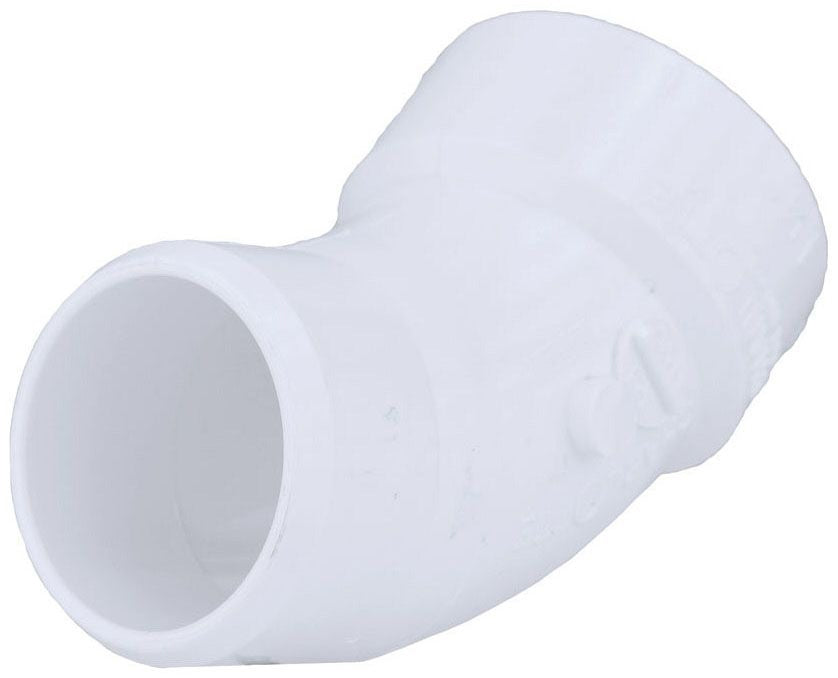

The CHARLOTTE PIPE pvc-323-12in is a 12-inch PVC 1/8 street bend with a 45-degree angle, designed for gravity-drain piping systems. It features a spigot-by-hub end connection, allowing one plain end to insert directly into a hub fitting without an additional coupling. Rated to 140 degrees F, it meets Schedule 40 wall thickness and is manufactured to ASTM D1784, D1785, D2665, D3311, and F1866 material specifications. Licensed plumbers and drain-waste-vent installers use this fitting where a 45-degree directional change is required in larger-diameter drain lines.

This fitting is suited for residential and commercial DWV, sewer, and storm drainage applications in 12-inch diameter piping systems. The street configuration eliminates the need for an extra coupling at one end, reducing joint count in tight spaces. It carries NSF 14 certification and conforms to L-P-320A and FHA UM-79A standards, making it acceptable for use in federally inspected and municipal sewer installations where those standards are required.

Key Features

• 45-degree street bend provides directional change with spigot inlet and hub outlet in a single fitting
• Schedule 40 PVC construction rated to 140 degrees F for standard drain-line service
• NSF 14 listed and compliant with L-P-320A and FHA UM-79A applicable standards
• Meets ASTM D1784, D1785, D2665, D3311, and F1866 material specifications
• Center-to-end dimensions of 3-31/64 inches by 9-1/2 inches for accurate rough-in planning
• Designed for DWV, sewer, and storm drainage systems

Compatibility

Designed as an OEM-style replacement and standard-production fitting for 12-inch Schedule 40 PVC DWV, sewer, and storm drainage piping systems conforming to ASTM D2665 and D3311.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code. Shut off any upstream flow and ensure the pipe and fitting surfaces are clean and dry before applying PVC primer and solvent cement. The spigot end inserts into the downstream hub; verify flow direction before bonding. Do not use threaded compounds or mechanical connectors in place of solvent-cement joints on this fitting type.

Technical Specifications

• Material: PVC
• Schedule: 40
• Pipe Size: 12 inches
• Bend Angle: 45 degrees (1/8 bend)
• End Connection: Spigot x Hub
• Center-to-End Distance: 3-31/64 inches x 9-1/2 inches
• Temperature Rating: 140 degrees F
• Application: DWV, Sewer, Storm Drainage
• Certifications: NSF 14, L-P-320A, FHA UM-79A
• Material Specification: ASTM D1784, D1785, D2665, D3311, F1866

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: pvc-323-12in
