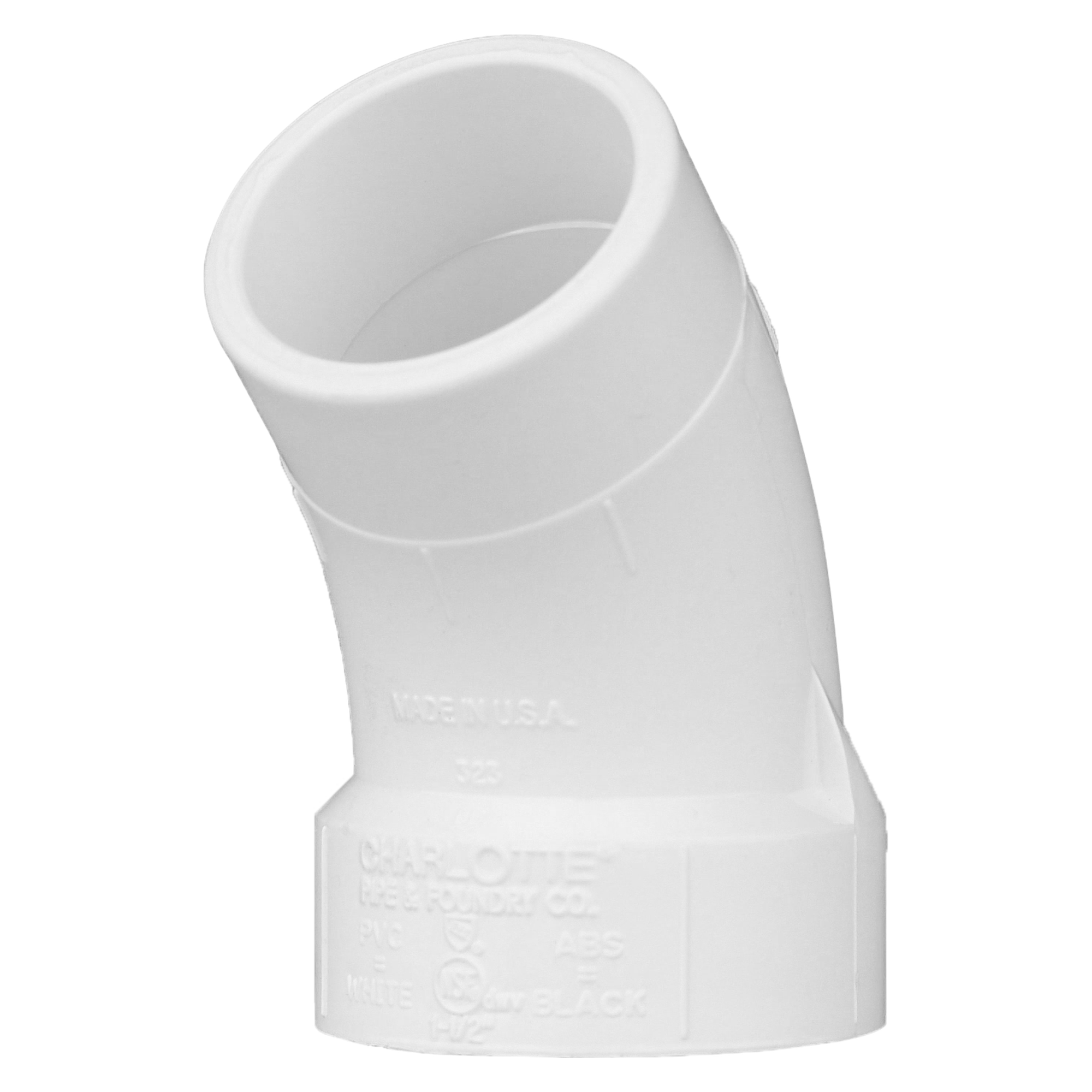

Charlotte Pipe PVC-323-1-1/2 Pvc Dwv 45 Street Elbow 1.5 in

Product Description

The CHARLOTTE PIPE PVC-323-1-1/2 is a 1.5-inch PVC DWV 1/8 bend 45-degree street elbow designed for drain, waste, and vent piping systems. This fitting is manufactured for gravity-fed, non-pressure applications where system temperatures will not exceed 140 degrees F. The street configuration means one end accepts a spigot connection directly, reducing the need for an additional coupling in tight spaces. Plumbers and pipefitters install this fitting in residential and light commercial DWV systems using standard solvent cement joining techniques. The fitting is lightweight and requires no special cutting tools.

This elbow is used wherever a 45-degree directional change is needed in a drain, waste, or vent line sized at 1.5 inches. Typical applications include lavatory drains, laundry standpipes, and vent stack offsets in residential construction and renovation. The street-end design simplifies layout in confined chases and wall cavities where back-to-back fittings would otherwise be required. Charlotte Pipe manufactures this product in the USA, making it a compliant choice for projects with domestic-content requirements.

Key Features

• 45-degree bend angle for directional changes in DWV drain and vent lines
• Street configuration on one end for direct spigot insertion without an extra coupling
• Rated for non-pressure gravity-fed systems up to 140 degrees F
• Compatible with solvent cementing, threading, flanging, and roll-grooved joining methods
• Lightweight PVC construction requires no special cutting tools
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement fitting for 1.5-inch PVC DWV piping systems used in residential and light commercial drain, waste, and vent applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and ensure the drain line is cleared before cutting into an existing system. Use an approved PVC solvent cement and primer when making solvent-welded joints, and allow full cure time before restoring flow. Do not use this fitting in pressure piping, hot water supply lines, or any system where temperatures may exceed 140 degrees F.

Technical Specifications

• Pipe Size: 1.5 inches
• Fitting Type: 1/8 Bend 45-Degree Street Elbow
• Material: PVC
• Application: Drain, Waste and Vent (DWV)
• System Type: Non-pressure, gravity-fed
• Maximum Temperature: 140 degrees F
• Country of Origin: USA
• UPC: 611942034086

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-323-1-1/2
