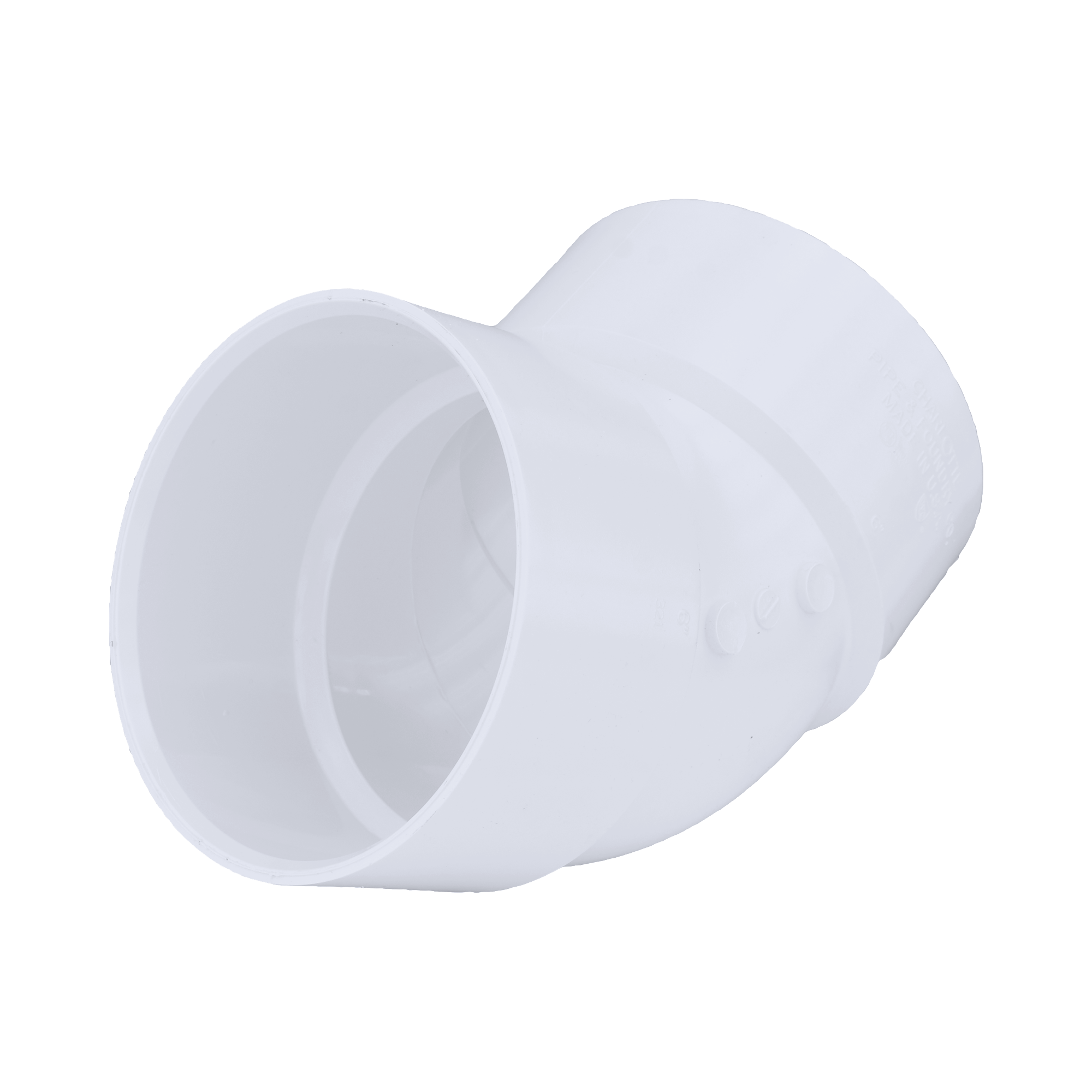

Charlotte Pipe PVC-321-6IN Pvc Dwv 45 Elbow 6 Inch

Product Description

The CHARLOTTE PIPE PVC-321-6IN is a 6-inch PVC DWV 1/8 bend 45-degree elbow fitting with hub x hub connections. It is designed for drain, waste, and vent applications in gravity-fed, non-pressure piping systems. This fitting is rated for use in systems where temperatures will not exceed 140 degrees F. Lightweight PVC construction makes handling and installation straightforward on the job site. Licensed plumbers and pipefitters install this fitting in residential and commercial DWV rough-in work using solvent cement joining.

This elbow is used in gravity-fed drain, waste, and vent systems where a 45-degree directional change is required in the piping layout. It is suited for residential new construction, renovation, and commercial plumbing projects. The hub x hub socket ends accept standard 6-inch PVC DWV pipe joined with solvent cement. No specialty cutting tools are required, and the fitting is also compatible with threading, flanging, and roll-grooved joining methods where applicable.

Key Features

• 6-inch hub x hub socket ends for solvent cement joining
• 45-degree (1/8 bend) directional change for DWV routing
• Rated for non-pressure drain, waste, and vent service up to 140 degrees F
• Compatible with threading, flanging, and roll-grooved joining methods
• Lightweight PVC construction requires no special cutting tools
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement and standard fitment for 6-inch PVC DWV piping systems in residential and commercial gravity-fed drain, waste, and vent applications.

Installation Notes

Installation is performed by licensed plumbers in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and ensure the drain system is depressurized before cutting into an existing line. Solvent cement joining requires proper primer and cement rated for PVC DWV service; follow the cement manufacturer's cure time before restoring flow. Do not use this fitting in pressurized supply lines or in systems where sustained temperatures exceed 140 degrees F.

Technical Specifications

• Pipe Size: 6 inches
• Connection Type: Hub x Hub
• Bend Angle: 45 degrees (1/8 bend)
• Material: PVC
• Application: Drain, Waste, and Vent (DWV), Non-Pressure
• Maximum Temperature: 140 degrees F
• Country of Origin: USA
• UPC: 611942034055

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-321-6IN
