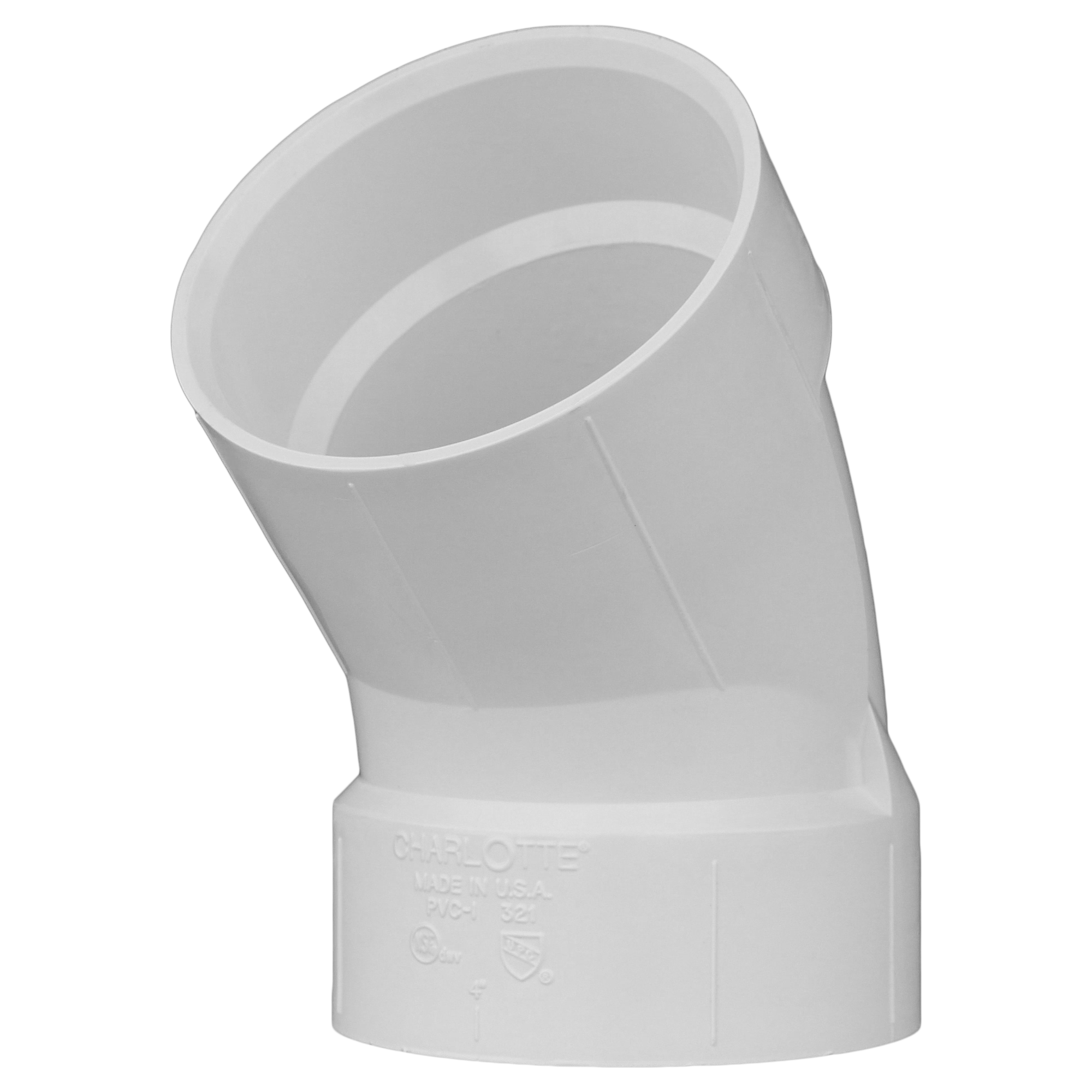

Charlotte Pipe PVC-321-4IN Pvc Dwv 45 Degree Elbow 4 in

Product Description

The CHARLOTTE PIPE PVC-321-4IN is a 4-inch PVC DWV 45-degree elbow (1/8 bend) with hub x hub end connections. This fitting is designed for drain, waste, and vent applications in gravity-fed, non-pressure piping systems. Rated for service up to 140 degrees F, it suits standard residential and light commercial DWV installations. Plumbers install this fitting where a 45-degree directional change is needed in a drain or vent line. PVC construction keeps the fitting lightweight and easy to handle on the job, and no special cutting tools are required for installation.

This elbow is intended for non-pressure gravity drain systems, including sanitary drain lines, waste stacks, and vent runs in residential and commercial construction. It is not rated for pressure service or applications where fluid temperatures exceed 140 degrees F. Joining is accomplished through solvent cementing, the standard method for PVC DWV fittings in most jurisdictions. Charlotte Pipe manufactures this fitting in the USA, which satisfies domestic-content requirements on applicable projects.

Key Features

• 45-degree (1/8 bend) change of direction for DWV drain and vent lines
• 4-inch hub x hub end connections for solvent-cement joining
• PVC construction — lightweight, corrosion-resistant, easy to cut
• Rated for non-pressure gravity-fed systems up to 140 degrees F
• Compatible with solvent cementing, threading, flanging, and roll-grooved joining methods
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement and new-construction fitting for 4-inch PVC DWV piping systems in residential and commercial gravity-fed drain, waste, and vent applications.

Installation Notes

Installation is performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Before joining, ensure pipe ends are cut square, deburred, and cleaned prior to applying PVC primer and solvent cement per the cement manufacturer's instructions. Support the fitting and connected piping at intervals required by code to maintain proper drain slope. Do not use this fitting in pressure systems or above the rated temperature limit of 140 degrees F.

Technical Specifications

• Pipe Size: 4 inches
• End Connections: Hub x Hub
• Bend Angle: 45 degrees (1/8 bend)
• Material: PVC
• Application: Drain, Waste, and Vent (DWV) — non-pressure gravity systems
• Maximum Temperature: 140 degrees F
• Country of Origin: USA
• UPC: 611942034048

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-321-4IN
