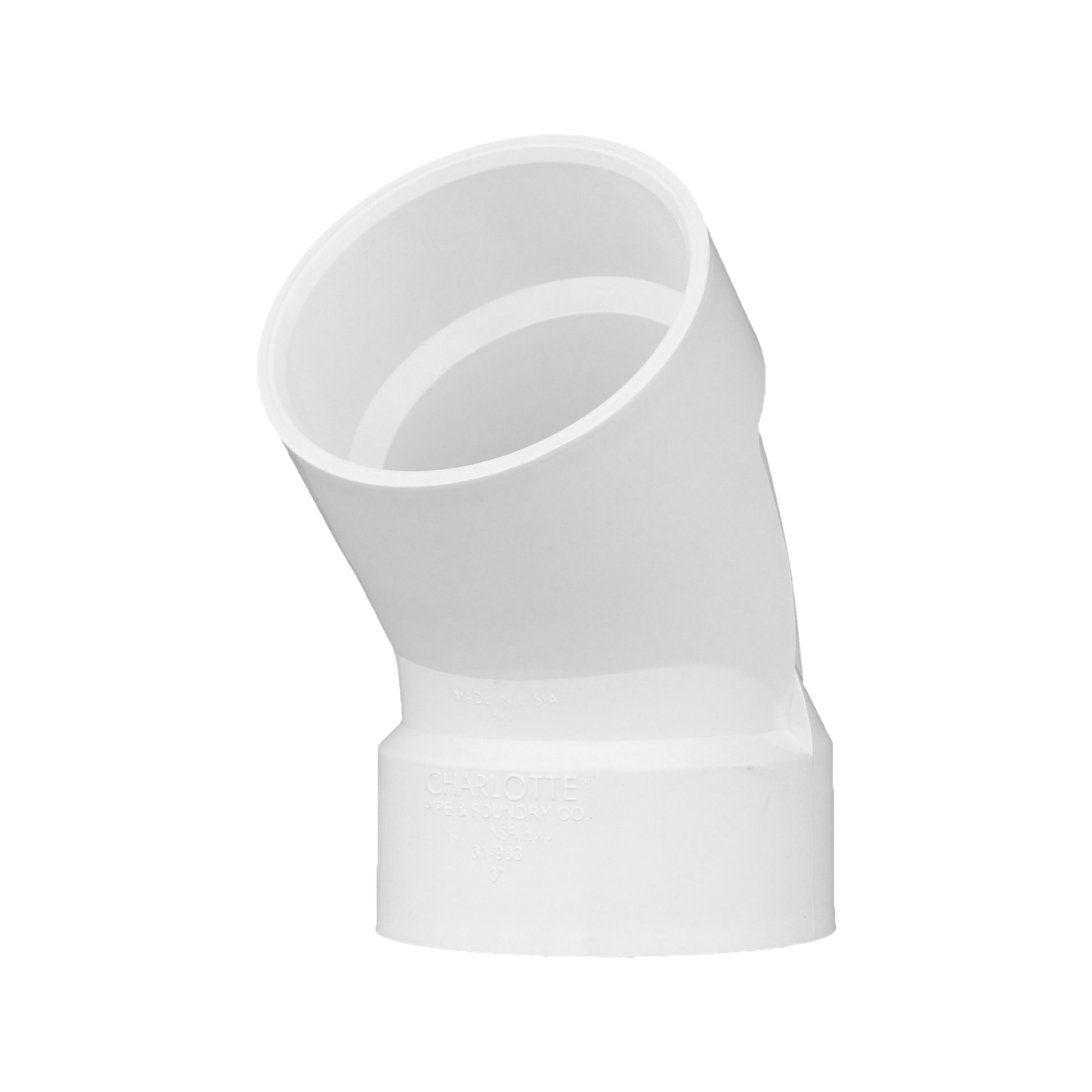

Charlotte Pipe PVC-321-3IN Pvc Dwv 45 Elbow 3 Inch

Product Description

The CHARLOTTE PIPE PVC-321-3IN is a 3-inch PVC DWV 1/8 bend, also known as a 45-degree elbow, joined hub x hub. This fitting is manufactured for drain, waste, and vent applications in non-pressure, gravity-fed waste elimination systems. PVC construction keeps the fitting lightweight and straightforward to cut and join. Maximum service temperature is 140 degrees F. Licensed plumbers and pipefitters install this fitting in residential and light commercial DWV rough-in work using standard solvent cement techniques. No special cutting tools are required.

This fitting is suited for gravity-fed drain, waste, and vent piping where a 45-degree directional change is needed in a 3-inch line. Typical applications include branch offsets in drain stacks, under-slab waste runs, and horizontal drain lines. The hub x hub socket ends accept standard 3-inch PVC DWV pipe on both sides. Charlotte Pipe manufactures this fitting in the USA, which is a common specification requirement on commercial and municipal projects.

Key Features

• 45-degree (1/8 bend) sweep for gradual directional changes in DWV lines
• Hub x hub socket ends compatible with standard solvent cement joining
• Rated for drain, waste, and vent service — non-pressure systems only
• Maximum service temperature of 140 degrees F
• Lightweight PVC construction requires no special cutting tools
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement and standard fitting for 3-inch PVC DWV piping systems operating under gravity-fed, non-pressure conditions.

Installation Notes

Installation is performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off water supply and ensure the drain line is clear and dry before joining. Solvent cement both the pipe end and the hub socket, following the cement manufacturer's open and cure time requirements for the ambient temperature. Do not use this fitting in pressurized water supply or high-temperature systems.

Technical Specifications

• Pipe Size: 3 inches
• Fitting Angle: 45 degrees (1/8 bend)
• End Configuration: Hub x Hub
• Material: PVC
• System Type: DWV (Drain, Waste, Vent) — non-pressure
• Maximum Temperature: 140 degrees F
• Country of Origin: USA
• UPC: 611942034031

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-321-3IN
