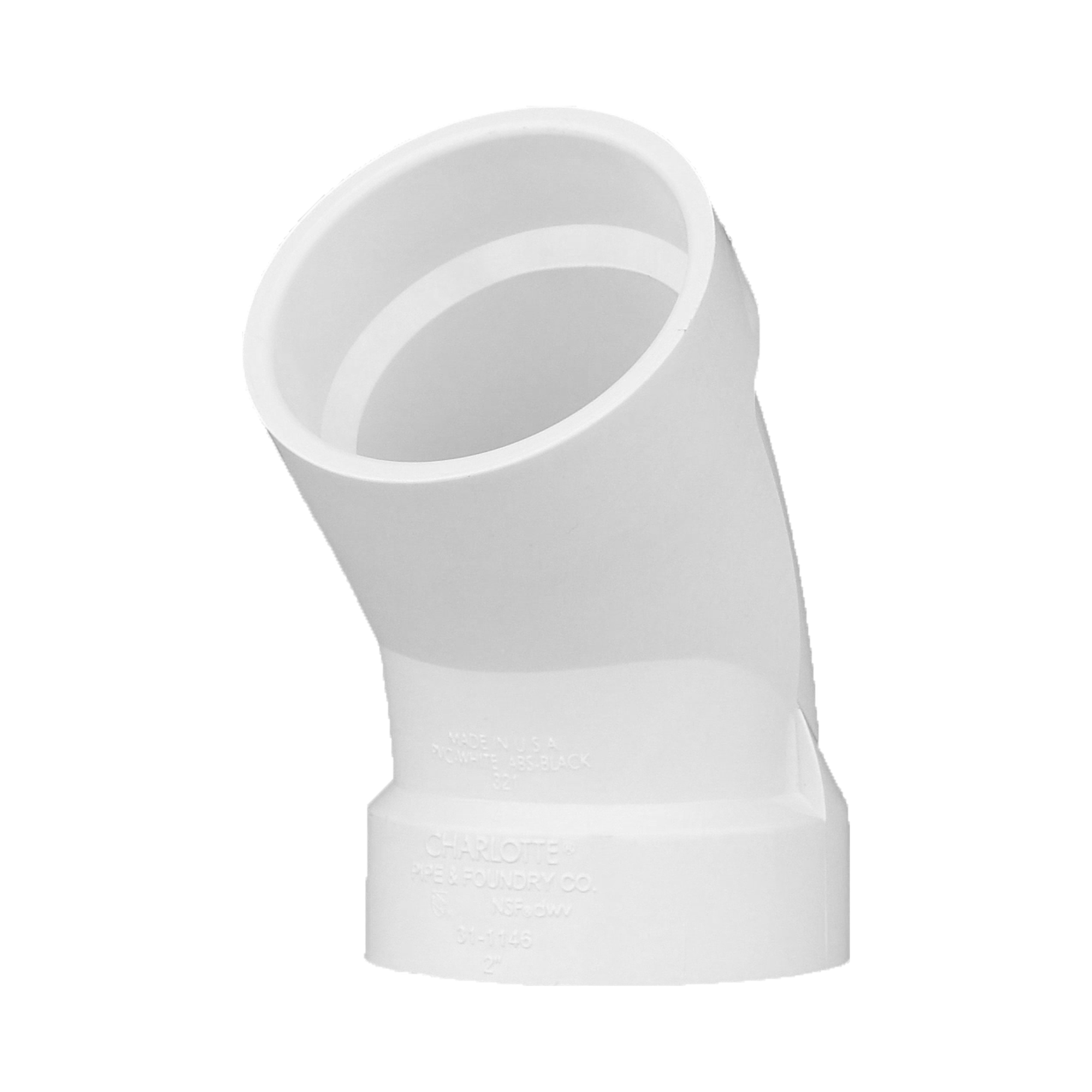

Charlotte Pipe PVC-321-2IN Pvc Dwv 45 Degree Elbow 2 in

Product Description

The CHARLOTTE PIPE PVC-321-2IN is a 2-inch PVC DWV 45-degree elbow (1/8 bend) with hub-by-hub connections, designed for drain, waste, and vent piping systems. This fitting is engineered for gravity-fed, non-pressure applications where operating temperatures will not exceed 140 degrees F. PVC construction keeps the fitting lightweight and straightforward to handle on the job. Licensed plumbers and pipefitters install this elbow using solvent cement joining, making field installation fast without special cutting tools.

This fitting is used in residential and light commercial DWV systems wherever a 45-degree change of direction is required in a drain or vent line. Common install scenarios include under-slab drain runs, in-wall vent stacks, and horizontal drain offsets. The hub-by-hub socket ends accept standard 2-inch PVC DWV pipe and solvent-cement for a leak-free joint. Because this is a non-pressure fitting, it is not rated for pressurized water supply lines.

Key Features

• 45-degree (1/8 bend) change of direction for DWV piping layouts
• Hub x Hub socket ends sized for 2-inch PVC DWV pipe
• Rated for gravity-fed, non-pressure drain, waste, and vent service
• Maximum operating temperature of 140 degrees F
• Solvent cement joining — no special tools required for cutting or assembly
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement fitting for residential and commercial PVC DWV piping systems using 2-inch schedule-rated PVC DWV pipe with hub connections joined by solvent cement.

Installation Notes

Installation is performed by licensed plumbers in accordance with the International Plumbing Code (IPC) or applicable local codes. Shut off water flow and ensure the line is drained before cutting into an existing system. Clean and dry both the pipe end and fitting socket before applying primer and solvent cement per the cement manufacturer's instructions. Do not use this fitting on pressurized water supply lines or in applications where temperatures exceed 140 degrees F.

Technical Specifications

• Material: PVC
• Pipe Size: 2 inches
• End Connections: Hub x Hub
• Bend Angle: 45 degrees (1/8 bend)
• Application: Drain, Waste and Vent (DWV) — non-pressure gravity systems
• Maximum Temperature: 140 degrees F
• Joining Method: Solvent cement
• Country of Origin: USA
• UPC: 611942034024

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-321-2IN
