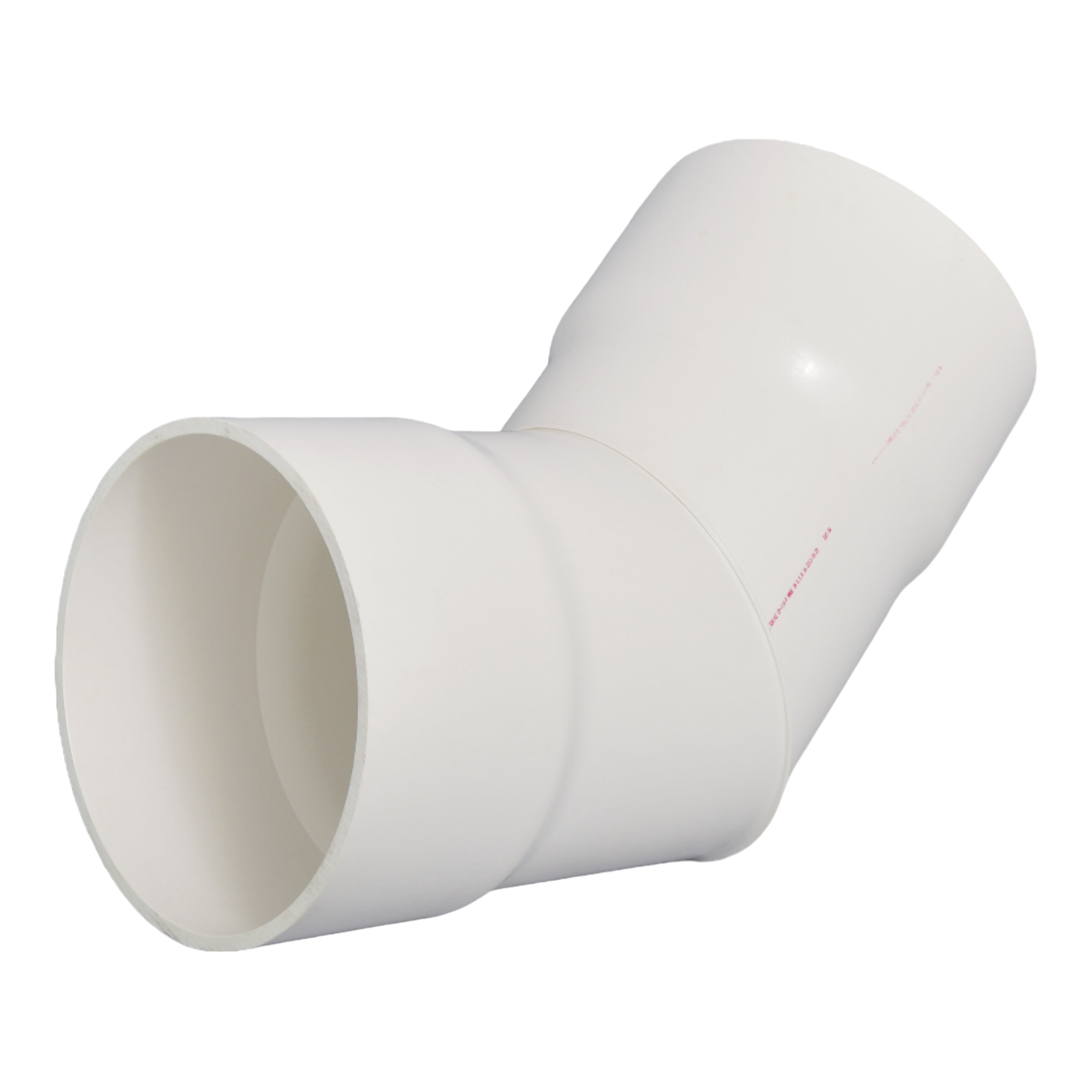

Charlotte Pipe PVC-321-16IN Pvc Dwv 1/8 Bend 45 Elbow 16in

Product Description

The CHARLOTTE PIPE PVC-321-16IN is a 16-inch PVC Schedule 40 DWV 1/8 bend fitting with hub x hub connections, providing a 45-degree change in direction for large-diameter drain, waste, and vent piping systems. Fabricated to meet ASTM F 1866 requirements and listed with NSF, this solvent-weld fitting is designed for licensed plumbers working on commercial or large residential DWV installations. The hub x hub configuration accepts standard solvent cement for a secure, leak-resistant joint. At 16 inches, this is a large-diameter fitting suited for main drain runs and building sewer connections.

This fitting is used in PVC Schedule 40 DWV systems where a 45-degree directional change is required on 16-inch piping. Typical applications include commercial building drain systems, large residential main drain lines, and municipal or industrial DWV configurations. Charlotte Pipe produces this fitting as part of its full-line 4-inch through 16-inch PVC DWV offering, making it a consistent match for other Charlotte Pipe DWV pipe and fittings on the same project.

Key Features

• 45-degree (1/8 bend) directional change for 16-inch DWV piping
• Hub x hub solvent-weld connections for a secure, leak-resistant joint
• Meets ASTM F 1866 fabricated fitting requirements
• NSF listed for drain, waste, and vent service
• Manufactured in the USA by Charlotte Pipe

Compatibility

Designed for use with 16-inch PVC Schedule 40 DWV pipe and fittings. Charlotte Pipe is the exclusive full-line manufacturer of 1.5-inch through 16-inch PVC DWV pipe and fittings, and this fitting is compatible with standard solvent-cement joining methods per ASTM D 2564.

Installation Notes

Installation must be performed by a licensed plumber in accordance with the latest instructions published by Charlotte Pipe and applicable plumbing codes, including the International Plumbing Code (IPC). Shut off all flow and ensure the pipe is clean and dry before applying solvent cement. Use a proper-size applicator for 16-inch hub joints and allow adequate cure time before restoring flow. Follow all local inspection and testing requirements for DWV systems.

Technical Specifications

• Pipe Size: 16 inches
• Material: PVC Schedule 40
• Connection Type: Hub x Hub (solvent weld)
• Fitting Angle: 45 degrees (1/8 bend)
• Application: Drain, Waste, and Vent (DWV)
• Standard: ASTM F 1866
• Listing: NSF listed
• Country of Origin: USA
• UPC: 611942122257

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-321-16IN
