Charlotte Pipe PVC-321-14IN Pvc Dwv 45-degree Elbow 14 in

Product Description

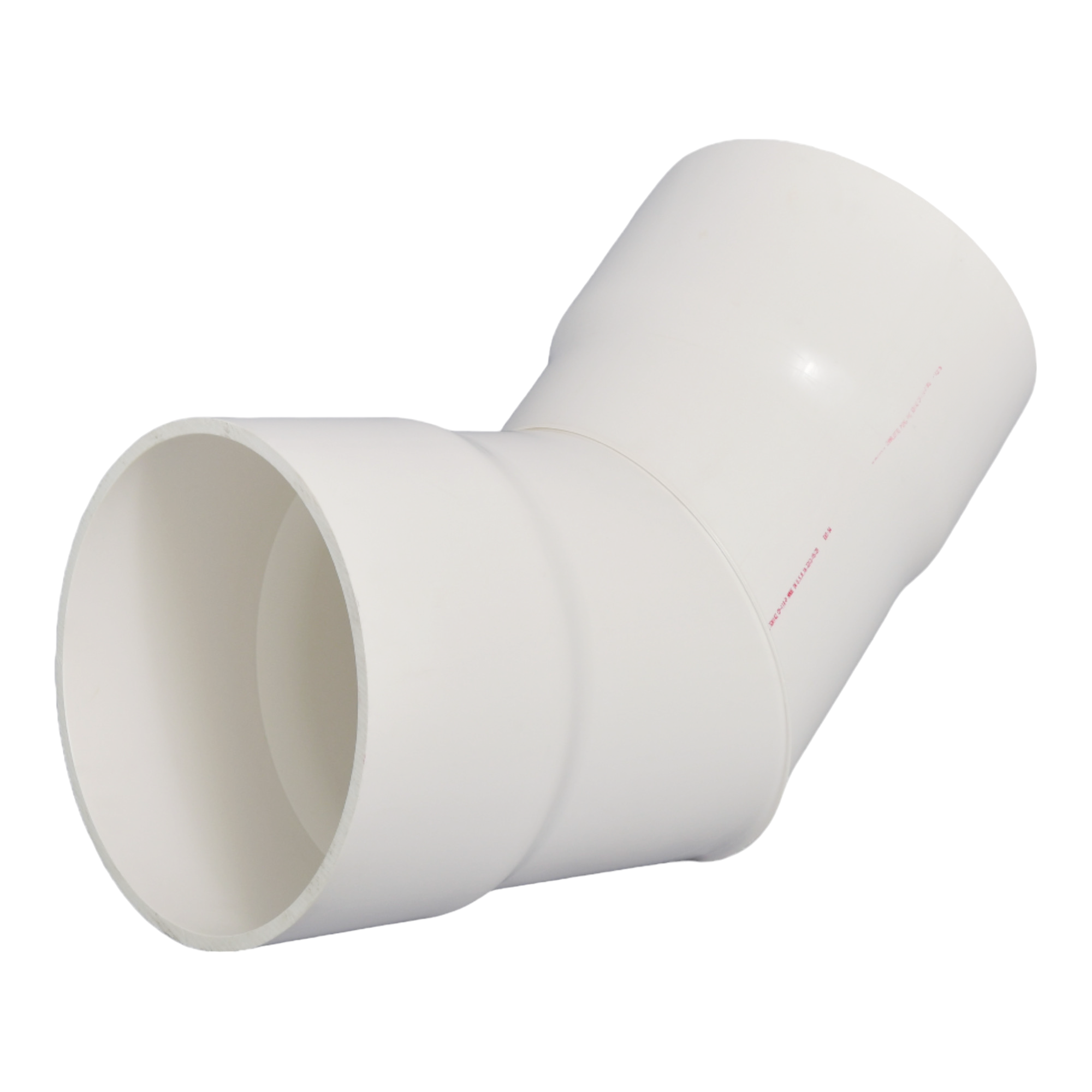

The CHARLOTTE PIPE PVC-321-14IN is a 14-inch PVC Schedule 40 DWV 45-degree elbow fitting with hub x hub solvent weld connections. This fabricated 1/8 bend is designed for drain, waste, and vent piping systems where a 45-degree change in flow direction is required. Built to ASTM F 1866 standards and listed with NSF, this fitting is suited for large-diameter commercial and residential DWV applications. Installation requires solvent cement joining per current Charlotte Pipe published instructions. Licensed plumbers and mechanical contractors are the typical installers for fittings in this size range.

This fitting is used in large-diameter drain, waste, and vent systems installed in commercial buildings, multi-family residential construction, and industrial facilities. At 14 inches, it is a fabricated fitting intended for main drain runs and underground or above-slab DWV configurations. Its 45-degree sweep reduces flow turbulence compared to sharper bends, making it appropriate for high-flow horizontal and vertical drain transitions.

Key Features

• 14-inch PVC Schedule 40 DWV fabricated fitting in a 45-degree (1/8 bend) configuration
• Hub x hub solvent weld end connections for secure, leak-free joints
• Meets ASTM F 1866 fabricated fitting requirements
• NSF listed for drain, waste, and vent applications
• Manufactured in the USA by Charlotte Pipe

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 14-inch PVC Schedule 40 DWV pipe and fittings systems. Charlotte Pipe manufactures PVC DWV pipe and fittings in sizes 1-1/2 inches through 16 inches, making this fitting compatible within that product line.

Installation Notes

Installation must follow the latest instructions published by Charlotte Pipe and applicable plumbing codes such as the IPC or UPC. Shut off and drain the affected piping system before cutting into any existing drain line. Use the correct PVC solvent cement and primer rated for Schedule 40 DWV fittings, and allow proper cure time before restoring flow. Large-diameter fittings of this size typically require two-person handling and adequate pipe support per code during installation.

Technical Specifications

• Size: 14 inches
• Connection Type: Hub x Hub (Solvent Weld)
• Fitting Angle: 45 degrees (1/8 Bend)
• Material: PVC Schedule 40
• Application: DWV (Drain, Waste, Vent)
• Standard: ASTM F 1866
• Listing: NSF Listed
• Country of Origin: USA
• UPC: 611942122240

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-321-14IN
