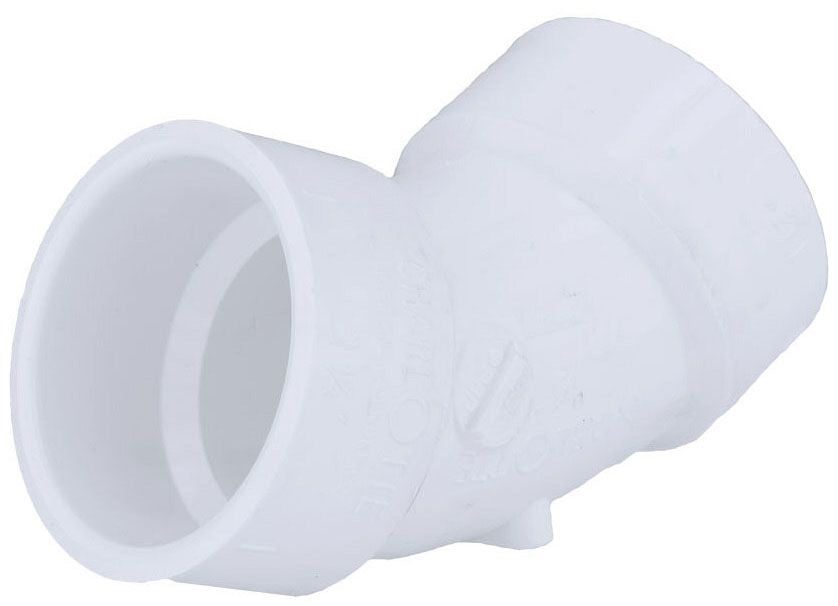

Charlotte Pipe pvc-321-12in Pvc Dwv 1/8 Bend 12 Inch

Product Description

The CHARLOTTE PIPE pvc-321-12in is a Schedule 40 PVC DWV 1/8 bend fitting designed for drain, waste, and vent piping systems. It provides a 45-degree change of direction in gravity-flow drainage lines and is manufactured via injection molding from rigid PVC material rated to 140 degrees F. The hub x hub end connections accept standard Schedule 40 pipe on both ends, making it a straightforward solvent-weld installation. This fitting is sized at 12 inches and carries a wall thickness of 0.406 inches. Licensed plumbers and pipefitters install this type of fitting in residential and light commercial DWV rough-in work.

This 1/8 bend is intended for non-pressure drainage and venting applications involving sewage and certain other liquid waste. It is suited for use in horizontal drain runs, vertical stacks, and branch connections where a 45-degree offset is required. The Schedule 40 wall rating and NSF 14 listing make it appropriate for code-compliant DWV installations in both new construction and renovation projects. Its straight-type configuration provides a clean, gradual directional transition that supports proper flow within gravity drainage systems.

Key Features

• 45-degree 1/8 bend geometry for smooth directional change in DWV runs
• Hub x hub end connections for standard solvent-weld assembly
• Schedule 40 wall construction with 0.406 inch wall thickness
• Rated to 140 degrees F for typical residential and commercial drain service
• NSF 14 listed and meets ASTM D1784, D1785, D2665, D3311, and F1866 material specifications
• Injection-molded PVC for consistent dimensional accuracy

Compatibility

Designed as an OEM-style replacement and new-installation fitting for Schedule 40 PVC DWV piping systems in residential and commercial drain, waste, and vent applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code or applicable local codes. Shut off water supply and ensure the drain line is depressurized and clear before cutting into an existing system. Use an approved PVC primer and solvent cement rated for DWV service; follow the cement manufacturer's cure time before restoring flow. Do not use this fitting in pressure piping or supply lines.

Technical Specifications

• Material: PVC
• Schedule: Schedule 40
• Fitting Type: 1/8 Bend, Straight Type
• Angle: 45 degrees
• End Connection: Hub x Hub
• Size A: 12 inches
• Size B: 12 inches
• Wall Thickness: 0.406 inches
• Temperature Rating: 140 degrees F
• Application: DWV, Non-Pressure, Drainage and Venting of Sewage and Certain Other Liquid Waste
• Manufacturing Process: Injection Molded
• Standards: ASTM D1784, D1785, D2665, D3311, F1866
• Listings: NSF 14, FHA UM 79A, Federal Specification L-P-320A

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: pvc-321-12in
