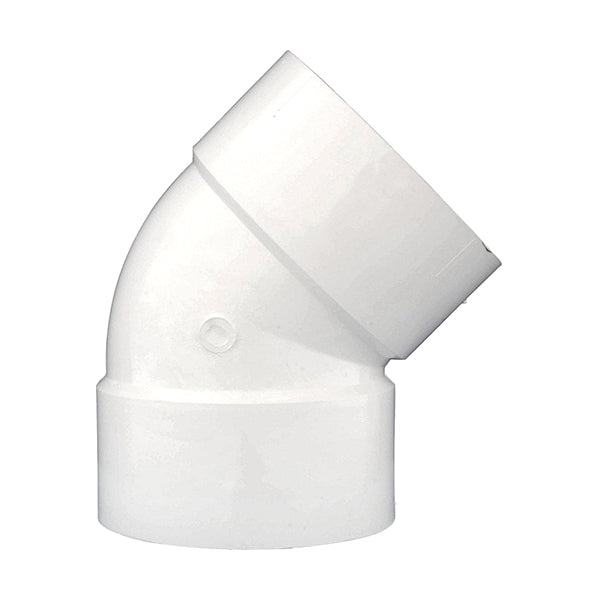

Charlotte Pipe pvc-321-10in Pvc Dwv 45 Deg Elbow 10 in

Product Description

The CHARLOTTE PIPE pvc-321-10in is a 10-inch PVC Schedule 40 DWV 45-degree elbow designed for drain, waste, and vent piping systems in residential and commercial plumbing installations. Manufactured from solid PVC, this fitting delivers high tensile and impact strength along with better sound-deadening performance than Schedule 40 DWV foam core alternatives. Rated at 480 psi, it handles demanding drainage applications without flex or failure. Installation requires primer and solvent cement per standard practice. Licensed plumbers specify this fitting where a reliable, long-lasting 45-degree directional change is needed in large-diameter DWV runs.

This elbow is suited for 10-inch IPS drain, waste, and vent piping in large-scale residential, multi-family, and light commercial plumbing systems. It is commonly installed in main drain stacks, horizontal branch lines, and building drain transitions where gradual directional changes are required. DWV applications must use gradual sloping fittings in accordance with applicable plumbing codes. Sold individually as a single fitting.

Key Features

• Solid PVC Schedule 40 construction for high tensile and impact strength
• 45-degree elbow angle for gradual directional changes in DWV runs
• 480 psi pressure rating for reliable, long-term service
• Better sound-deadening qualities than Schedule 40 DWV foam core PVC
• IPS connection type for compatibility with standard 10-inch PVC pipe
• Solvent-weld joint for a permanent, leak-free connection

Compatibility

Designed as an OEM-style DWV replacement and new-construction fitting for 10-inch IPS Schedule 40 PVC drain, waste, and vent piping systems.

Installation Notes

Installation is performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off water supply and ensure the line is fully drained before cutting into an existing system. Apply an approved PVC primer followed by solvent cement to both the pipe end and fitting socket before joining; hold the connection firmly until the cement sets. For DWV applications, gradual sloping fittings must be used to maintain proper drainage flow.

Technical Specifications

• Material: PVC
• Schedule: Schedule 40
• Fitting Size: 10 inches
• Water Connection Size: 10 inches
• Angle: 45 degrees
• Pressure Rating: 480 psi
• Connection Type: IPS
• Quantity: 1

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: pvc-321-10in
