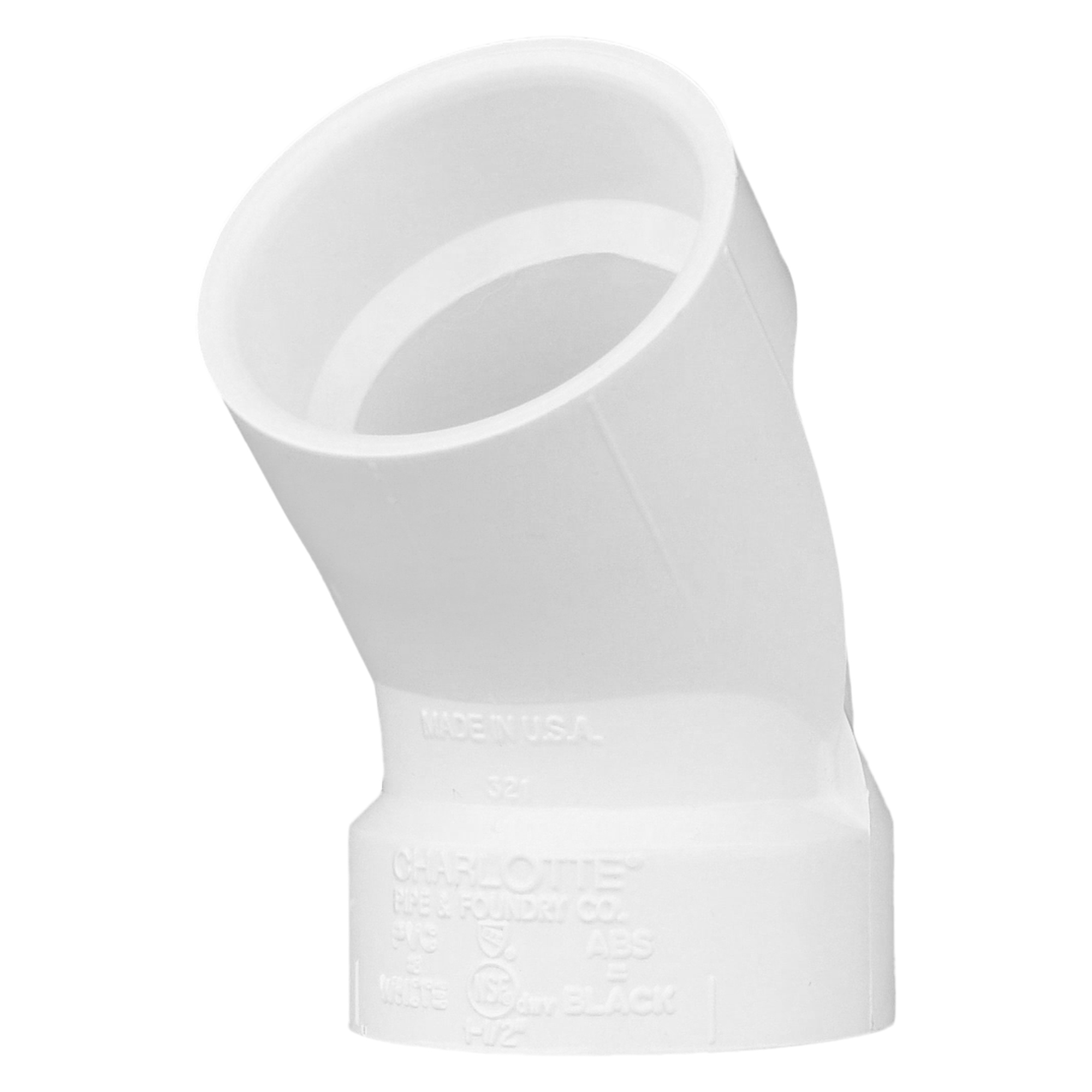

Charlotte Pipe PVC-321-1-1/2 Pvc Dwv 45 Elbow 1-1/2 in

Product Description

The CHARLOTTE PIPE PVC-321-1-1/2 is a 1-1/2 inch PVC DWV 45-degree elbow (1/8 bend) with hub x hub connections, designed for drain, waste, and vent piping systems. This fitting directs flow at a 45-degree angle and is intended for non-pressure, gravity-fed waste elimination applications. PVC construction keeps the fitting lightweight, and no special cutting tools are required for installation. Solvent cementing is the standard joining method, though threading, flanging, and roll-grooved joining are also compatible. Operating temperatures must not exceed 140 degrees F. Licensed plumbers and pipefitters install this fitting in residential and light commercial DWV systems.

This elbow is suited for residential and commercial drain, waste, and vent piping where a 45-degree directional change is needed. It performs in gravity-fed systems only and is not rated for pressurized fluid service. The hub x hub socket ends accept standard 1-1/2 inch PVC pipe and are joined using approved solvent cement. Charlotte Pipe manufactures this fitting in the USA, which supports domestic sourcing requirements on projects where country of origin is specified.

Key Features

• 45-degree (1/8 bend) elbow for directional changes in DWV piping runs
• Hub x hub socket ends sized for 1-1/2 inch PVC pipe
• Compatible with solvent cementing, threading, flanging, and roll-grooved joining methods
• Rated for non-pressure, gravity-fed drain, waste, and vent service only
• Maximum service temperature of 140 degrees F
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement and standard fitting for 1-1/2 inch PVC DWV piping systems in non-pressure, gravity-fed drain, waste, and vent applications.

Installation Notes

Installation is performed by a licensed plumber following applicable plumbing codes, including the IPC and local amendments. De-burr and clean pipe ends before applying solvent cement, and allow full cure time per cement manufacturer instructions before pressurizing or testing the line. This fitting is rated for DWV service only and must not be installed in pressurized water supply systems. Confirm all hub connections are fully seated before cement sets.

Technical Specifications

• Material: PVC
• Pipe Size: 1-1/2 inches
• End Connection: Hub x Hub
• Fitting Type: 45-Degree Elbow (1/8 Bend)
• Application: Drain, Waste, and Vent (DWV)
• System Type: Non-pressure, gravity-fed
• Maximum Temperature: 140 degrees F
• UPC: 611942034017
• Country of Origin: USA

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-321-1-1/2
