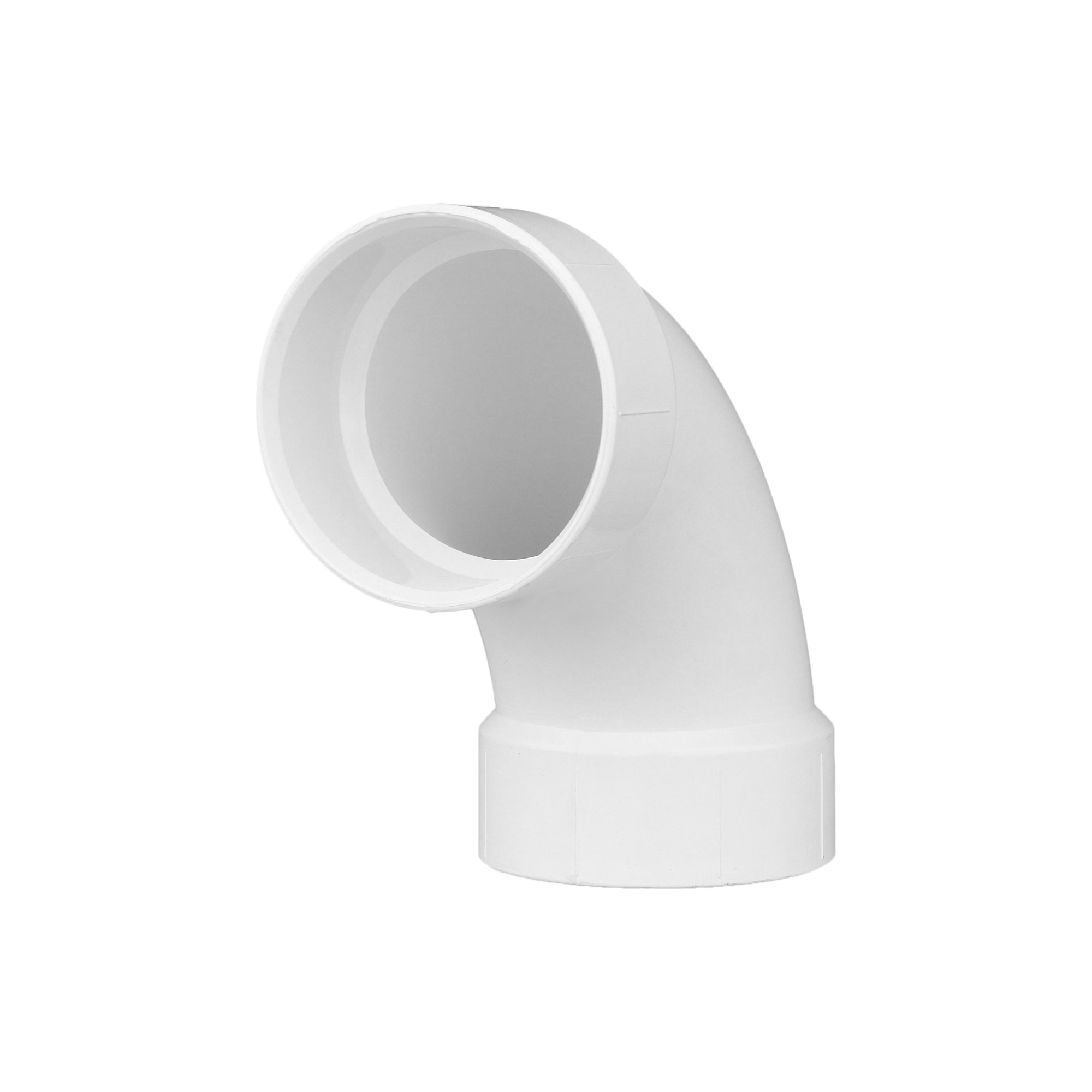

Charlotte Pipe PVC-304-4IN Pvc Dwv Long Sweep 90 Elbow 4 in

Product Description

The CHARLOTTE PIPE PVC-304-4IN is a 4-inch PVC DWV long sweep 90-degree elbow designed for drain, waste, and vent piping systems. This fitting is engineered for gravity-fed waste elimination in non-pressure applications where operating temperatures do not exceed 140 degrees F. The long sweep geometry reduces flow restriction through the turn compared to standard elbows, making it a common choice in horizontal-to-vertical drain transitions. Licensed plumbers and pipefitters install this fitting using standard PVC solvent cement — no special cutting tools required. The lightweight PVC construction simplifies handling and positioning in tight spaces during rough-in work.

This fitting is suited for residential and commercial drain, waste, and vent installations where a smooth directional change is needed in a gravity-flow drainage system. Typical applications include branch drain lines, soil stacks, and DWV rough-in assemblies. Because it is a non-pressure fitting, it is not rated for pressurized supply lines or systems exceeding 140 degrees F. All Charlotte Pipe DWV fittings are manufactured in the USA, supporting compliance documentation for projects requiring domestic-origin materials.

Key Features

• Long sweep 90-degree bend reduces turbulence and flow restriction in drain lines
• Rated for non-pressure drain, waste, and vent service up to 140 degrees F
• Compatible with solvent cementing, threading, flanging, and roll-grooved joining methods
• Lightweight PVC construction requires no special cutting tools for field fabrication
• Manufactured in the USA by Charlotte Pipe

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 4-inch PVC DWV piping systems in gravity-fed drain, waste, and vent applications. Also referenced under part numbers K057170, 4807LT4, D304-040, and 304.

Installation Notes

Installation is performed by licensed plumbers in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off water supply and ensure the line is drained before cutting into an existing system. Use approved PVC primer and solvent cement per ASTM standards, allowing full cure time before pressurizing or flowing the line. Do not use this fitting in pressurized supply applications or where service temperatures exceed 140 degrees F.

Technical Specifications

• Pipe Size: 4 inches
• Material: PVC
• Fitting Type: Long Sweep 90-Degree Elbow (1/4 Bend)
• System Type: DWV (Drain, Waste, Vent) — Non-Pressure
• Maximum Temperature: 140 degrees F
• Joining Method: Solvent Cement, Threaded, Flanged, Roll-Grooved
• Country of Origin: USA
• UPC: 611942033812

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-304-4IN
