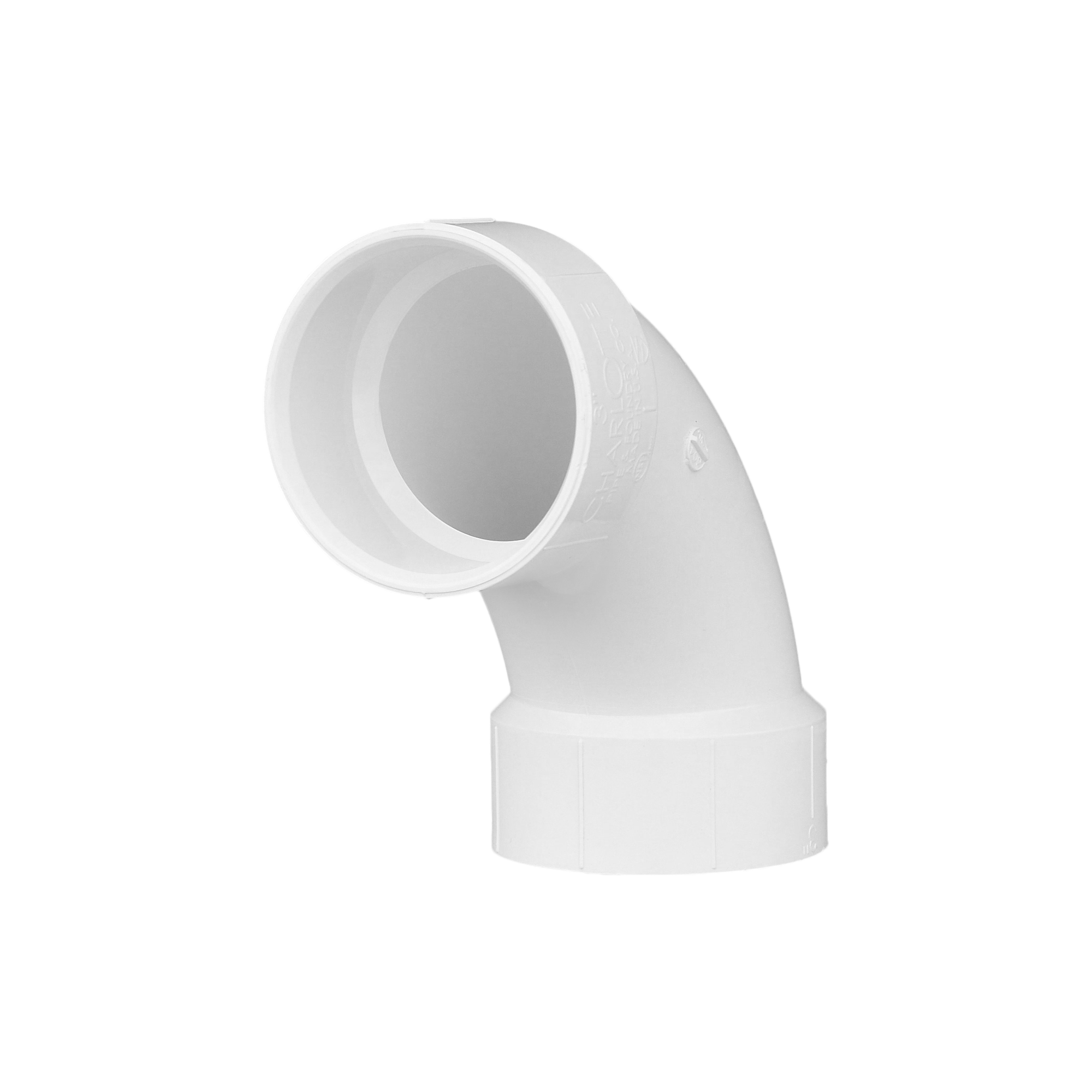

Charlotte Pipe PVC-304-3IN 3 Inch Pvc Dwv Long Sweep 90 Elbow

Product Description

The CHARLOTTE PIPE PVC-304-3IN is a 3-inch PVC long sweep quarter-bend elbow designed for drain, waste, and vent (DWV) applications. This fitting is engineered for gravity-fed, non-pressure waste elimination systems where operating temperatures do not exceed 140 degrees F. The long sweep geometry reduces flow restriction compared to short-radius elbows, making it a practical choice for horizontal drain runs and branch connections. Licensed plumbers and pipe fitters install this fitting using standard solvent cement joining. PVC construction keeps the fitting lightweight and easy to handle during rough-in work.

This fitting is suited for residential and light commercial drain, waste, and vent piping systems. It is not rated for pressure service or for applications where sustained temperatures exceed 140 degrees F. The long sweep design is commonly specified on horizontal-to-horizontal or vertical-to-horizontal transitions where maintaining adequate drain slope and flow velocity is a priority. Solvent cement joining is the standard method, though threading, flanging, and roll-grooved joining are also supported connection options for applicable configurations.

Key Features

• 3-inch PVC DWV long sweep 90-degree elbow for gravity-fed drain, waste, and vent systems
• Long sweep radius reduces turbulence and flow resistance compared to standard quarter-bend fittings
• Compatible with solvent cement, threaded, flanged, and roll-grooved joining methods
• Rated for non-pressure systems up to 140 degrees F
• Lightweight PVC construction requires no special cutting tools
• Manufactured in the USA by Charlotte Pipe

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 3-inch PVC DWV non-pressure drain, waste, and vent piping systems.

Installation Notes

Installation is performed by licensed plumbers in accordance with the International Plumbing Code (IPC) and applicable local codes. Before beginning work, isolate the affected drain line and confirm the system is not under pressure. Solvent cement joints require proper surface preparation including cleaning and priming per the cement manufacturer's instructions and applicable code. Do not use this fitting in pressure piping systems or where sustained temperatures will exceed 140 degrees F.

Technical Specifications

• Pipe Size: 3 inches
• Material: PVC
• System Type: DWV (Drain, Waste, Vent) Non-Pressure
• Max Temperature: 140 degrees F
• Joining Methods: Solvent cement, threaded, flanged, roll-grooved
• Country of Origin: USA
• UPC: 611942033805

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-304-3IN
