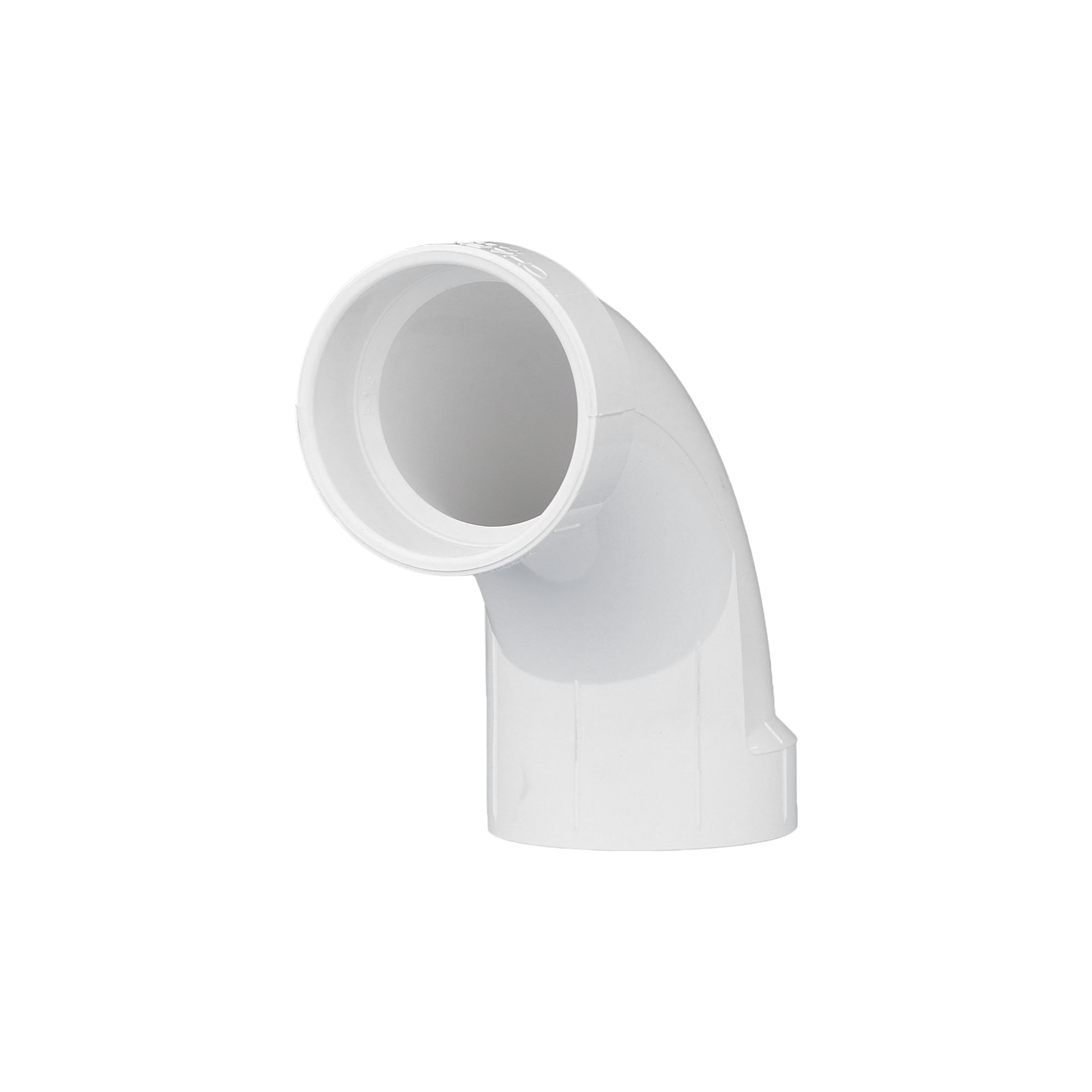

Charlotte Pipe PVC-304-2IN Pvc Dwv Long Sweep 90 Elbow 2in

Product Description

The CHARLOTTE PIPE PVC-304-2IN is a 2-inch PVC DWV long sweep 90-degree elbow designed for drain, waste, and vent piping systems. This fitting is engineered for gravity-fed, non-pressure applications where operating temperatures will not exceed 140 degrees F. The long sweep radius reduces flow restriction compared to standard elbows, making it well suited for horizontal drain runs where smooth, unobstructed flow matters. PVC construction keeps the fitting lightweight and straightforward to handle on the job. Licensed plumbers and experienced pipefitters are the typical installers for this type of DWV component.

This fitting is used in residential and light commercial drain, waste, and vent systems. It is appropriate wherever a 2-inch line requires a gradual 90-degree change of direction, such as under-slab drain runs, wall stacks, and horizontal branch connections. Because it is a non-pressure DWV fitting, it is not rated for pressurized supply lines. All Charlotte Pipe products are manufactured in the USA, which supports traceability and consistent quality for code-required inspections.

Key Features

• Long sweep radius reduces turbulence and buildup in horizontal drain runs
• Rated for non-pressure DWV applications up to 140 degrees F
• Compatible with solvent cement joining — no special cutting tools required
• Also supports threading, flanging, and roll-grooved joining methods
• Lightweight PVC construction simplifies handling and installation
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 2-inch PVC DWV piping systems in residential and light commercial drain, waste, and vent applications.

Installation Notes

Installation of DWV fittings should be performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off water supply and verify the line is depressurized and drained before cutting into an existing system. When solvent cementing, use a PVC primer and cement rated for DWV pipe and fittings, and allow full cure time before restoring flow. Do not use this fitting in pressurized supply or hydronic systems.

Technical Specifications

• Pipe Size: 2 inches
• Material: PVC
• System Type: DWV (Drain, Waste, Vent)
• Fitting Type: Long Sweep 90-Degree Elbow
• Application: Non-pressure gravity-fed systems
• Max Temperature: 140 degrees F
• Country of Origin: USA
• UPC: 611942033799

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-304-2IN
