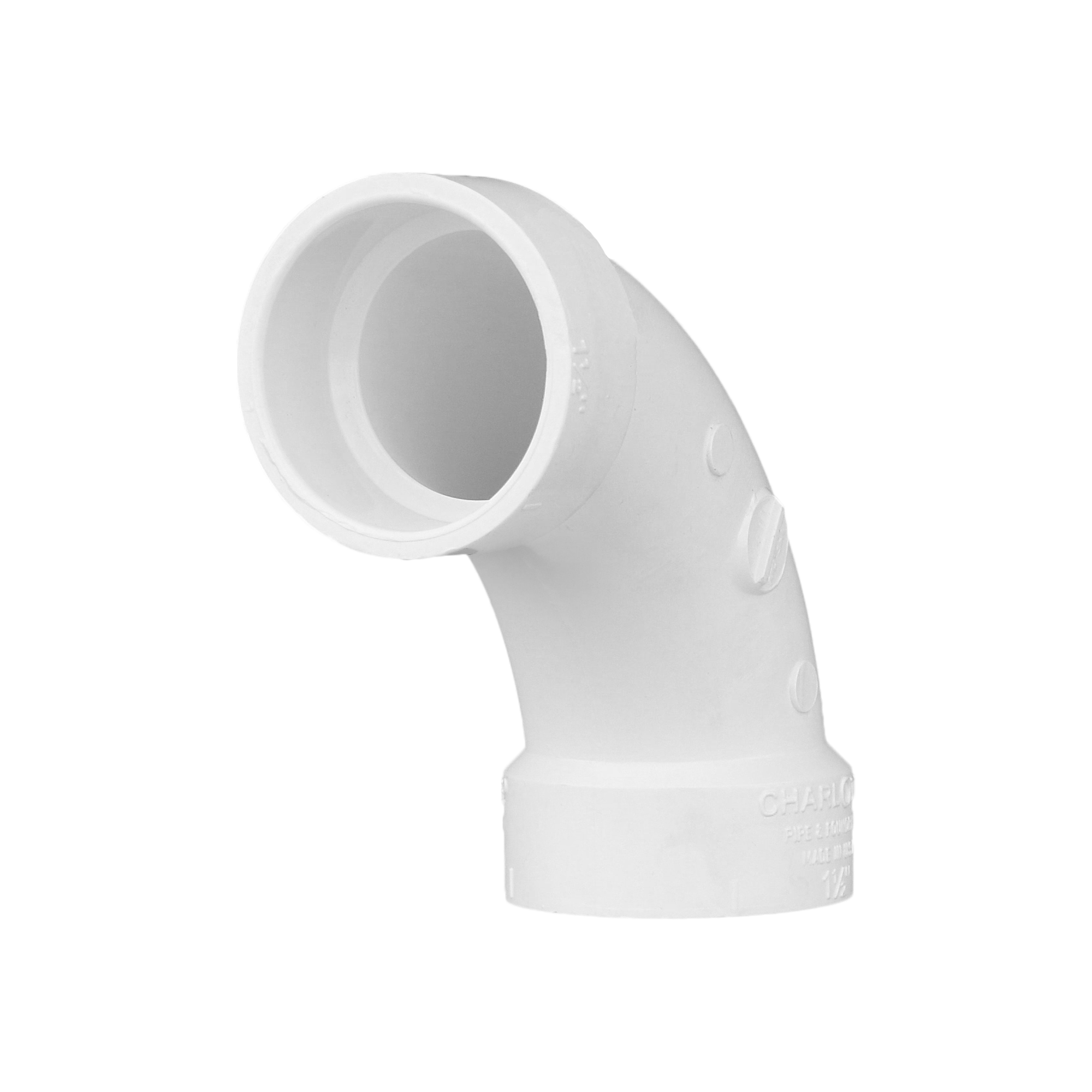

Charlotte Pipe PVC-304-1-1/2 Pvc Dwv Long Sweep 90 Elbow

Product Description

The CHARLOTTE PIPE PVC-304-1-1/2 is a 1-1/2 inch PVC long sweep 1/4 bend fitting designed for drain, waste, and vent (DWV) applications. It provides a 90-degree directional change in gravity-fed drainage piping while the long-sweep geometry maintains flow velocity and reduces clogging risk compared to short-pattern elbows. This fitting is manufactured for non-pressure DWV systems and is rated for service in systems where temperatures will not exceed 140 degrees F. Plumbers and pipe fitters install this type of fitting in residential and light commercial drain and vent rough-in work.

This fitting is used in gravity-fed waste elimination systems, including drain, waste, and vent piping in residential and commercial construction. Its long-sweep radius makes it well-suited for horizontal-to-vertical or offset drain runs where maintaining drainage flow is critical. It is not rated for pressure piping applications. Manufactured in the USA by Charlotte Pipe, it meets standard requirements for PVC DWV fittings used in plumbing rough-in installations.

Key Features

• Long-sweep 90-degree bend supports better flow characteristics in gravity-drain systems compared to short-pattern elbows
• Rated for non-pressure DWV service up to 140 degrees F
• Lightweight PVC construction simplifies handling and installation
• Compatible with solvent cement joining — no special cutting tools required
• Also accepts threading, flanging, and roll-grooved joining methods
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-1/2 inch PVC DWV piping systems in residential and light commercial drain, waste, and vent applications.

Installation Notes

Installation is typically performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and verify the system is depressurized before making connections. Use a compatible PVC DWV solvent cement and primer following the manufacturer's instructions and allow full cure time before placing the system back in service. This fitting is not rated for pressure systems and must not be used in pressure piping applications.

Technical Specifications

• Pipe Size: 1-1/2 inches
• Material: PVC
• Fitting Type: Long Sweep 1/4 Bend 90 Degree Elbow
• System Type: DWV (Drain, Waste, Vent) — Non-Pressure
• Maximum Temperature Rating: 140 degrees F
• Joining Methods: Solvent Cement, Threading, Flanging, Roll-Grooved
• Country of Origin: USA
• UPC: 611942033782

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-304-1-1/2
