Charlotte Pipe PVC-303-3X3X2 Pvc Dwv 1/4 Bend Heel Inlet

Product Description

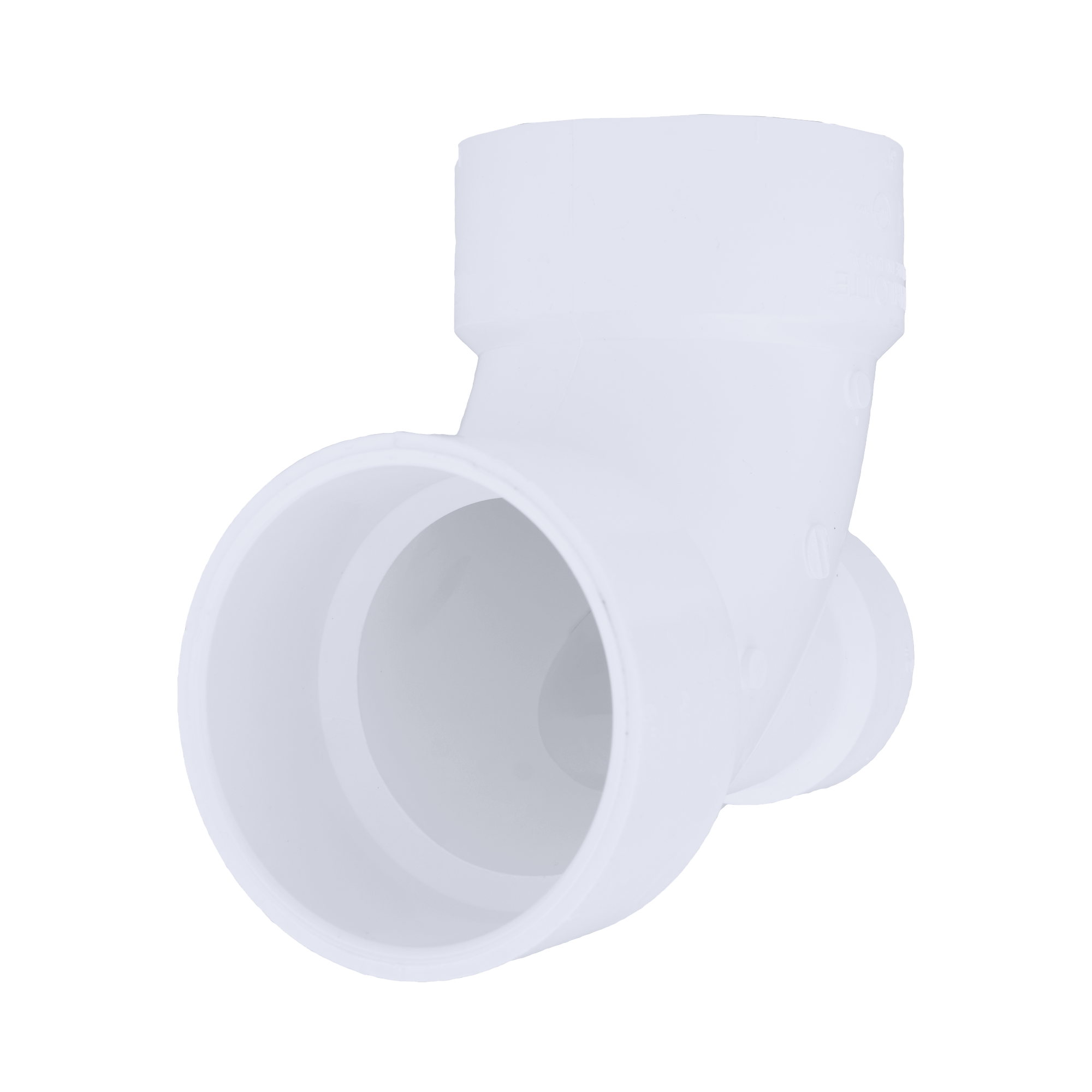

The CHARLOTTE PIPE PVC-303-3X3X2 is a PVC DWV 1/4 bend 90-degree elbow with a low-heel inlet, sized at 3 inches x 3 inches x 2 inches. It is designed for drain, waste, and vent applications in gravity-fed, non-pressure piping systems. The heel inlet allows a secondary branch connection at the base of the bend, making it useful in tight-space drainage configurations. PVC construction keeps the fitting lightweight and easy to handle on the job. Rated for systems where temperatures will not exceed 140 degrees F, it is suited for standard residential and commercial DWV installations. Licensed plumbers and pipefitters are the primary installers for this type of fitting.

This fitting is used in gravity-fed waste elimination systems where no pressure rating is required. Common applications include residential drain lines, stack connections, and vent piping in new construction and remodel work. The 2-inch heel inlet accepts a branch line while the 3-inch run maintains full flow capacity through the 90-degree turn. Charlotte Pipe manufactures this fitting in the USA, consistent with their full PVC DWV product line.

Key Features

• Low-heel inlet allows a 2-inch branch connection at the base of the 90-degree bend
• 3 inches x 3 inches x 2 inches configuration for main run and branch sizing flexibility
• Rated for non-pressure DWV systems up to 140 degrees F
• Compatible with solvent cement, threading, flanging, and roll-grooved joining methods
• Lightweight PVC construction requires no special cutting tools
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement and new-installation fitting for residential and commercial PVC DWV piping systems operating as gravity-fed, non-pressure drain, waste, and vent applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off water supply and confirm the system is depressurized before beginning work. Solvent cement joining is the most common connection method for PVC DWV fittings — follow manufacturer cure time requirements before restoring flow. Do not use this fitting in pressurized supply lines or in systems where operating temperatures exceed 140 degrees F.

Technical Specifications

• Material: PVC
• System Type: DWV (Drain, Waste, Vent) — non-pressure gravity-fed
• Fitting Type: 1/4 Bend 90-Degree Elbow with Low-Heel Inlet
• Inlet Size (Run): 3 inches x 3 inches
• Heel Inlet Size: 2 inches
• Maximum Temperature Rating: 140 degrees F
• Joining Methods: Solvent cement, threading, flanging, roll-grooved
• Country of Origin: USA
• UPC: 611942033768

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-303-3X3X2
