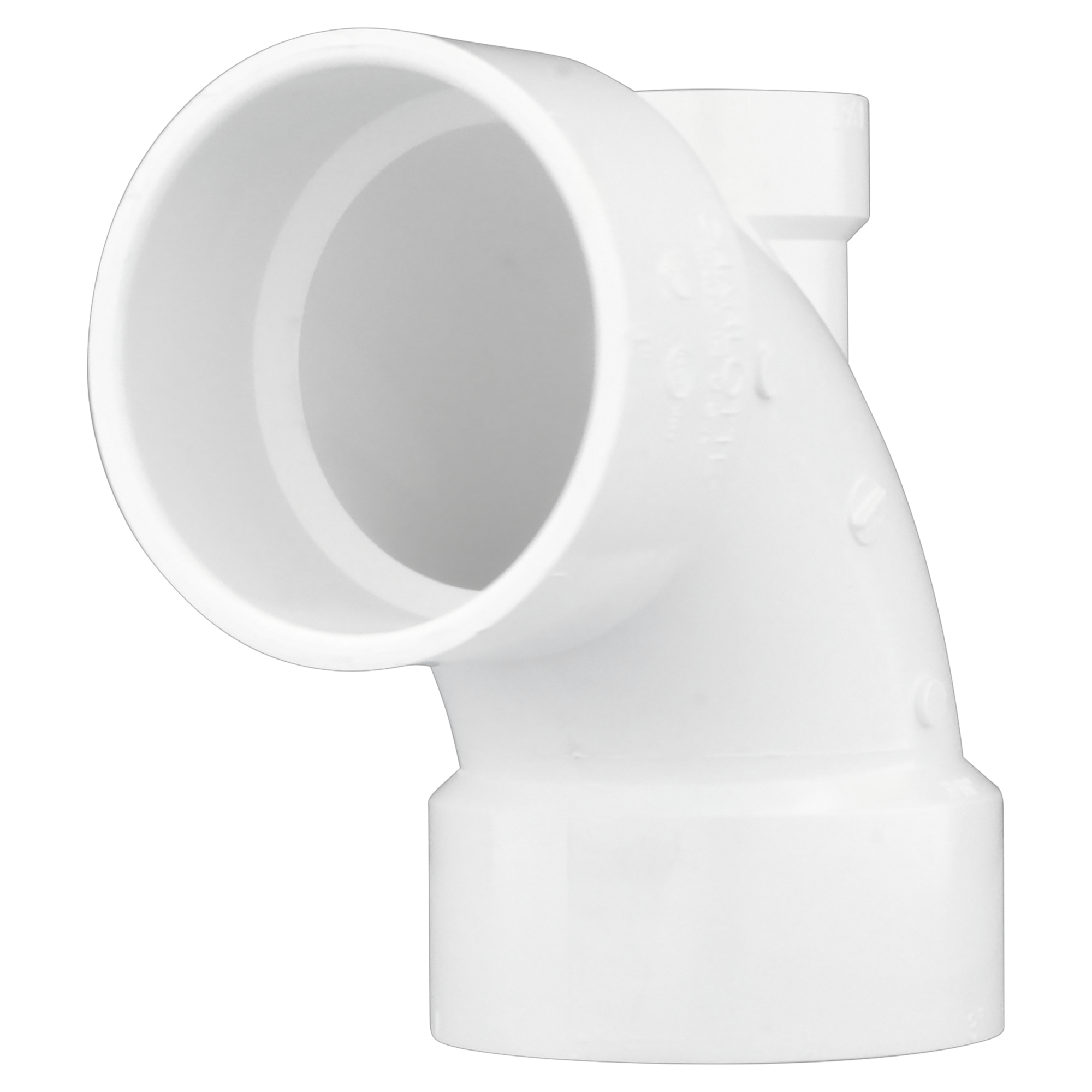

Charlotte Pipe PVC-303-3X3X1-1/2 Pvc Dwv 1/4 Bend 90 Elbow

Product Description

The CHARLOTTE PIPE PVC-303-3X3X1-1/2 is a PVC DWV 1/4 bend 90-degree elbow with a heel inlet, sized at 3 inches x 3 inches x 1-1/2 inches. This fitting is designed for drain, waste, and vent systems operating under gravity-fed, non-pressure conditions. It handles flow direction changes of 90 degrees while the heel inlet allows a smaller branch line to tie in at the low point of the bend. Licensed plumbers install this fitting in residential and light commercial DWV rough-in work. PVC construction keeps the fitting lightweight and easy to handle on the job site.

This fitting is used in gravity-fed waste elimination systems where operating temperatures will not exceed 140 degrees F. The heel inlet configuration makes it a practical choice when a secondary drain line must connect at the base of a 90-degree turn, a common scenario in bathroom rough-in and wet-wall assemblies. It is not rated for pressure service. Charlotte Pipe manufactures this fitting in the USA.

Key Features

• 1/4 bend 90-degree elbow with integrated heel inlet for branch line connections
• Three-port sizing: 3 inches x 3 inches x 1-1/2 inches for flexible drain rough-in layouts
• Rated for non-pressure DWV service up to 140 degrees F
• Compatible with solvent cement, threading, flanging, and roll-grooved joining methods
• Lightweight PVC construction requires no special cutting tools
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement and standard-fit component for residential and light commercial PVC DWV piping systems in non-pressure drain, waste, and vent applications.

Installation Notes

This fitting is installed by licensed plumbers in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off water supply and verify the system is depressurized before beginning work. Solvent cement joining is the most common method — follow the cement and primer manufacturer's application instructions for cure time before restoring flow. Do not use this fitting in pressure piping or systems where temperatures exceed 140 degrees F.

Technical Specifications

• Inlet Size: 3 inches x 3 inches x 1-1/2 inches
• Fitting Type: 1/4 Bend 90-Degree Elbow with Heel Inlet
• System Type: DWV (Drain, Waste, Vent) — Non-Pressure
• Maximum Temperature: 140 degrees F
• Material: PVC
• Joining Methods: Solvent Cement, Threading, Flanging, Roll-Grooved
• Country of Origin: USA
• UPC: 611942033751

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-303-3X3X1-1/2
